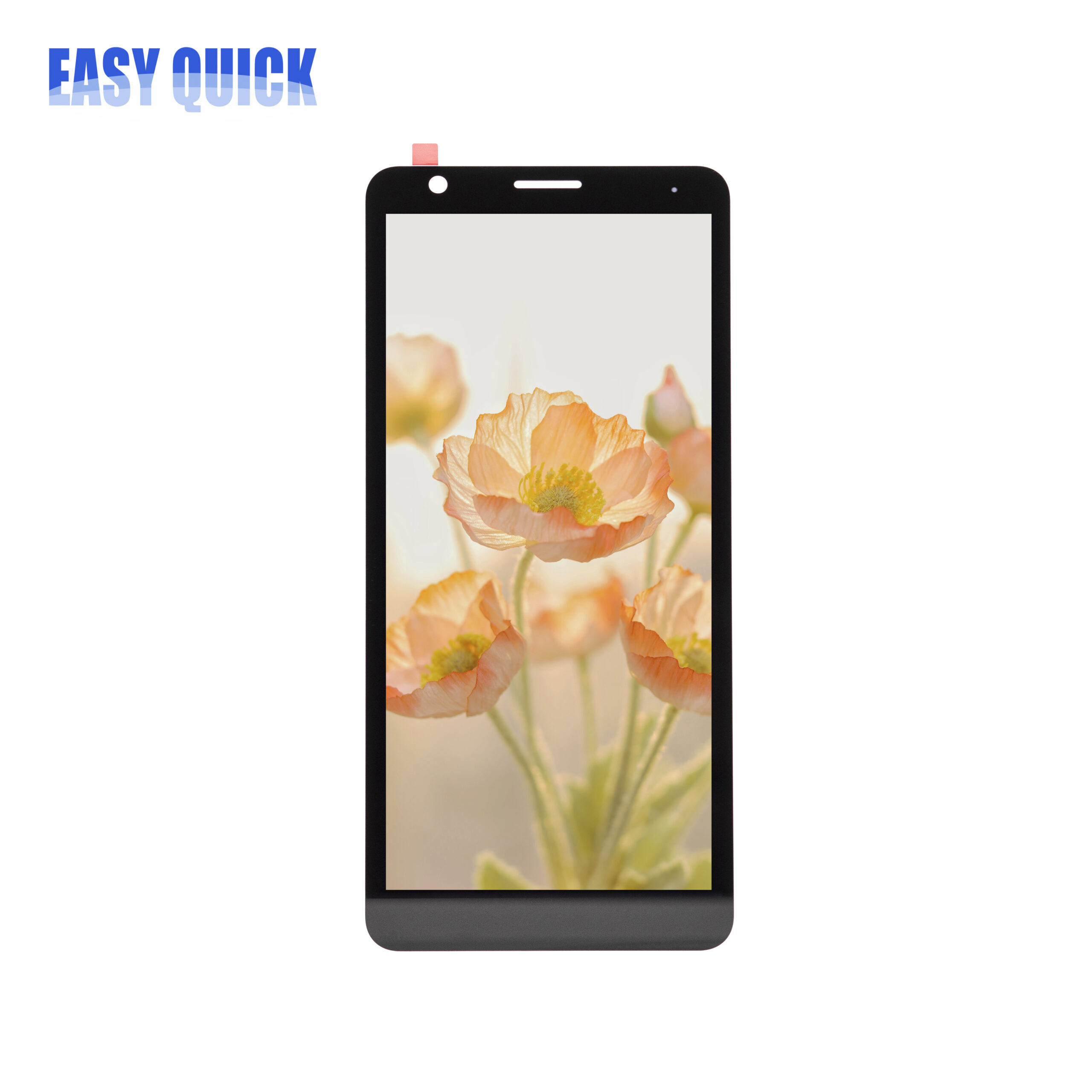

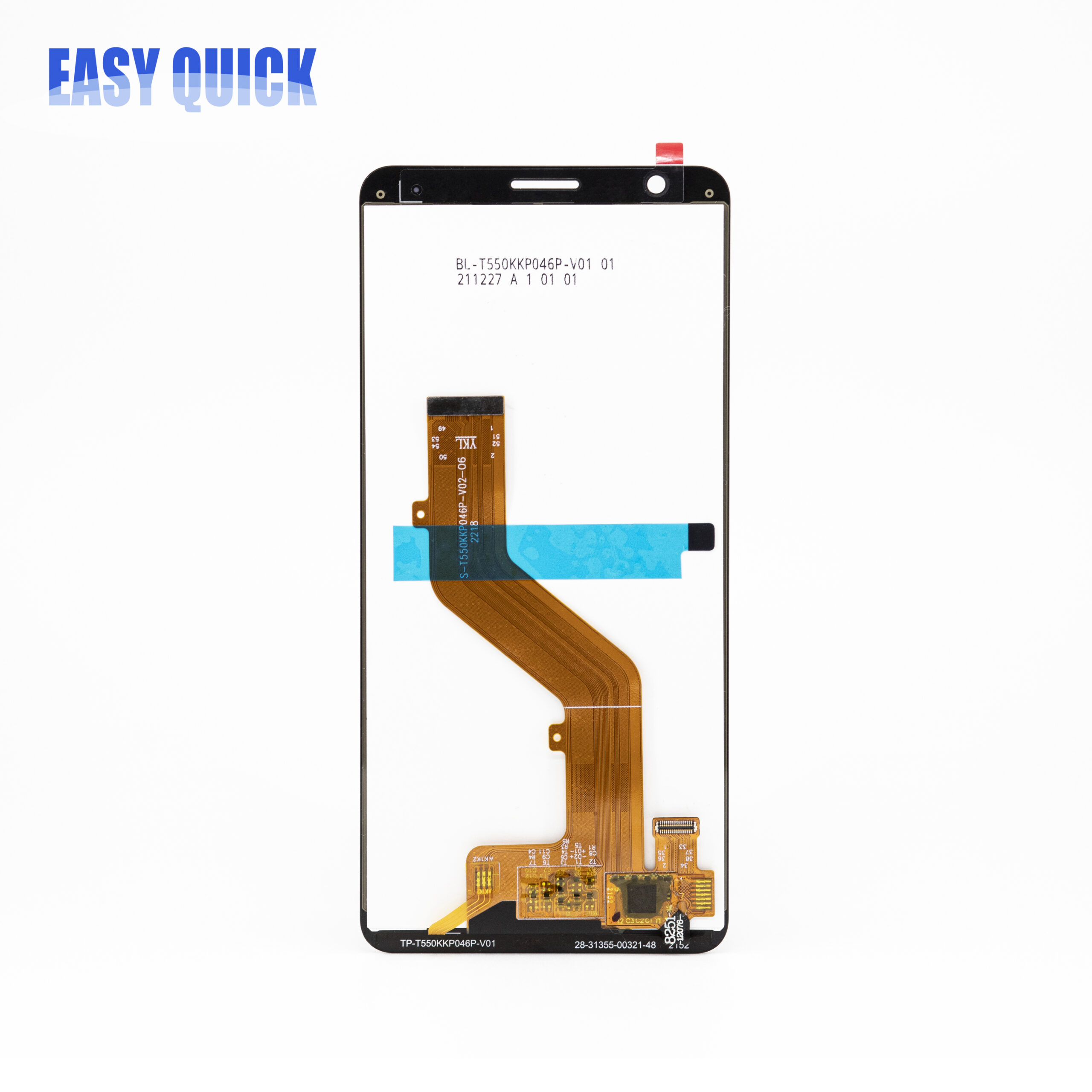

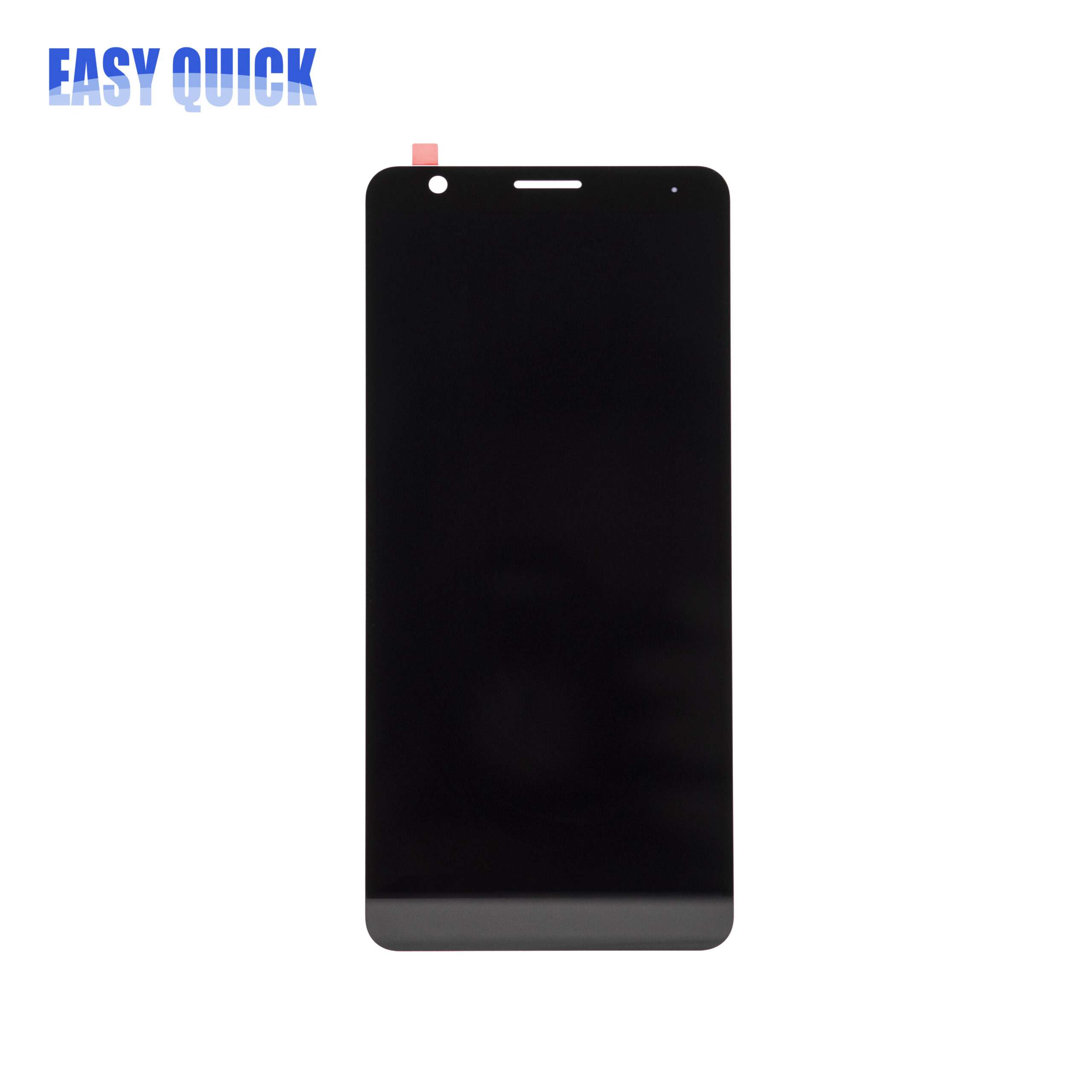

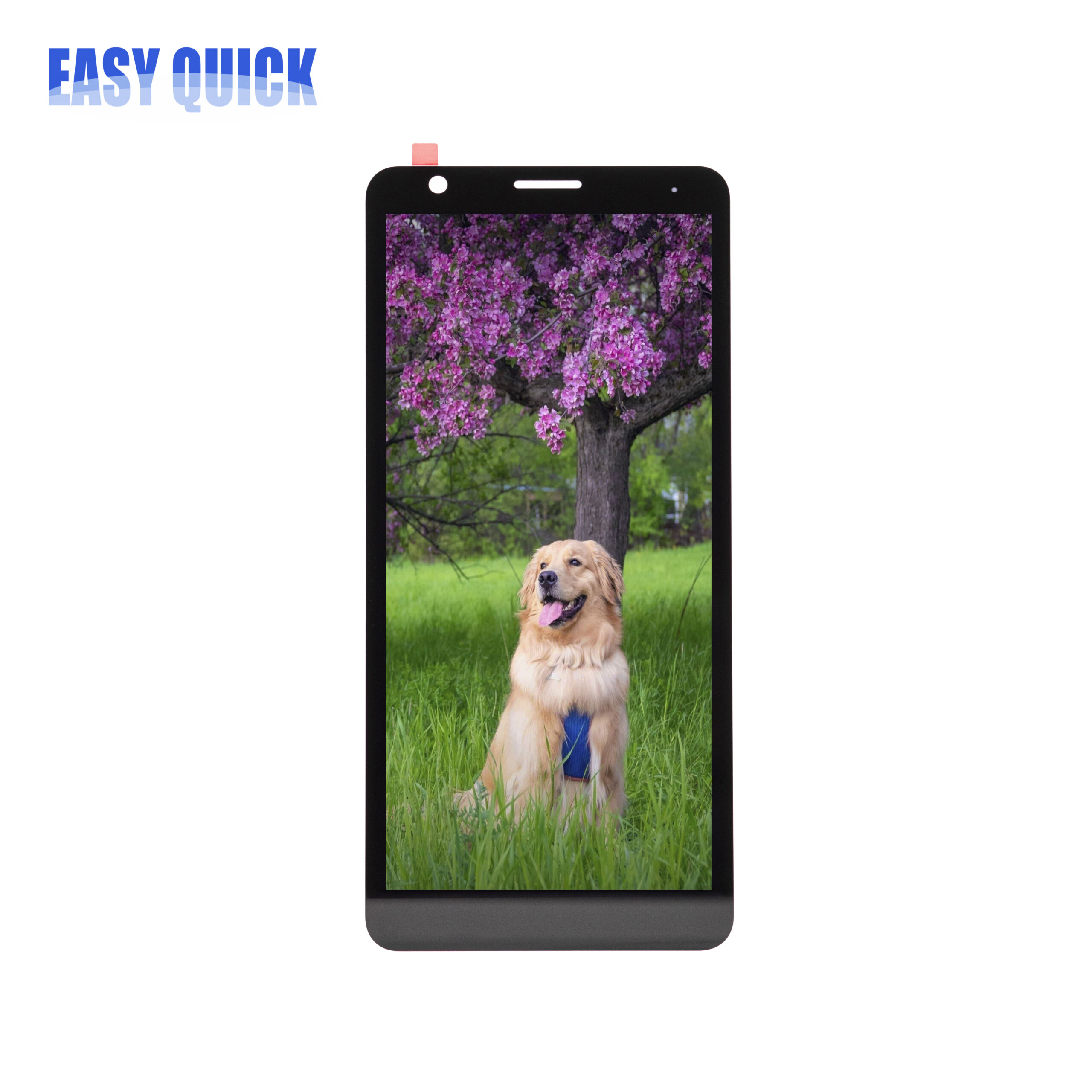

5.5 Inch TFT LCD Display 720×1440 HD Screen Module for Smartphone & Handheld Devices
The 5.5 inch TFT LCD display features a 720×1440 high-resolution screen with clear, vibrant colors and stable performance. With its compact size and wide viewing angles, this LCD module is ideal for mid-sized consumer electronics, ensuring smooth image display and reliable touch integration. The panel is designed for energy efficiency, durability, and compatibility with various customized applications.
Share：
Smartphones and feature phones
Handheld terminals and PDA devices
Smart home control panels
Portable medical equipment
Industrial handheld instruments
Consumer electronics with mid-size displays
| Spec | Item | Specifications | Unit |
| Part No. | EQT550KKJ058P | – | |
| Size | 5.5 | inch | |
| Resolution | 720×1440 | – | |
| Viewing Angle | Full | – | |
| Active Area | 123.77(H)×61.88(V) | mm | |
| Outline Dimension(mm) | 70.30(W)×14139(H)×2.92(D） | mm | |
| Driver IC | JD9365 | – | |
| Touch Function | Without | – | |
| Brightness(Cd/m2) | 400 | Cd/m2 | |
| Interface | MIPI | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
