6-Inch TFT LCD Display | High-Brightness Screen for Smart eBike Dashboards
This 5-inch / 5.5-inch horizontal TFT LCD display is designed specifically for next-generation eBike dashboards. With high-resolution output, wide aspect ratio, and vivid color reproduction, it provides intuitive and easy-to-read visual feedback for speed, battery level, navigation, and ride modes. The panel features excellent sunlight readability, robust mechanical design, and wide operating temperature range, making it suitable for outdoor and rugged mobility environments. Optional touch integration and waterproof sealing support enhanced interactivity and durability.
Share：
- Smart eBike instrument clusters
- Electric scooter and moped displays
- Light electric vehicle (LEV) control interfaces
- Urban shared mobility dashboards
- Outdoor fitness bike computers
- Motorcycle-style ride dashboards
- Multi-function riding computers with touch support
- Industrial or consumer-grade e-Mobility solutions
| Item | Specifications |
| TFT Specifications | 6-inch 480 * 960 |
| operation temperature | -20-80 ℃ |
| Brightness(Cd/m2) | 1000 |
| Active Area(mm) | 136.68(H)×68.64(V) |

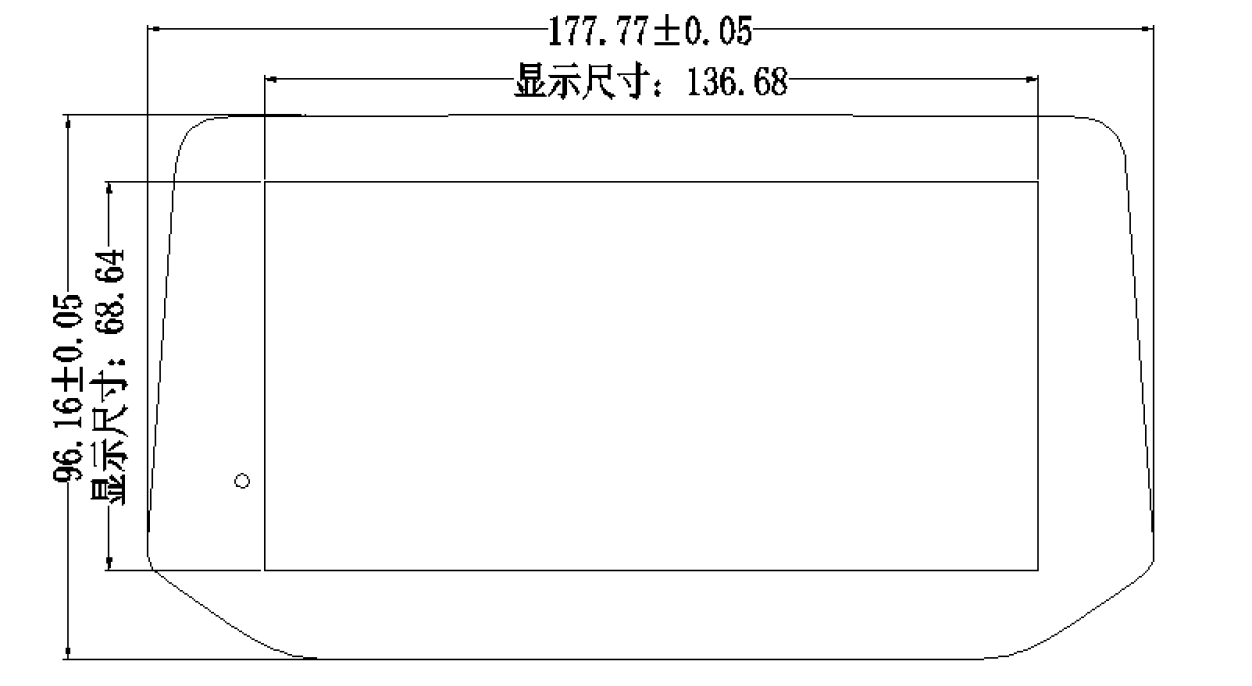

| Outline Dimension(mm) | 177.77(H)×96.16(V) |
| cover glass | High alumina silicon glass integrated black effect, AF treatment (optional) |
| Driver IC | AC7926A |
| interface | CAN/485 |
| information display | Startup animation, speed, mileage, battery level, gear, time, vehicle malfunction information display, etc |
| Button combination (optional) | UI theme switching, secondary settings menu sliding， Telephone answering |
| hardware | Light sensing: automatic headlights, automatic day night mode Bluetooth: Bluetooth easy navigation, Bluetooth music, SMS reminder speaker: built-in speaker (optional) |
| upgrade | Bluetooth, whole vehicle OTA |
| Waterproof grade | IP67 |
| Application Products | E-bike |
