4.3-Inch 480×272 LCD Display for Industrial and Automotive Applications
Share：

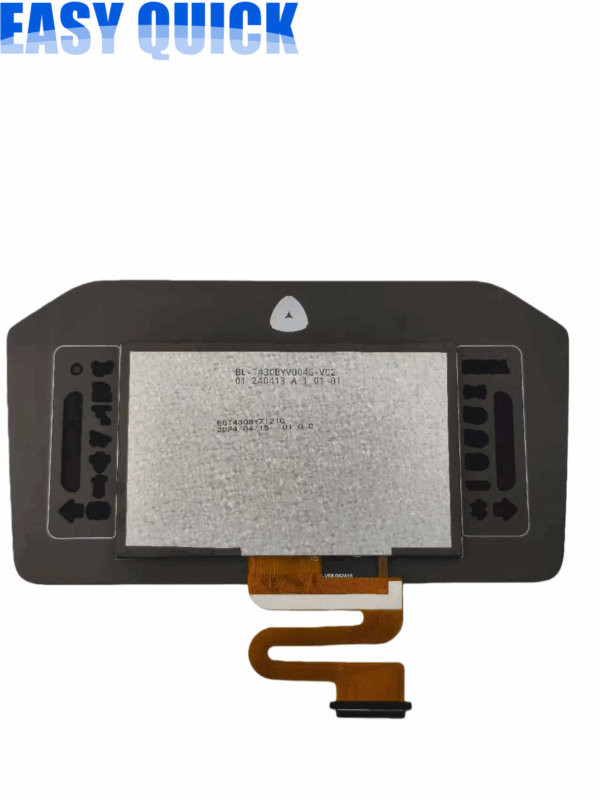

4.3 Inch 480×272 TFT LCD Display Module – Industrial & Automotive Grade
This 4.3 inch 480×272 TFT LCD display module is designed for industrial and automotive applications, featuring high brightness, stable performance, and a 24-bit RGB interface. It supports a 40-pin FPC connection and operates reliably in wide temperature environments from -20 °C to +70 °C. Ideal for HMI systems, instrumentation, and vehicle displays, it can be customized with touch panels, interfaces, and backlight options to meet specific project requirements.
Overall Advantage

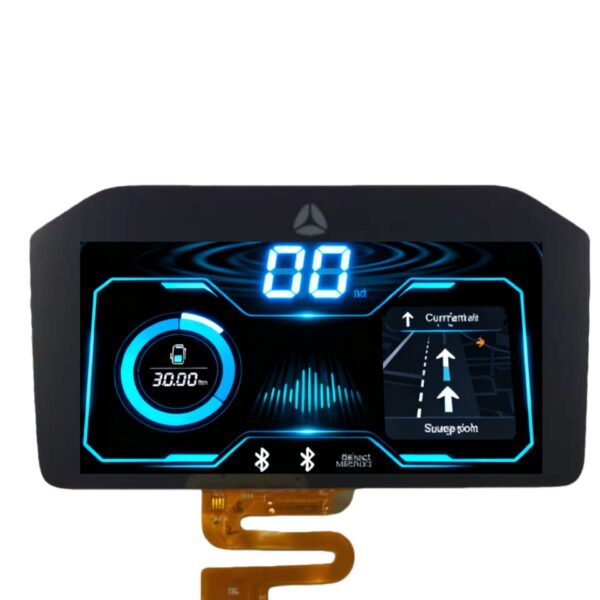

The 4.3 inch 480×272 TFT LCD display module is a compact, high-performance display solution designed for E-bike dashboards, combining durability, high visibility, and smooth data presentation under all riding conditions.
Detailed Features：
- Optimized for E-bike Displays– Ideal size and resolution (480×272 pixels) for showing speed, battery level, mileage, and riding modes with clarity and precision.
- Excellent Outdoor Readability– High brightness and wide viewing angles ensure clear visibility under direct sunlight, perfect for outdoor riding environments.
- Reliable in Harsh Conditions– Built for stability and long lifespan, operating reliably from -20 °C to +70 °C, resistant to vibration, moisture, and temperature fluctuations.
- Low Power Consumption– Engineered for energy efficiency, supporting extended E-bike battery life while maintaining excellent display performance.
- Easy System Integration– Supports 24-bit RGB interface and 40-pin FPC connection, making it compatible with common E-bike control boards and embedded systems.
- Customizable Options– Optional touch panel, brightness level, interface type, and backlight design can be customized to fit different E-bike models or control system requirements.
Application：
- Industrial control panels
- Automotive dashboards and displays
- POS terminals and kiosks
- Smart home or building control systems
- Rugged handheld terminals
Case Study: Yadea E-bike Display Application
Client: Yadea – Leading Electric Bike Manufacturer
Project Overview:
Yadea required a reliable and high-visibility display solution for its new generation of E-bike dashboards. The display needed to clearly present riding data such as speed, battery status, gear mode, and mileage under various outdoor lighting and weather conditions.
Solution:
EasyQuick provided the 4.3 inch 480×272 TFT LCD display module, customized for E-bike applications. The module was designed with:
- High brightness for excellent sunlight readability,
- Wide operating temperature range (-20 °C to +70 °C) for outdoor durability,
- Low power consumption to extend battery life, and
- Stable RGB interface for seamless connection with Yadea’s control board.
Results:
After integration and testing, the display performed with high stability, quick response, and clear visual performance. Yadea adopted this module in several of its E-bike models, providing users with a more intelligent and user-friendly riding experience.
Performance Description
- Excellent Stability
The 4.3 inch 480×272 TFT LCD display module is built with industrial-grade components to ensure long-term operational stability. It performs reliably under continuous operation and withstands vibrations and environmental stress common in E-bike and outdoor applications. The module maintains consistent image quality even after prolonged use, minimizing display flicker and failure rates. - Strong Compatibility
This display supports a 24-bit RGB interface and a standard 40-pin FPC connector, ensuring seamless compatibility with most E-bike control boards, HMI systems, and embedded processors. Its versatile interface design allows for easy integration into both new and existing product architectures, reducing development time and engineering cost. - Low Power Consumption
Energy efficiency is a key advantage of this display. It is optimized for low power consumption to help extend the battery life of E-bikes and portable devices. The LED backlight is engineered for high luminous efficiency, balancing brightness and power usage for maximum performance with minimal energy waste. - Outstanding Display Performance
Equipped with a 480×272 pixel resolution and advanced TFT technology, this module delivers sharp images, vivid colors, and excellent contrast. Its high brightness and wide viewing angles make it ideal for outdoor readability, ensuring all key riding data remains clear even in direct sunlight or dim environments.
Quality and Certification
- ISO 9001 Certified Manufacturing– Ensures standardized production and rigorous quality management.
- RoHS Compliance– Environmentally friendly materials, free from hazardous substances.
- Comprehensive Testing– Each panel undergoes extensive inspection, including brightness uniformity, color accuracy, and durability tests.
| Spec | Item | Specifications | Unit |
| Part No. | EQT430BYZ121G | – | |
| Size | 4.3 | inch | |
| Resolution | 480×272 | – | |
| Viewing Angle | Full | – | |
| Active Area | 95.04(H)×53.86(V) | ||
| Outline Dimension(mm) | 177.77(W)×96.16(H)×4.00(D) | ||
| Driver IC | ST7282 | – | |
| Touch Function | CTP | – | |
| Brightness(Cd/m2) | 650 | Cd/m2 | |
| Interface | MIPI | – | |
| Storage Temp. | －30 TO 80 | ℃ | |
| Operation Temp. | －20 TO 75 | ℃ |
Optional Models and Customization Support
EasyQuick offers a range of 4.3 inch 480×272 LCD display modules to meet different project requirements. Multiple configurations are available in terms of brightness level, touch type, and interface options, ensuring flexibility for various application scenarios.
Optional Models:
- Standard Model:3 inch TFT LCD with 480×272 resolution, 24-bit RGB interface.
- High Brightness Model: Enhanced luminance for outdoor or sunlight-readable applications.
- Touch Version: Available in resistive or capacitive touch panels for user-interactive devices.
- Wide Temperature Model: Extended operating range (-30 °C to +80 °C) for extreme environments.
Customization Support:
We provide full customization service to meet specific design or performance needs:
- Interface type (RGB, SPI, MCU, LVDS, MIPI, etc.)
- Touch panel type and structure
- Brightness and backlight design
- Cover glass and mechanical dimensions
- Logo printing or FPC design adjustments
With EasyQuick’s flexible customization capability and strict quality control, customers can achieve the perfect balance between cost, performance, and functionality for their E-bike display system or other embedded applications.
FAQ
Q1: What is the packaging method for LCD panel?
A1: blister tray + protective bag
Q2: What is the lead time for delivery?
A2: The typical lead time is 3–5 weeks, depending on order quantity and customization requirements.
Q3: What is the minimum order quantity (MOQ)?
A3: The MOQ for standard models is 1000 units. For customized solutions, MOQ may vary based on specific design and production needs.
