3.95 Inch TFT LCD Display 480×480 | High-Resolution Square Display for Smart Terminals & Industrial Interfaces
Share：
Main Applications of the 3.95 Inch TFT LCD
- Smart Terminals: AI translators, portable payment systems, and interactive kiosks
- Medical Devices: Digital microscopes, patient monitoring terminals, and compact diagnostic screens
- Industrial HMI Panels: Operator interfaces in machinery, robotics control panels, and production line terminals
- Smart Home & Building Automation: Wall-mounted smart control hubs, digital intercoms, and energy management screens
- Security Equipment: Facial recognition terminals, biometric scanners, and visitor management devices
- Retail & Vending Interfaces: Smart vending machine UIs, self-checkout touchscreens, and compact digital signage
- Automotive Systems: Center stack displays, smart dashboard clusters, and infotainment widgets
- Wearable or Handheld Equipment: High-end smartwatches, outdoor handheld computers, and ruggedized field gear

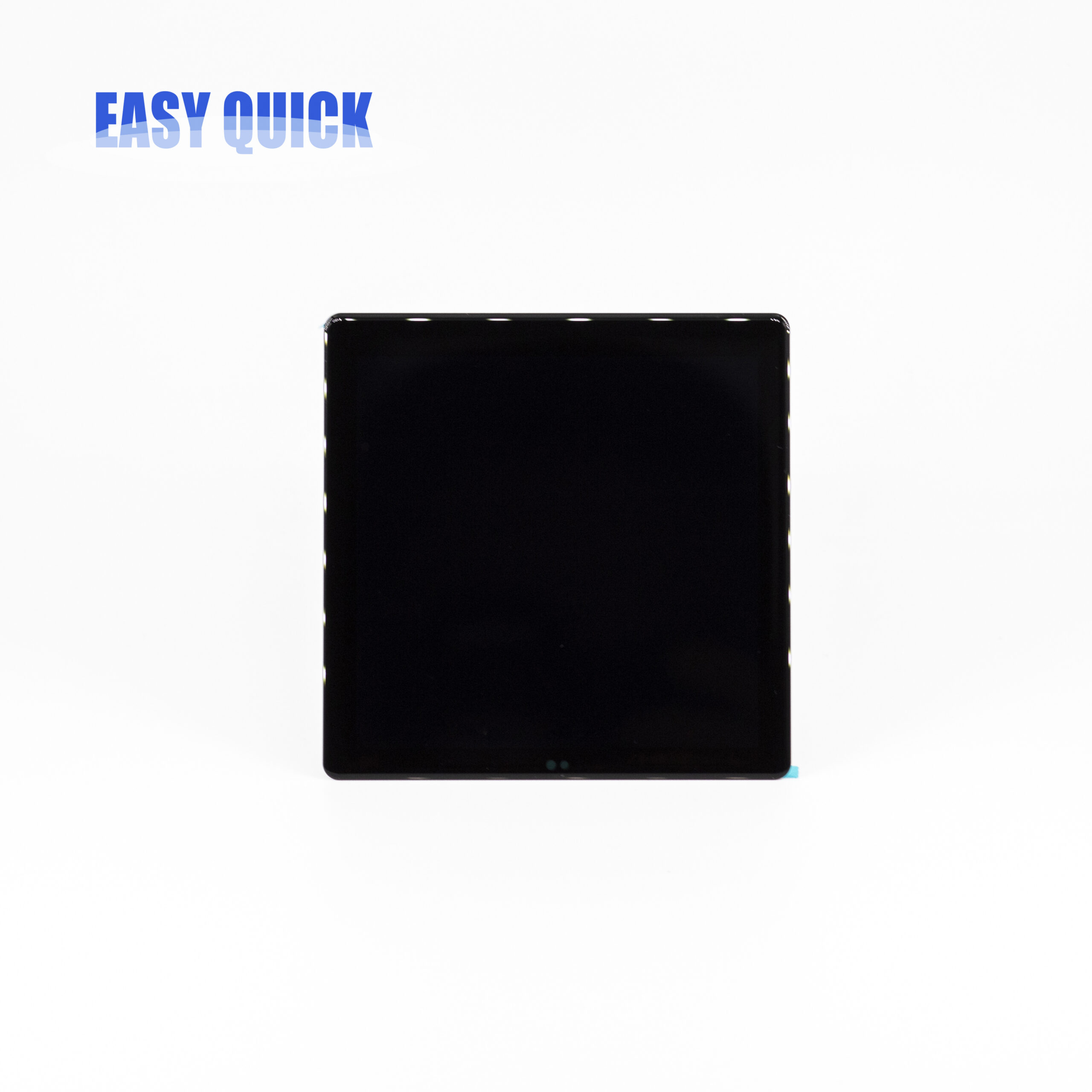

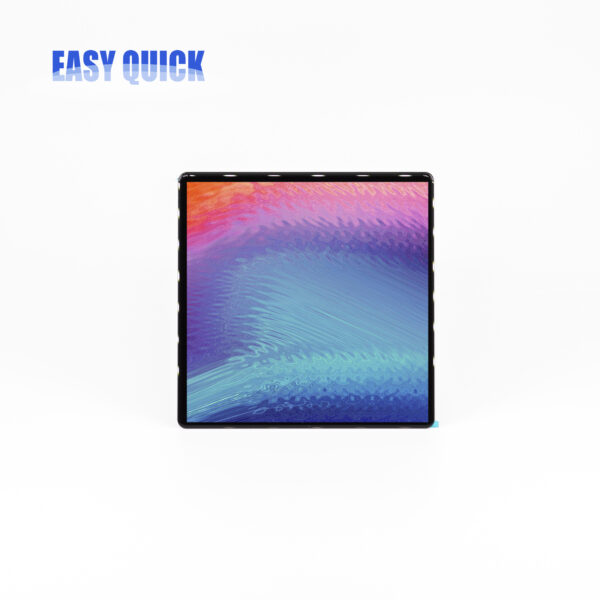

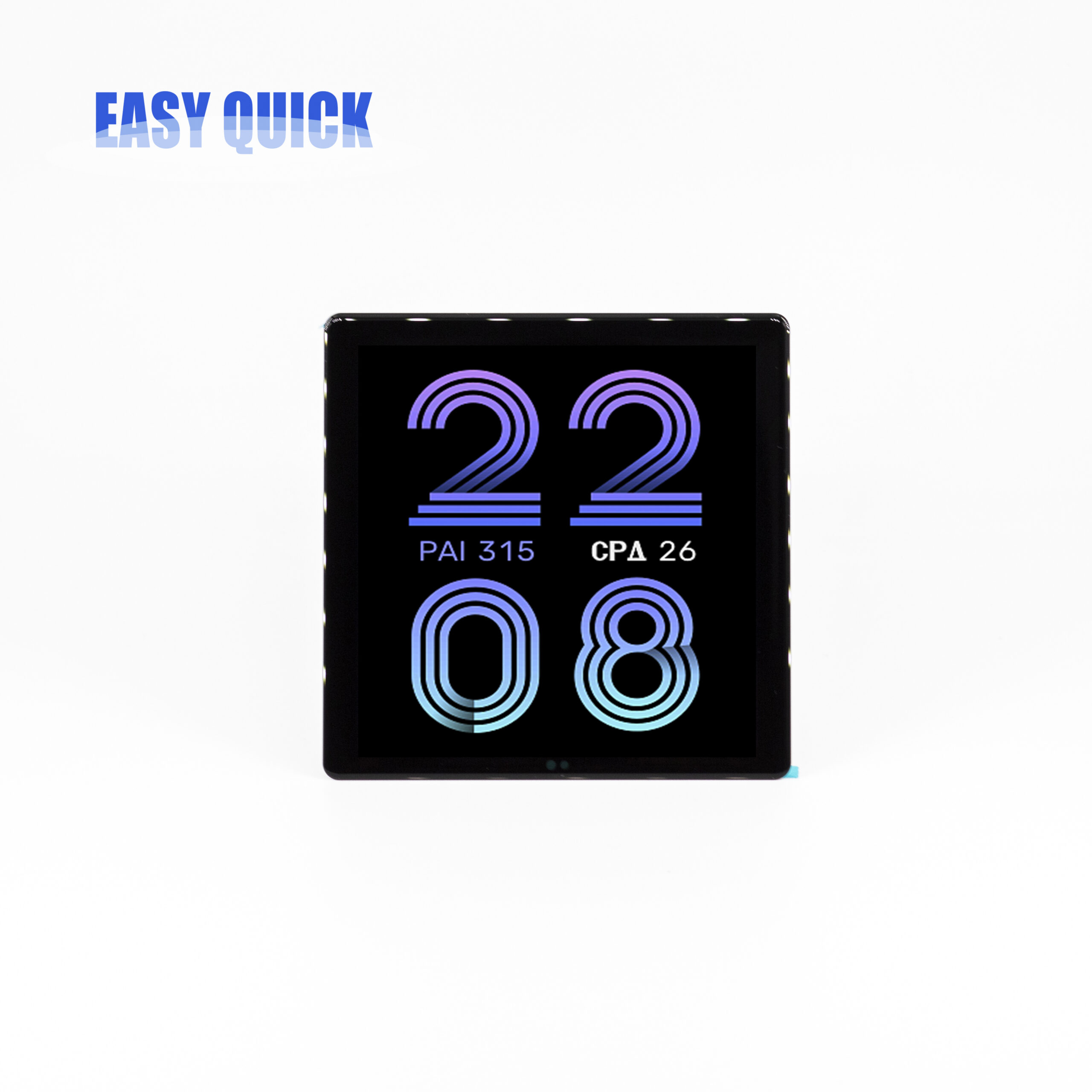

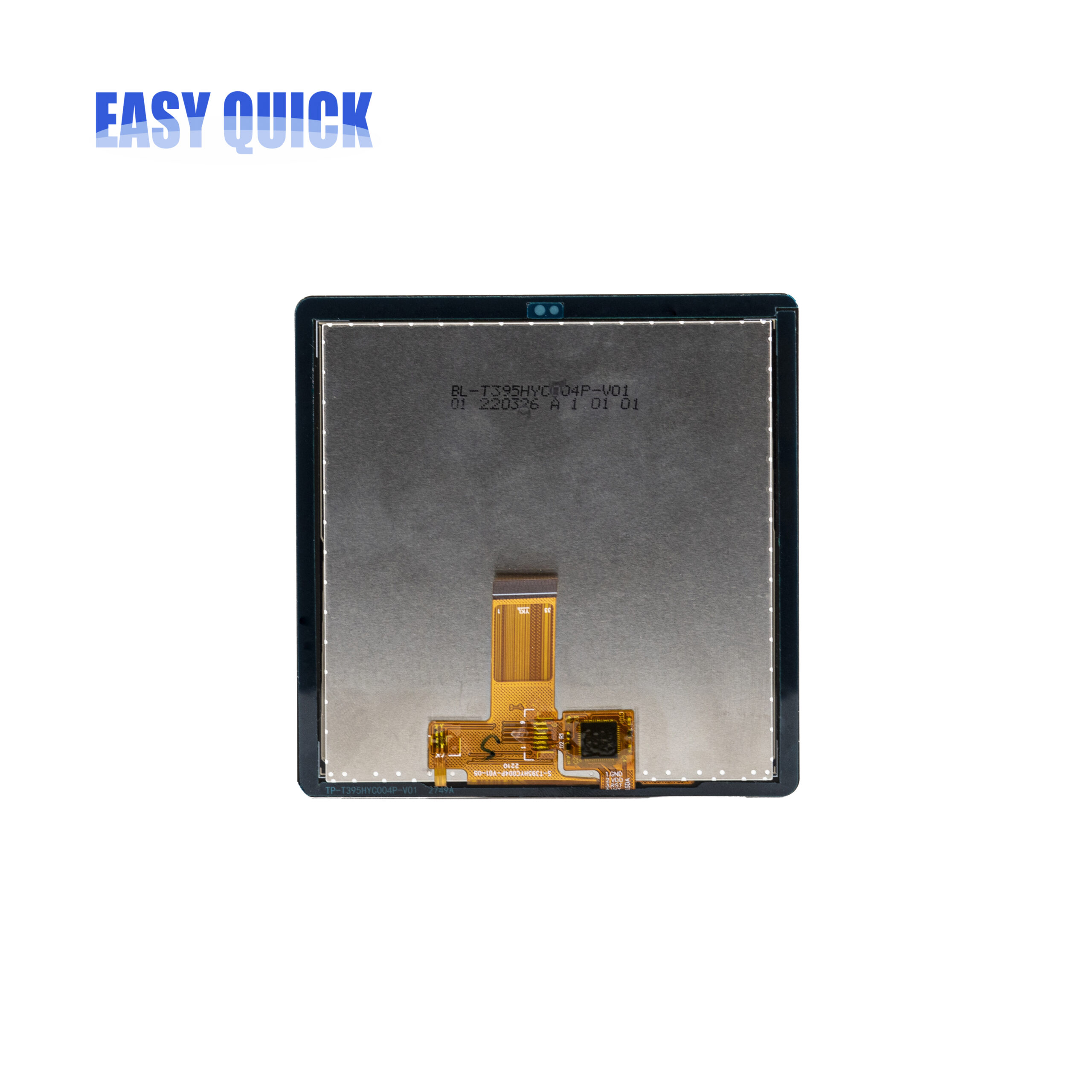

3.95-Inch 480×480 Square TFT LCD Display
EASYQUICKLCD 3.95-inch square TFT LCD display comes with a resolution of 480×480 pixels. This square LCD display allows for effective user interface arrangements, offering better information visibility than a standard rectangular display would. The display is designed to be durable using TFT technology, offering good image quality to the viewer. This display is well-suited for industrial interfaces, smart terminals, and embedded systems where a high-resolution square display is required.
Product Advantages
- True 480×480 Square LCD with Balanced Visual Output
The 3.95-inch square LCD display has a native resolution of 480×480, with a true 1:1 aspect ratio, making it suitable for well-proportioned UI designs. The square TFT display allows designers to make the fullest use of the screen, providing a sharper display compared to a rectangular display. Such a display also enhances the overall display clarity. - Stable TFT Display Performance for Continuous Operation
The square TFT display is based on mature TFT technology and is capable of providing high-quality image details, brightness, and colors. The square LCD is also optimized to work for a prolonged period of time, which is essential for any type of industrial equipment and smart terminal. - Compact 3.95-Inch Square Module Design
The compact size of this square LCD makes it suitable for space-limited devices. Its square form factor simplifies mechanical structure and enclosure design, reducing development complexity while offering flexibility for custom embedded system integration and product design. - Optimized for Industrial Interfaces and Smart Terminal Devices
This square TFT display is developed to meet the requirements of industrial interfaces and smart terminal applications, where display stability and clarity are critical. It is suited for use in industrial control panels, smart home controllers, handheld instruments, and other embedded systems that demand a reliable and high-resolution solution with a square LCD
Technical Specifications
- Display Characteristics
This comes with a 3.95-inch square TFT display with an EASYQUICKLCD TFT LCD panel supporting a native resolution of 480 x 480 pixels with a true 1:1 square aspect ratio. This square LCD design ensures there is equal visual output with the ability to display text and graphics properly. The display adopts a transmissive mode and supports rich color performance suitable for professional applications. - Optical Performance
The square TFT display features a stable brightness, high contrast ratio, and wide viewing angles, making it easy to view from different directions. The optical performance is tailored to meet the demands of industrial interfaces and smart terminal displays, providing consistent visual quality during long-term operation. - Interface and Electrical Features
This square LCD has a square form and supports popular display interfaces such as RGB, MIPI, or SPI interfaces. It is compatible with standard TFT display driver solutions. The operation is performed under the common voltage range for typical TFT display operation. - Mechanical and Environmental Characteristics
The display has been designed as a compact square LCD module and can be used in applications that are compact in nature. The display is designed to work properly in an industrial setup and is also RoHS environmental-compliant.
| Spec | Item | Specifications | Unit |
| Part No. | EQT395HYC005P | – | |
| Size | 3.95 | inch | |
| Resolution | 480*480 | – | |
| Viewing Angle | Full | – | |
| Active Area | 71.86(H)×70.18(V) | mm | |

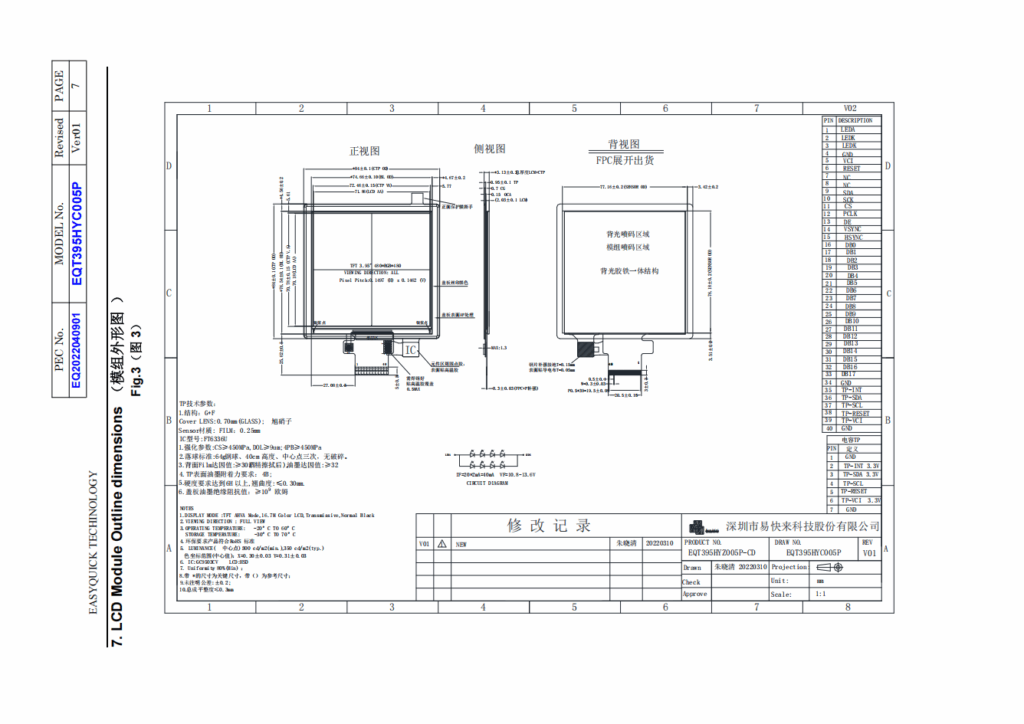

| Outline Dimension(mm) | 84(W)×84(H)×3.73(D) | mm | |
| Driver IC | GC9503CV | – | |
| Touch Function | CTP | – | |
| Brightness(Cd/m2) | 350 | Cd/m2 | |
| Interface | RGB | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
Customization Options
- Interface and Driver Customization
This square TFT display available is customizable according to various interface choices, such as RGB, MIPI, SPI, among others. The driver ICs available can also be changed to meet the demands of various control boards. - Touch Panel Integration
The square LCD can be supplied with optional touch solutions, including capacitive or resistive touch panels. Touch sensor structure, cover glass thickness, and surface treatment can be customized to meet specific application needs and user interaction requirements. - Optical and Backlight Options
Brightness level, viewing angle optimization, and backlight performance of the square TFT display can be customized according to application environments. Optional surface treatments such as anti-glare or anti-reflection coatings are available to improve visibility under different lighting conditions. - Mechanical and Environmental Customization
Mechanical dimensions, mounting structure, and connector types of the square LCD module can be adjusted to fit different product designs. Customization for operating temperature range and environmental requirements is also available for industrial and specialized applications.
FAQ
Q1: Is this 3.95-inch display a true square LCD?
Yes. This product features a native 480×480 resolution with a true 1:1 square aspect ratio. The active display area is square, making this square TFT display suitable for balanced UI layouts and applications that require symmetrical information presentation.
Q2: What type of interface does this square TFT display support?
This 3.95-inch square LCD supports common TFT interfaces such as RGB, MIPI, or SPI, depending on the configuration. The interface option can be selected according to the customer’s control board and system design requirements.
Q3: Can this 480×480 square LCD be supplied with a touch panel?
Yes. This square TFT display can be provided with optional touch functionality, including capacitive touch or resistive touch, depending on the application needs. Touch panel structure and cover glass options are available for customization.
Q4: Is this square LCD suitable for industrial applications?
This 3.95-inch square TFT display is designed for industrial and smart terminal use. It offers stable display performance and supports operation under standard industrial environmental conditions, making it suitable for control panels and embedded devices.
Q5: Can the brightness or backlight of this square TFT display be customized?
Yes. The brightness level and backlight configuration of this square LCD can be customized based on application requirements, such as indoor or semi-outdoor usage and specific visibility needs.
Q6: Is this 3.95-inch square LCD easy to integrate into embedded systems?
The compact square form factor and standard TFT electrical characteristics make this square TFT display easy to integrate into embedded systems. Interface selection and mechanical structure can be adjusted to simplify integration.
