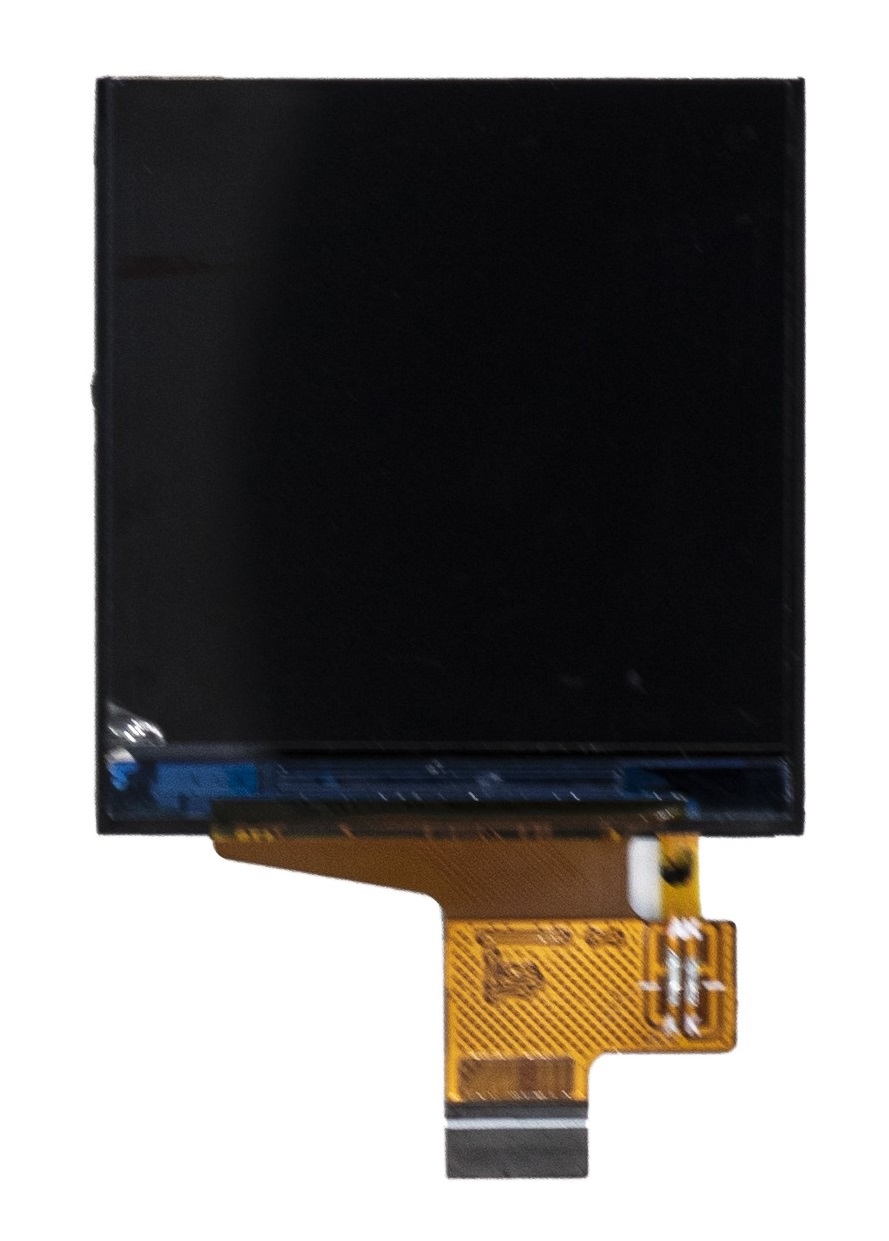

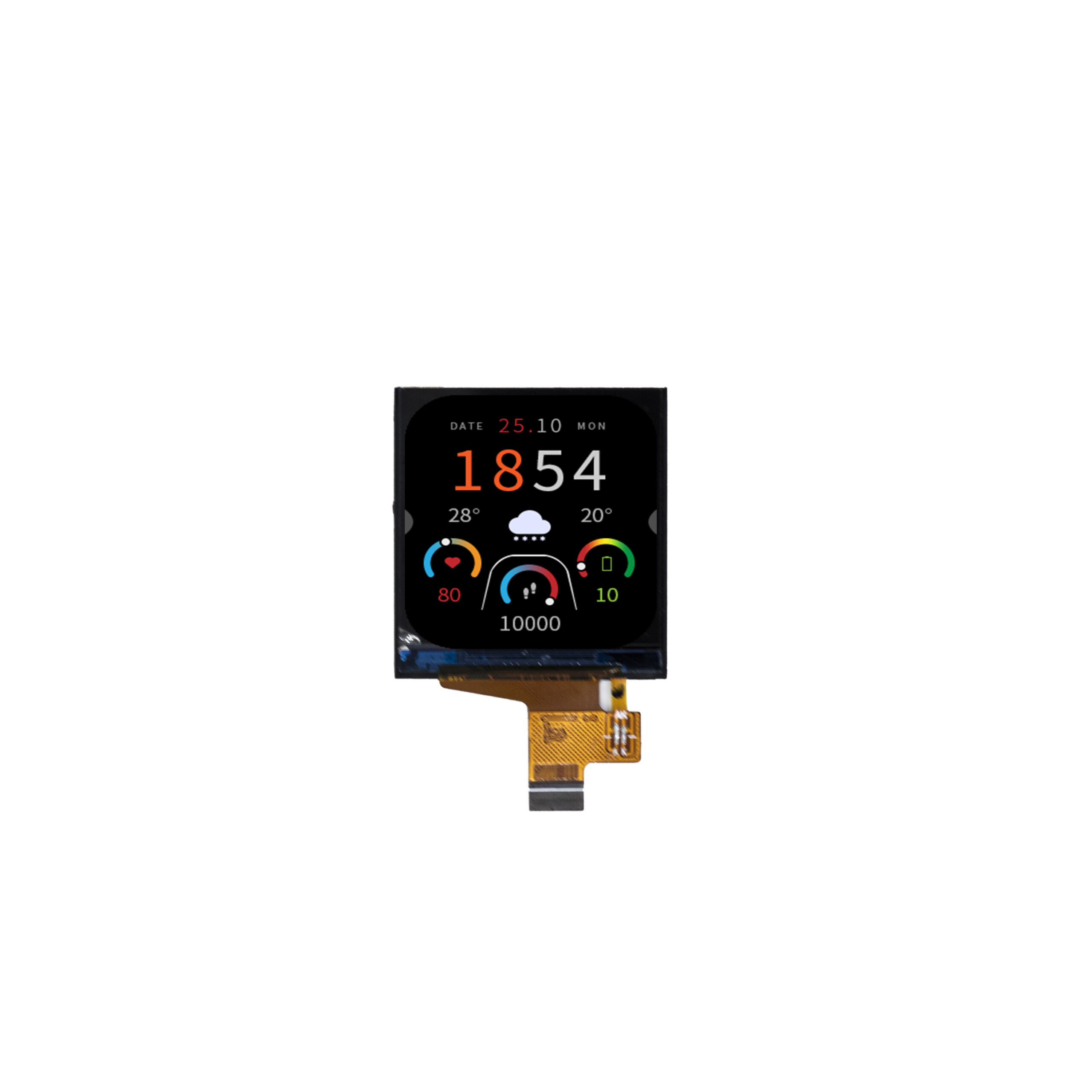

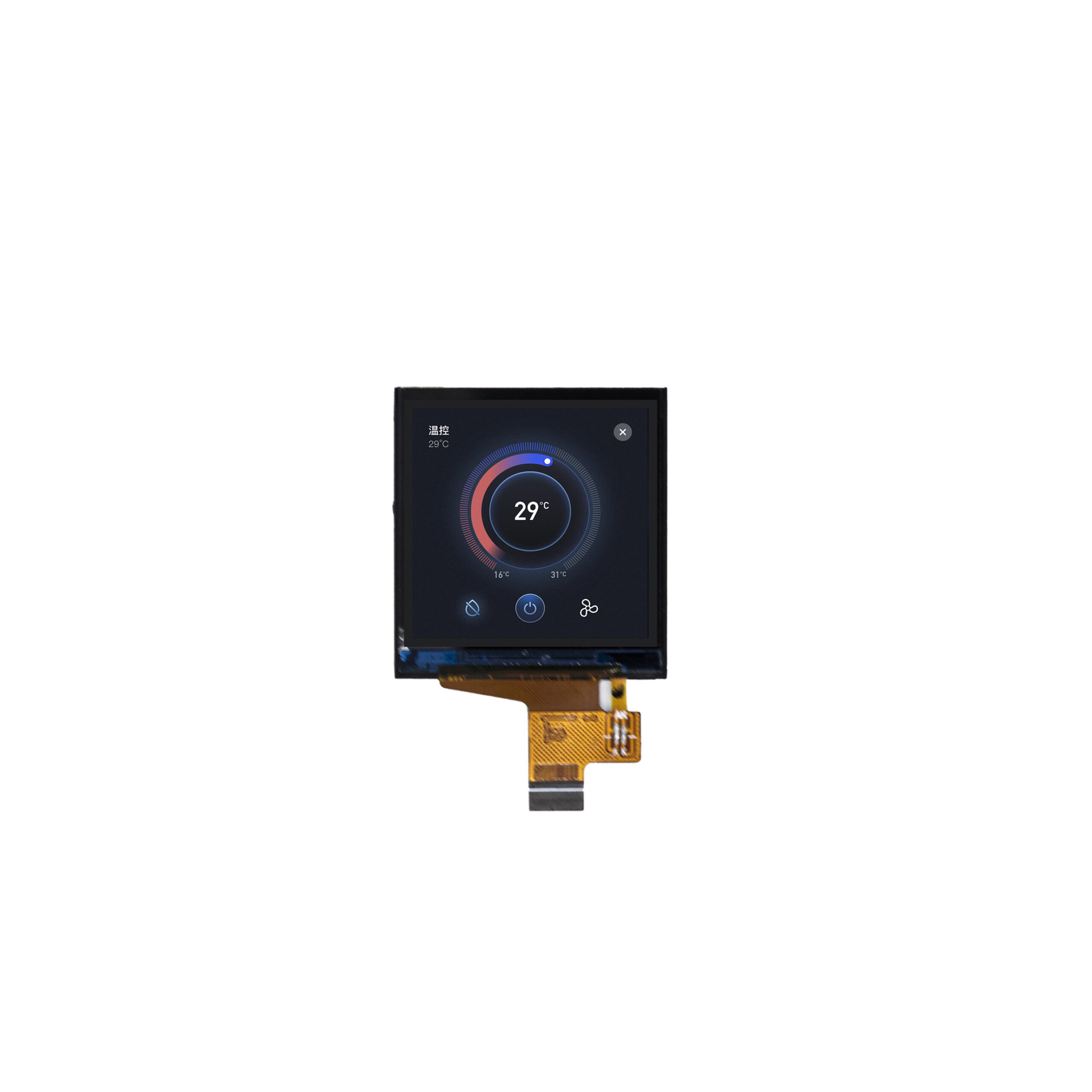

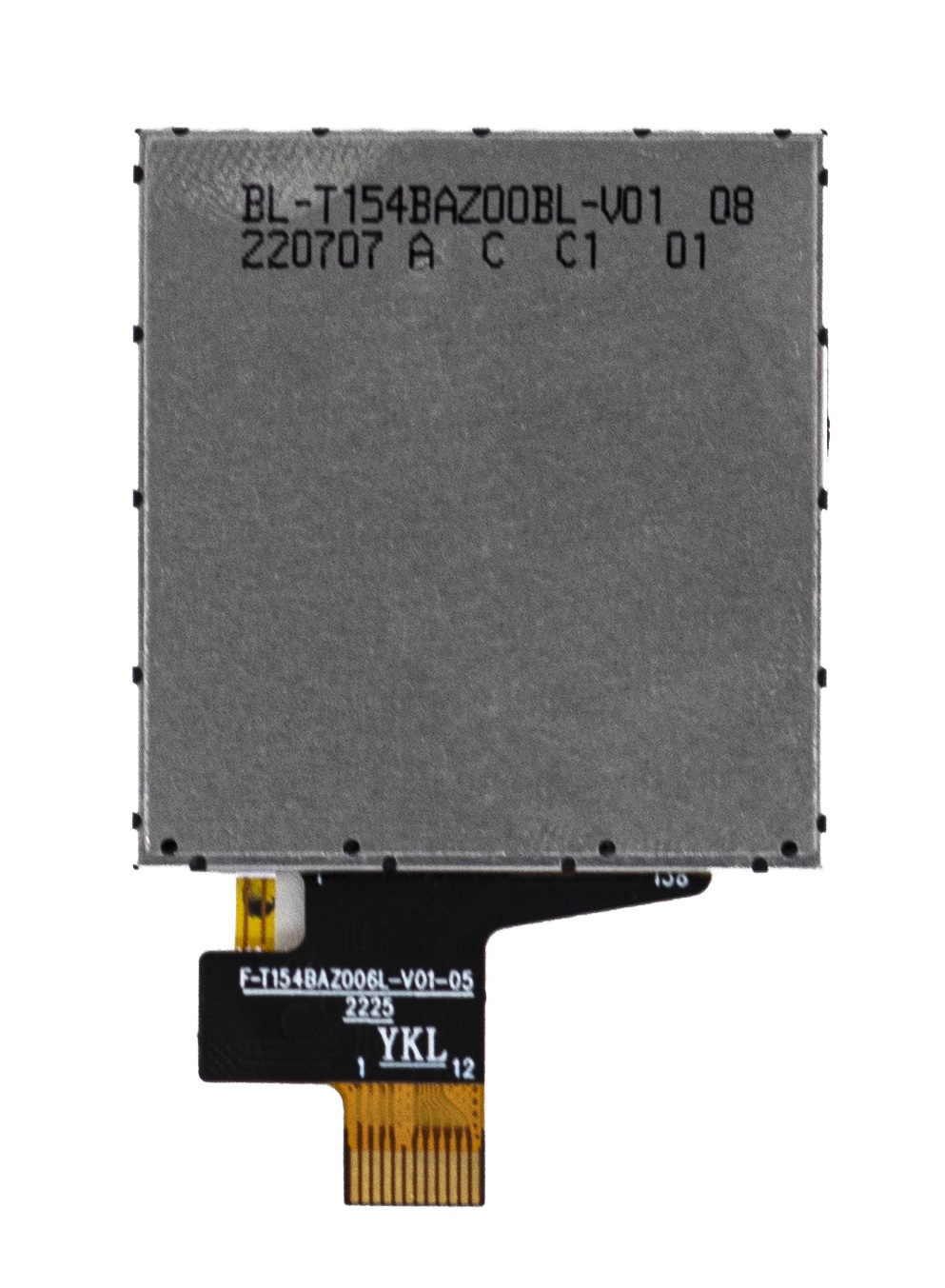

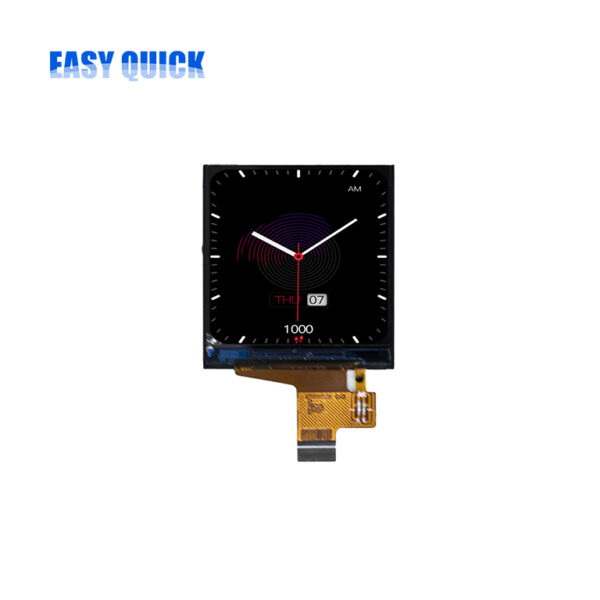

1.54 inch resolution 240*240 TFT Small/Tiny LCD Display
The 1.54-inch TFT LCD display offers a sharp 240×240 resolution in a compact square format, delivering excellent color reproduction and visibility from multiple angles. Its balanced size makes it ideal for smart and portable devices where clarity and compactness are essential. The module supports various interface options and can be customized to meet specific functional and structural needs, including touch panels and FPC design.
Share：
- Smartwatches and wearable devices
- Smart home control panels
- Handheld electronic instruments
- Industrial control panels
- Smart meters and utility devices
- Medical monitoring equipment
- IoT terminals and data collectors
- Compact consumer electronics
- Portable health and fitness trackers
| Spec | Item | Specifications | Unit |
| Part No. | EQT154BAZ006L | Unit | |
| Size | 1.54 | inch | |
| Resolution | 240*240 | – | |
| Viewing Angle | Full | – | |
| Active Area | 27.72(H)×27.72(V) | mm | |
| Outline Dimension(mm) | 31.52(W)×33.72(H)×2.02(D) | mm | |
| Driver IC | ST7789V | – | |
| Touch Function | Without | – | |
| Brightness(Cd/m2) | 350 | Cd/m2 | |
| Interface | SPI/MCU/RGB | – | |
| Storage Temp. | －20 TO 70 | ℃ | |
| Operation Temp. | －10 TO 60 | ℃ |
