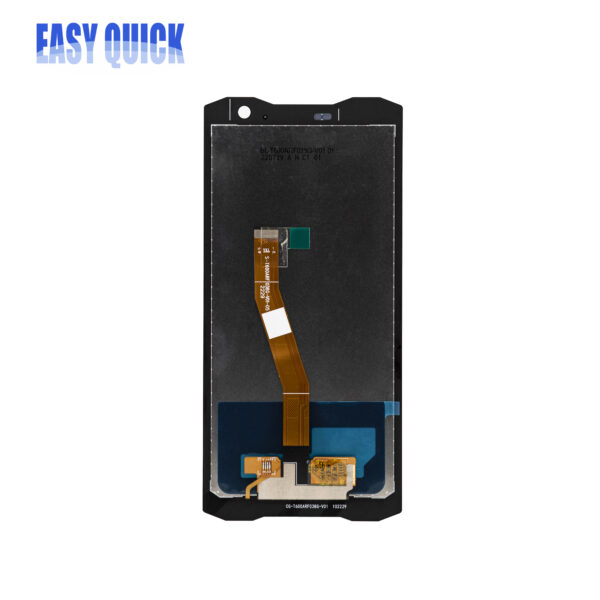

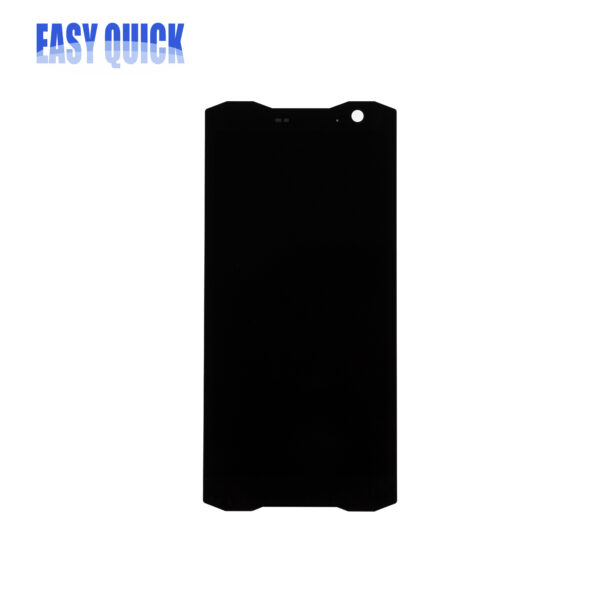

6.74 Inch Full View TFT LCD Display 720×1600 | High-Resolution Screen for Smart Devices and Industrial Applications
This 6.74-inch TFT LCD display delivers stunning 720×1600 resolution visuals with full viewing angles, perfect for applications requiring high-definition clarity. Featuring 450cd/m² brightness and a slim 2.15mm profile, it excels in both indoor and outdoor environments. The display’s wide temperature range ensures reliable operation in various conditions, while its compact dimensions make it ideal for space-conscious designs. With advanced driver IC technology, this screen offers superior performance for smart devices and industrial equipment.
Share:
Product description
Smart home control panels and displays
Industrial HMI and control systems
Portable medical diagnostic devices
Automotive infotainment systems
Handheld testing and measurement equipment
Consumer electronics displays
Military and aerospace interfaces
Security monitoring screens
Kiosk and POS terminal displays
Spec
| Item | Specifications | Unit |
| Part No. | EQT674BKU295G | Unit |
| Size | 6.74 | inch |
| Resolution | 720*1600 | – |
| Viewing Angle | Full | – |
| Active Area | 70.308(H)×156.24(V) | mm |
| Outline Dimension(mm) | 74.37(W)×164.64(H)×2.15(D) | mm |
| Driver IC | ICNL9916AC-02 | – |
| Touch Function | – | |
| Brightness(Cd/m2) | 450 | Cd/m2 |
| Interface | – | |
| Storage Temp. | -30 TO 80 | ℃ |
| Operation Temp. | -20 TO 70 | ℃ |
Drawing
