0.96 Inch TFT LCD Display — Ultra-Compact Screen for Wearables and Mini Devices
The 0.96 inch TFT LCD Display is a purpose-built compact screen designed for wearables, mini-devices, handheld controllers, and any application where space, power, and clarity are critical. This ultra-small yet high-performance module brings crisp graphics and reliable operation to constrained housings, giving product designers a true compact screen solution without compromising user experience.
Product Overview

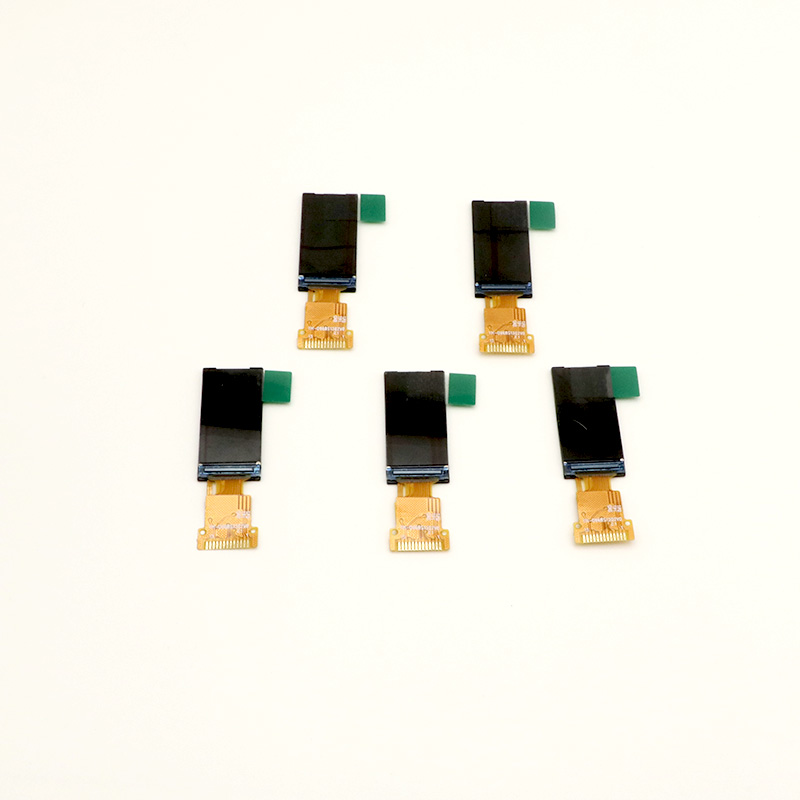

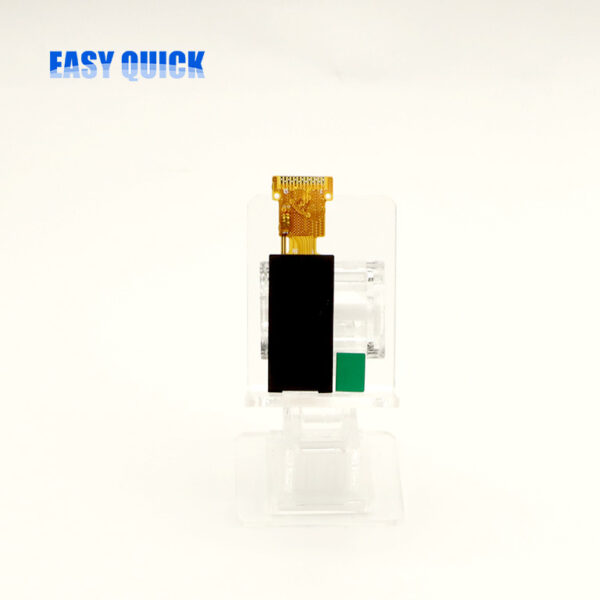

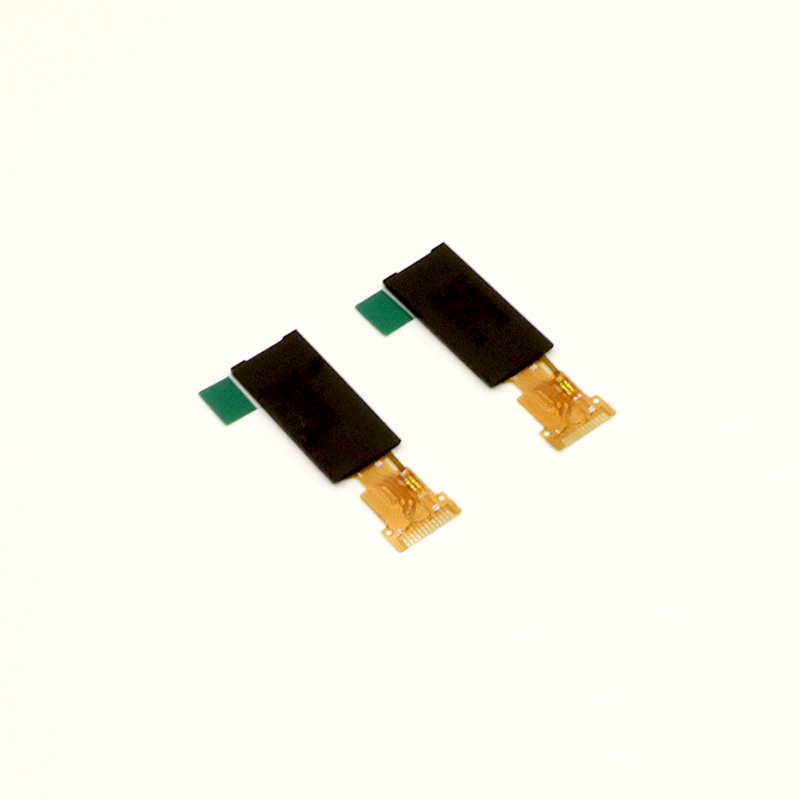

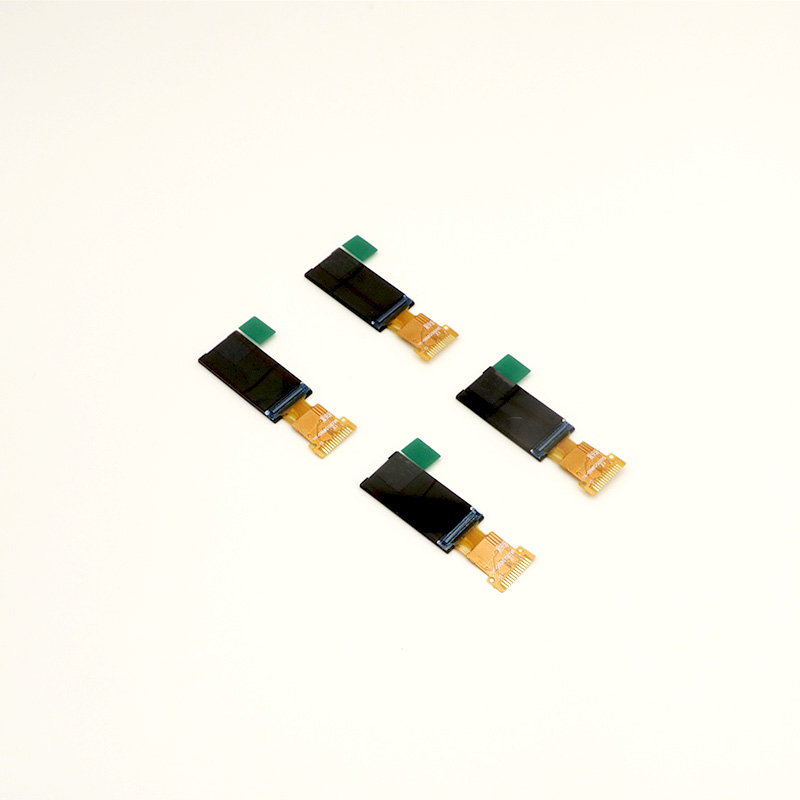

This 0.96 inch TFT module features an 80 × 160 pixel resolution in a vertical or portrait aspect ratio thatsuits modern wearable interfaces. The display’s compact screen footprint allows engineers to implement visually rich user interfaces in devices where larger panels simply won’t fit. With good brightness, high contrast, and stable color reproduction, this compact screen is ideal for small HMIs, smart buttons, and portable gadgets.
Key Features
Small Form Factor: The 0.96 inch physical size provides a minimal footprint while maximizing usable display area — a genuine compact screen option for tight mechanical designs.
- Resolution & Clarity: 80 × 160 pixels deliver sharp text and icons for clean UI rendering on this compact screen.
- Low Power Consumption: Engineered for battery-powered wearables and IoT devices, the display minimizes power usage while maintaining readable output — making the compact screen ideal for always-on or intermittent display modes.
- Wide Compatibility: Standard interfaces such as SPI make integration straightforward across microcontrollers and system-on-chip platforms; the compact screen supports common drive ICs for rapid prototyping and production.
- Durability & Stability: Designed for continuous operation in consumer and industrial en
vironments, this compact screen undergoes strict QC and aging tests to ensure longevity.
Performance & Use Cases
In real-world deployments, the 0.96 inch compact screen performs reliably in a variety of conditions. Typical applications include:
- Wearable health monitors where the compact screen displays metrics and status at a glance.
- Smart tags and compact controllers where enclosure volume is limited.
- Portable meters and measurement tools requiring a durable small display.
- Consumer electronics such as mini remotes, smart keyfobs, and pocket gadgets that benefit from a compact screen UI.
Because the compact screen is optimized for low power and predictable brightness control, it is suitable for battery-driven devices that require extended field life.
Why Choose This 0.96″ Compact Screen?
Designers choose this 0.96 inch compact screen when mechanical constraints meet a demand for a refined visual experience. Compared with generic small LCDs, this compact screen balances pixel density, contrast, and electrical efficiency. It enables information-dense layouts — such as multi-line text, icons, and simple graphics — that improve the end user’s interaction with compact devices.
- Smart wearable devices (watches, fitness bands)
- Portable electronic gadgets
- Miniature IoT devices
- Smart medical monitors
- Industrial handheld tools
- E-cigarette screens
- Security access systems
- Smart tags and labels
- Test instruments and meters
Integration Tips
Use SPI with DMA transfer to reduce MCU load when refreshing complex screens on this compact screen.
Implement partial refresh strategies to lower power consumption while keeping important UI elements visible on the compact screen.
Calibrate gamma settings in your firmware for consistent color rendering across production lots of the compact screen.
| Spec | Item | Specifications | Unit |
| Part No. | EQT096BEZ003L | Unit | |
| Size | 0.96 | inch | |
| Resolution | 80*160 | – | |
| Viewing Angle | Full | – | |

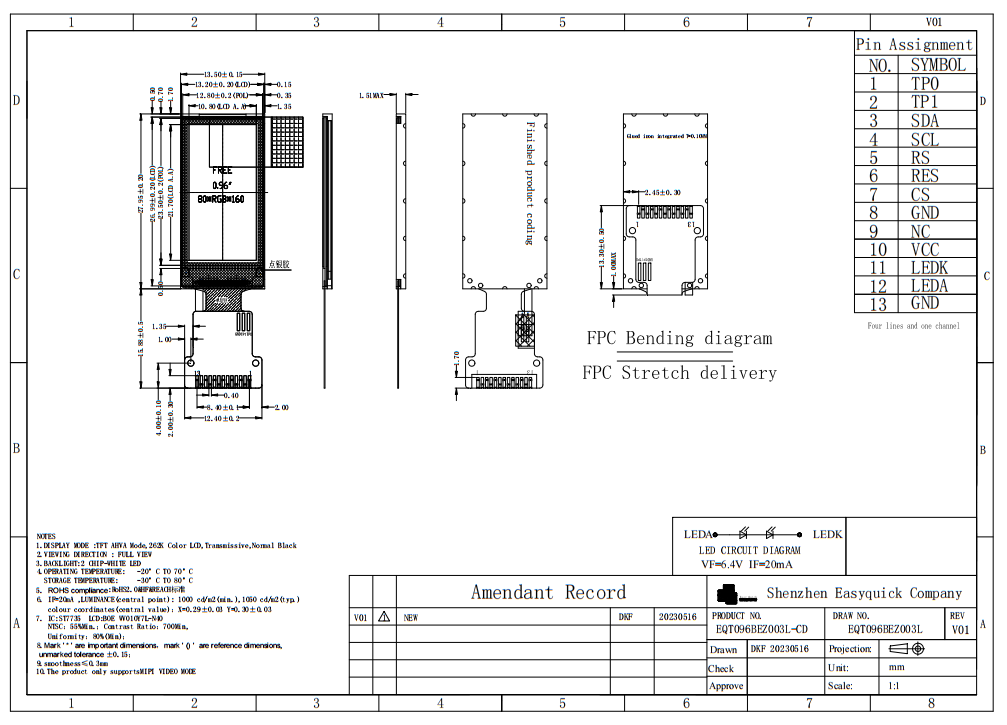

| Active Area | 10.8(H)×21.70(V) | mm | |
| Outline Dimension(mm) | 13.50(W)×27.95(H)×1.5(D) | mm | |
| Driver IC | ST7735 | – | |
| Touch Function | Without | – | |
| Brightness(Cd/m2) | 800 | Cd/m2 | |
| Interface | SPI/MCU/RGB | – | |
| Storage Temp. | －30 TO 80 | ℃ | |
| Operation Temp. | －20 TO 70 | ℃ |
Customization Options
EasyQuick supports flexible customization for the 0.96 inch compact screen. Common customizations include:
- Touch sensor integration (capacitive/resistive) for
interactive compact screen applications. - Backlight adjustments for higher lumen output or lower power modes to match product energy budgets.
- Mechanical outline changes and mounting tab options for seamless enclosure integration.
- Interface and firmware support so your development team can accelerate time-to-market with this compact screen.
Our engineering team can discuss tradeoffs between brightness, viewing angle, and power consumption to tailor the compact screen to your device lifecycle needs.
Quality & Certification
Every compact screen module undergoes rigorous inspection, functional testing, and lifetime aging to ensure consistent performance. The 0.96 inch display is produced under ISO9001 quality controls and complies with RoHS environmental regulations. Regular reliability tests and batch traceability provide manufacturers with confidence when deploying the compact screen in mass production.
FAQs
Q: Is this compact screen suitable for always-on displays?
A: Yes — thanks to its low power design, the compact screen can handle intermittent or continuous usage depending on the configured backlight and refresh strategy.
Q: What interfaces are supported?
A: SPI is standard; other interfaces may be available depending on selected drive IC and customization requests for the compact screen.
Q: Can you integrate touch?
A: Yes — touch integration is a common customization for the compact screen and can be provided in capacitive or resistive variants.
