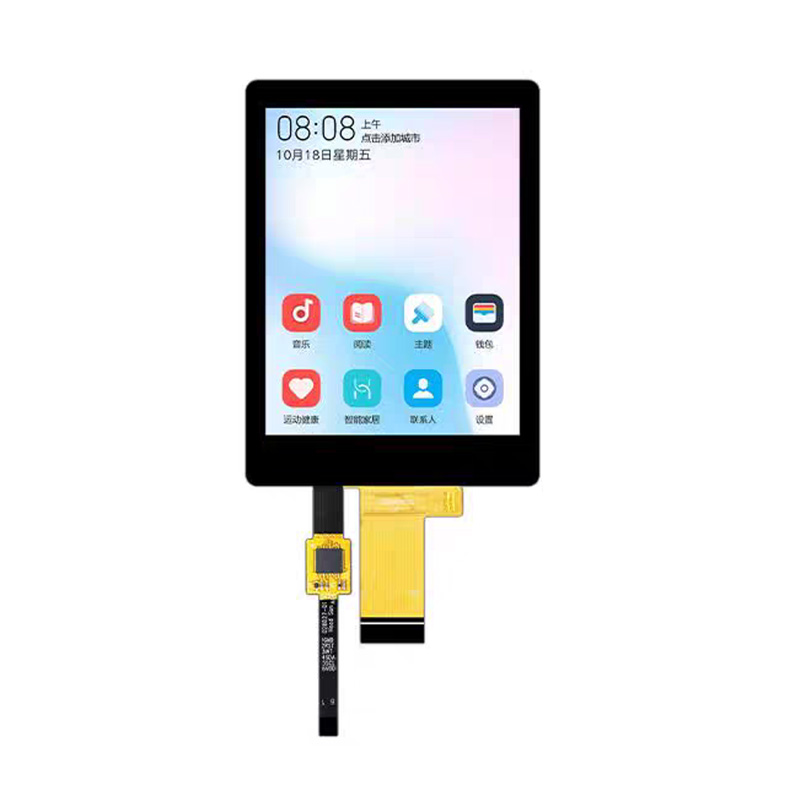

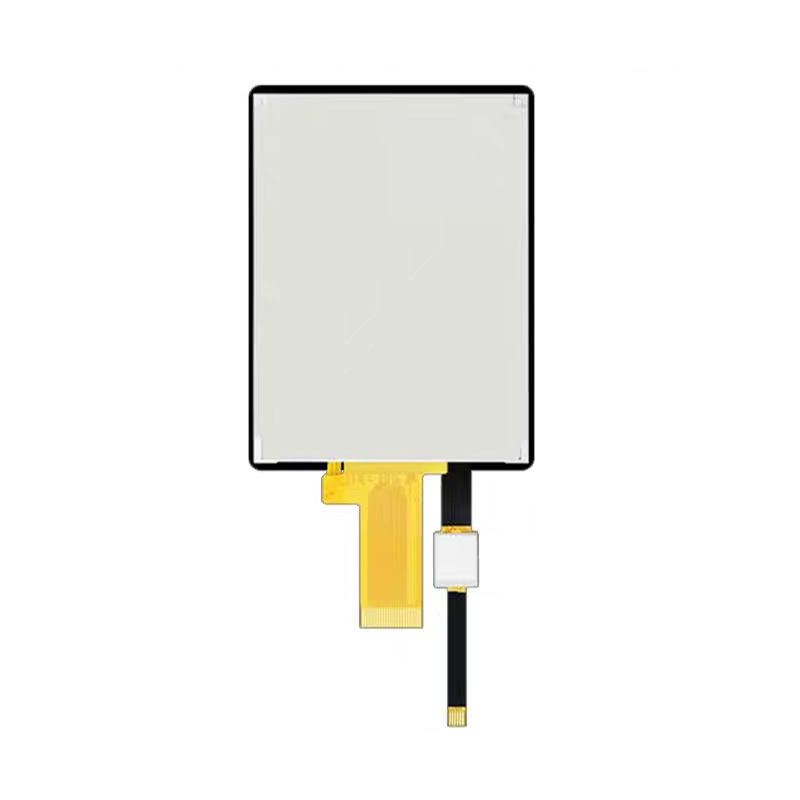

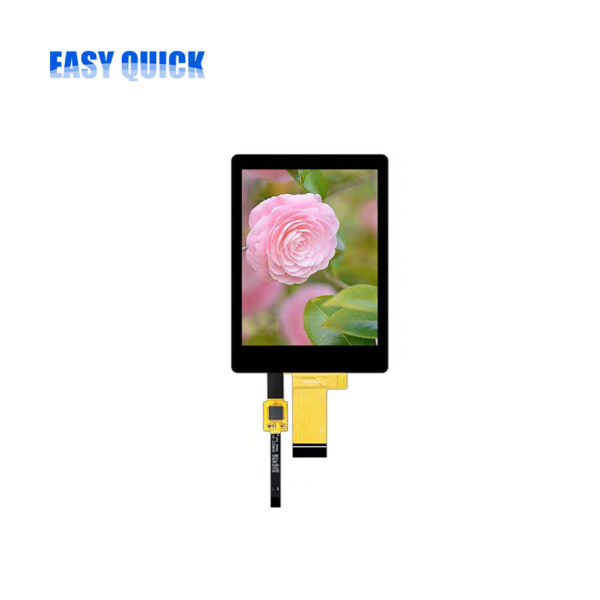

2.8 Inch TFT LCD Display 240×320 | Mid-Size Touch-Ready Screen for Industrial, Medical & Consumer Interfaces
The 2.8-inch TFT LCD display offers a 240×320 resolution, delivering vibrant colors, excellent contrast, and reliable visibility across wide angles. Slightly larger than the 2.4-inch variant, this module provides enhanced touch interaction space while remaining compact. It supports SPI, MCU, or RGB interfaces, and is available with optional capacitive or resistive touch panels. With stable performance and flexible customization, it’s ideal for mid-size embedded applications requiring dependable and intuitive user interfaces.
Share：
- Medical Equipment: Portable ECG monitors, ultrasound probes, and patient data terminals
- Smart Home Control: Wall-mounted light or HVAC controllers, smart switches, and home automation panels
- Industrial Terminals: Handheld barcode scanners, diagnostic testers, and factory control pads
- Retail Systems: Compact POS machines, handheld order-taking devices, and inventory checkers
- Consumer Electronics: DIY smart kits, e-learning tools, children’s smart readers, and multimedia remotes
- Security & Access Devices: Smart door locks, facial recognition units, and keypad control panels
- Automotive Interfaces: Touchscreen dashboard displays, tire inflation monitors, and vehicle diagnostic readers
- Fitness & Health Gadgets: Smart fitness panels, body composition monitors, and home therapy devices
| Spec | Item | Specifications | Unit |
| Part No. | EQT280BJZ172P | – | |
| Size | 2.8 | inch | |
| Resolution | 240*320 | – | |
| Viewing Angle | Full | – | |

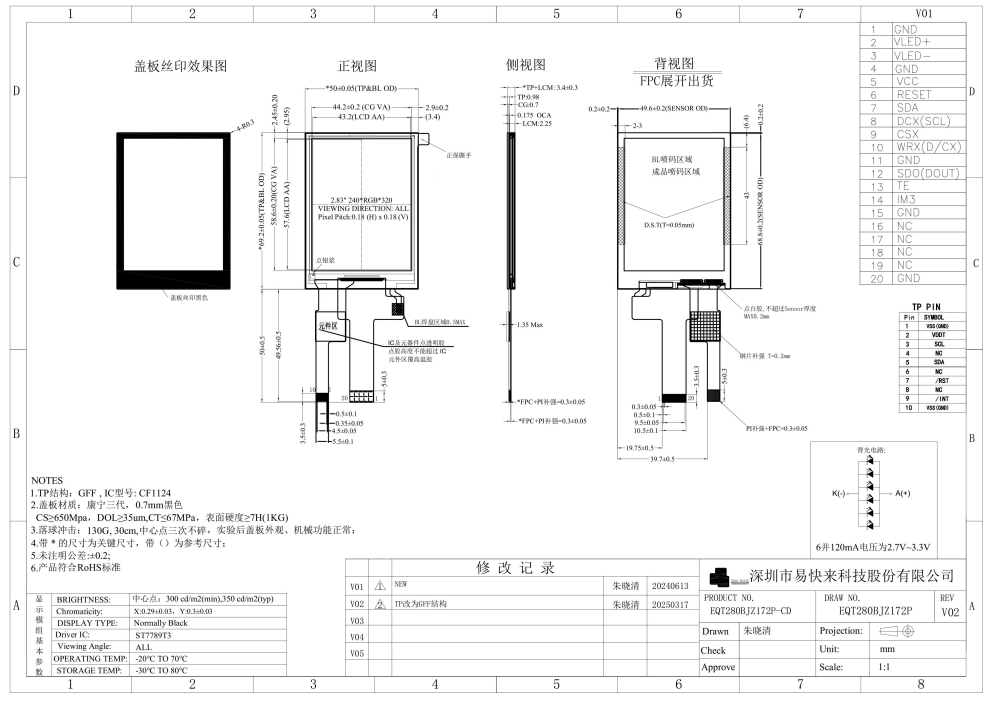

| Active Area | 43.2(H)×57.6(V) | mm | |
| Outline Dimension(mm) | 50(W)×69.2(H)×3.4（D) | mm | |
| Driver IC | ST7789T3(TFT) CF1124 (CTP) |
– | |
| Touch Function | CTP | – | |
| Brightness(Cd/m2) | 350 | Cd/m2 | |
| Interface | SPI | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
