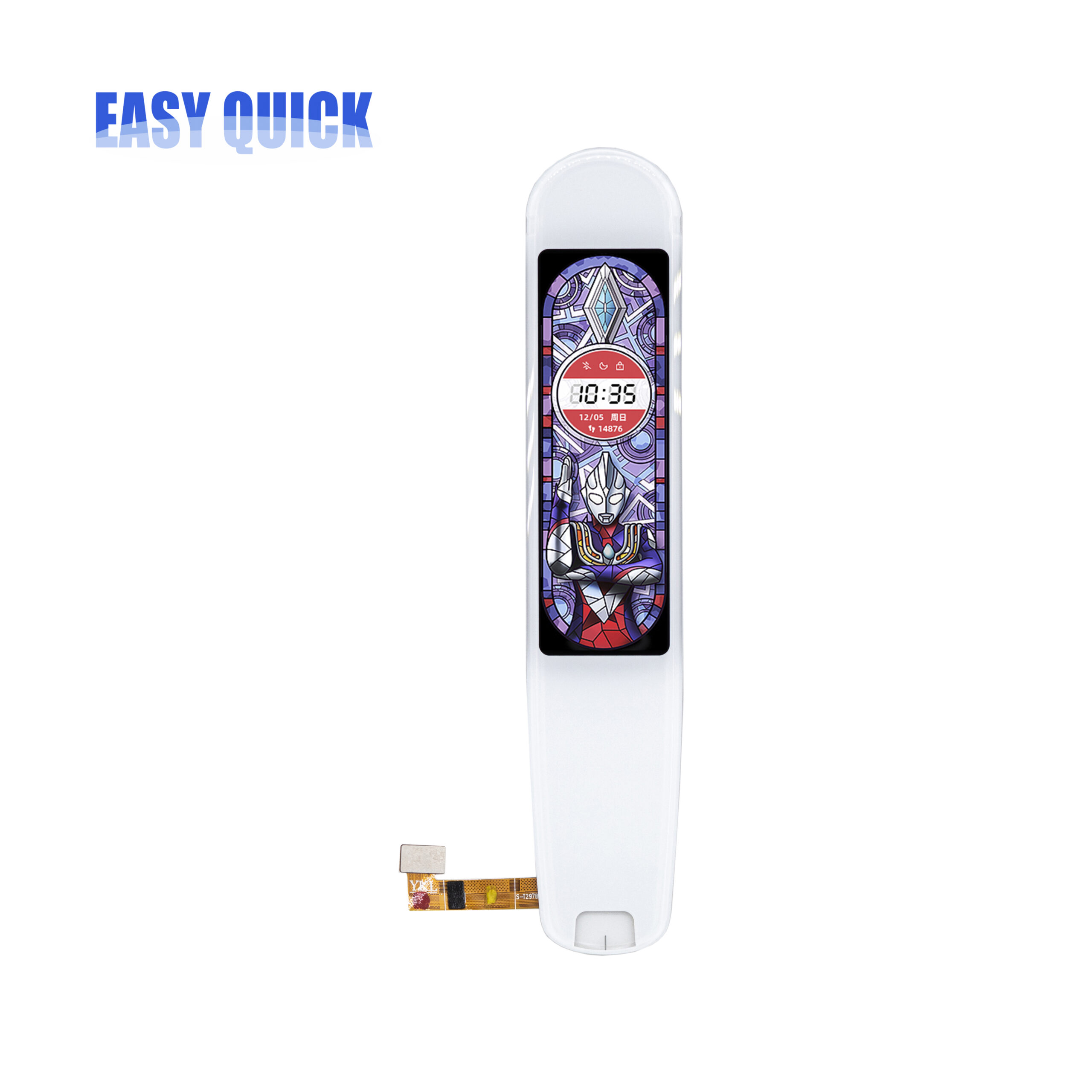

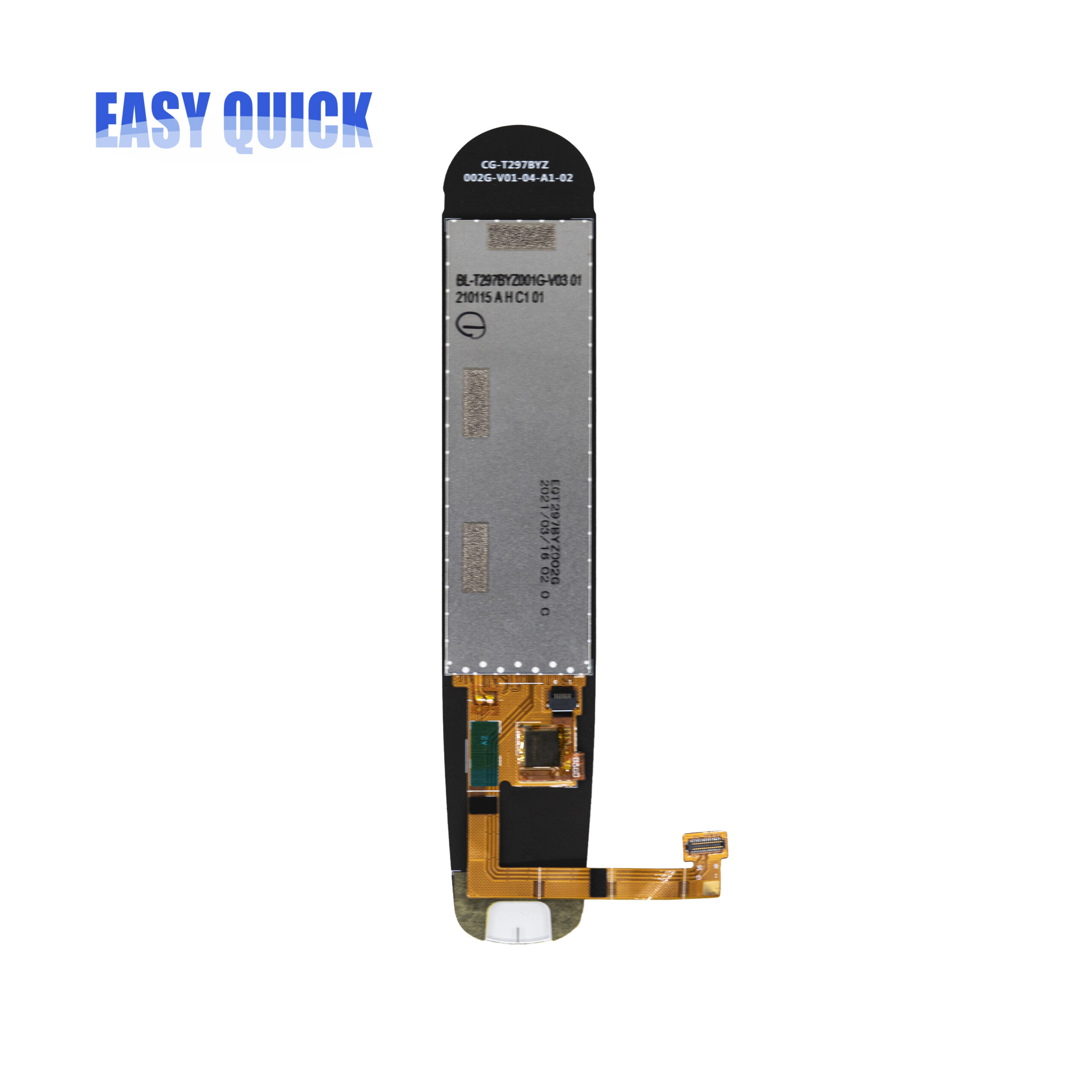

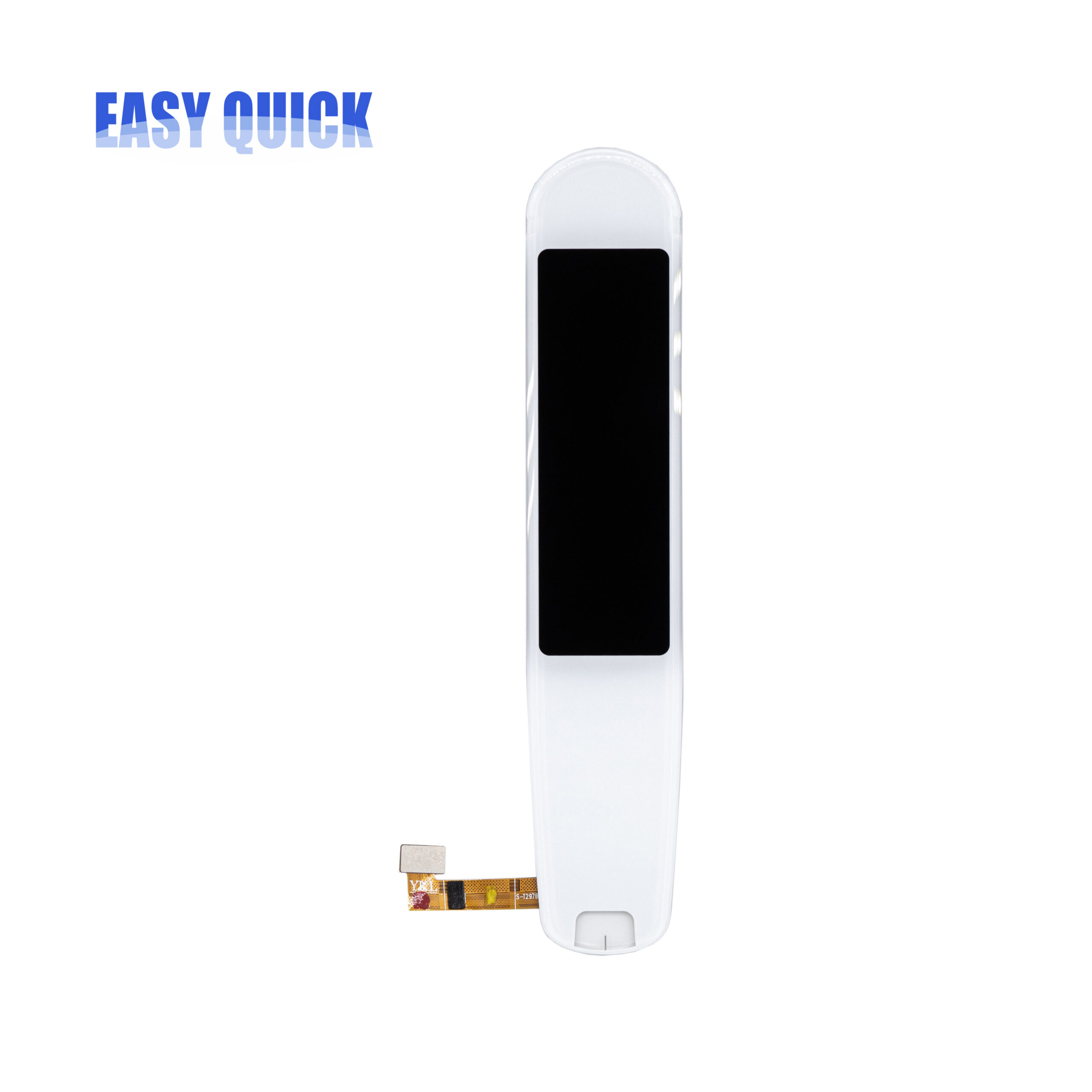

2.97 Inch TFT LCD Display 254×800 | Full Viewing Angle, Ultra-Slim Design for Compact Devices
The 2.97-inch TFT LCD display with 254×800 resolution delivers sharp visuals in a slim, space-saving design. A full viewing angle and high brightness make it ideal for industrial and wearable devices. Designed for reliability in challenging environments, it features robust performance and adaptable configurations to meet specialized design requirements.
Share：
Wrist-worn health and activity trackers
Compact personal electronics
Small-scale connected IoT sensors
Medical health monitoring devices
Handheld industrial equipment
Secure entry and authentication systems
Intelligent tracking and identification tags
Measurement and diagnostic tools
| Item | Specifications | Unit |
| Part No. | EQT297BYC010G | Unit |
| Size | 2.97 | inch |
| Resolution | 254*800 | – |
| Viewing Angle | Full | – |
| Active Area | 22.86(H)×72(V) | mm |
| Outline Dimension(mm) | 27.92(W)×145.78(H)×2.91(D) | mm |
| Driver IC | GC9503CB（TFT） ZT2628（CTP） | – |
| Touch Function | CTP | – |
| Brightness(Cd/m2) | 320 | Cd/m2 |
| Interface | MIPI | – |
| Storage Temp. | －30 TO 80 | ℃ |
| Operation Temp. | －20 TO 70 | ℃ |
