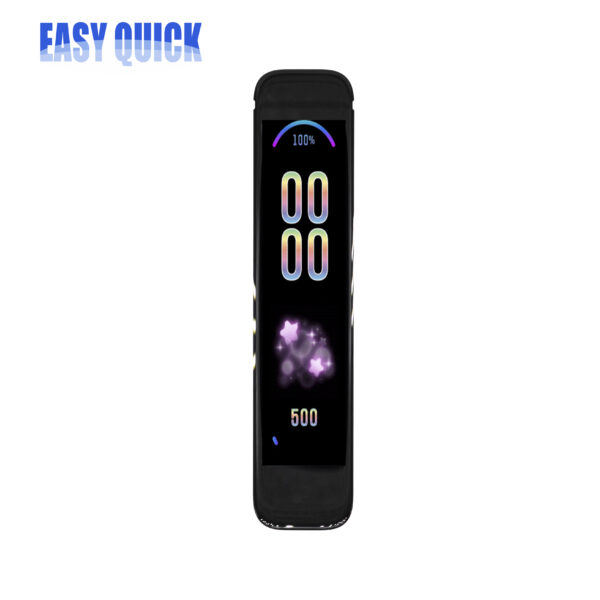

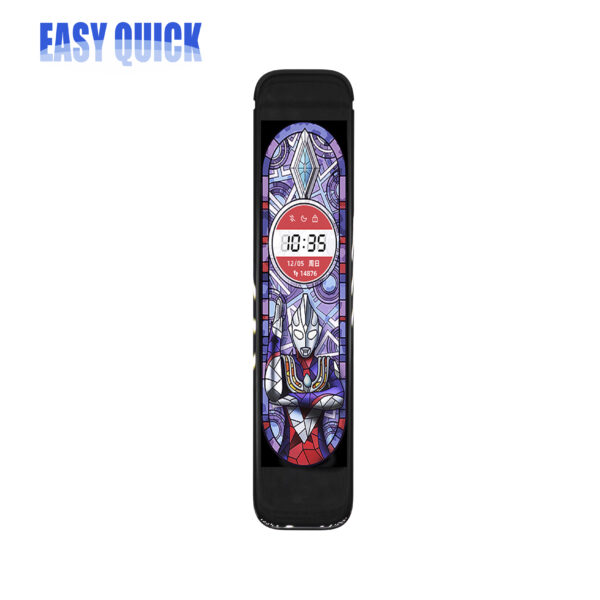

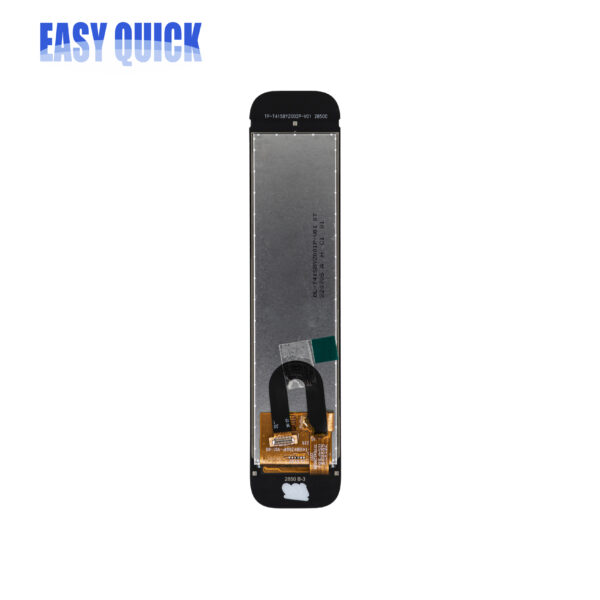

4.15 Inch TFT LCD Screen – Wide Viewing, Rugged Design
The 4.15 inch TFT LCD display combines sharp image quality with wide viewing angles and strong durability. Engineered for continuous use, it ensures stable performance under varying conditions, delivering smooth image rendering and reliable functionality for advanced smart devices.
Share:
Smart appliances and home terminals
POS machines and retail devices
Handheld communication equipment
Automotive auxiliary displays
Industrial control systems
| Spec | Item | Specifications | Unit |
| Part No. | EQT415BYZ001P | – | |
| Size | 4.15 | inch | |
| Resolution | 232*960 | – | |
| Viewing Angle | Full | – | |
| Active Area | 25.38(H) x 103.13(V) | mm | |
| Outline Dimension(mm) | 30.10(H)×137.30 (V)×2.88(D) | mm | |
| Driver IC | ST7701SN-G5(TFT) ZT2628(CTP) | – | |
| Touch Function | CTP | – | |
| Brightness(Cd/m2) | 420 | Cd/m2 | |
| Interface | MIPI | – | |
| Storage Temp. | -30 TO 80 | ℃ | |
| Operation Temp. | -20 TO 70 | ℃ |
