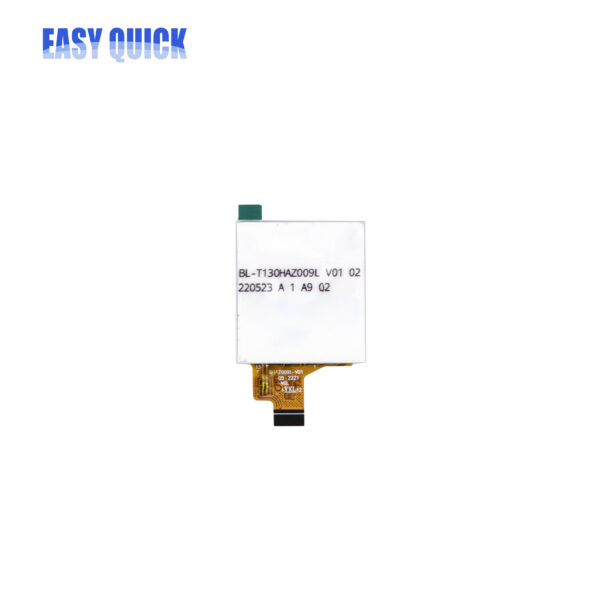

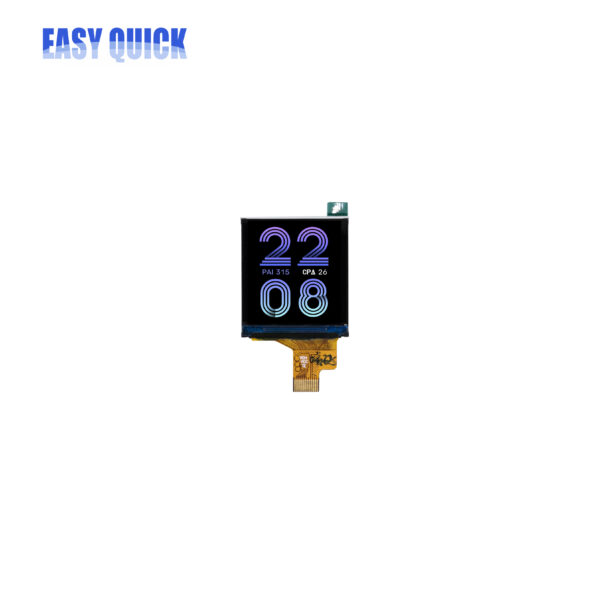

1.3-Inch TFT LCD Display 240×240 | Compact Square Display for Wearables & Smart Devices
The 1.3-inch TFT LCD display offers a clear 240×240 resolution in a compact square design, providing vivid color performance and wide-angle visibility. Its moderate size strikes a perfect balance between screen space and device footprint, making it ideal for compact smart devices and portable electronics. The module supports flexible interface options and can be tailored to specific design needs, including integration of touch panels, FPC layout customization, and brightness adjustment to fit various application scenarios.
Share：
Smartwatches and wearable devices
Compact smart home controllers
Handheld diagnostic and testing tools
Industrial control systems
Smart meters and utility terminals
Health monitoring and medical equipment
IoT edge devices and data loggers
Mini consumer electronics
Fitness trackers and personal health devices
| Spec | Item | Specifications | Unit |
| Part No. | EQT130HQZ011G | – | |
| Size | 1.3 | inch | |
| Resolution | 240*240 | – | |
| Viewing Angle | Full | – | |
| Active Area | 23.4(H)×23.4(V) | mm | |
| Outline Dimension(mm) | 30(W)×30(H)×4.09(D) | mm | |
| Driver IC | ST7789V2-G4 | – | |
| Touch Function | CTP | – | |
| Brightness(Cd/m2) | 550 | Cd/m2 | |
| Interface | SPI | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
