10.1 Inch High-Brightness TFT LCD Touch Display 800×1280 | MIPI Interface Industrial Panel with GTP Touch
Share：
10.1 inch LED High-Brightness TFT Touch Display–Industrial-Grade LCD Big Size Solution
Introducing our 10.1inch LED high-brightness tft touch display panel, a premium lcd big size solution engineered for industrial environments and demanding commercial applications. This TFT touch display module combines vivid visuals, reliable performance, and responsive touch capability, making it ideal for modern human-machine interfaces, outdoor kiosks, smart controllers, and more. With its expansive display area, excellent brightness, and robust design, this 10.1inch led tft touch display delivers an outstanding user experience even under challenging environmental conditions.
Product Overview: Large-Format TFT Touch Display for Next-Gen Applications
Our lcd big size 10.1inch led tft touch display offers a high-performance visual interface with a sharp 800×1280 resolution, delivering detailed graphics and crisp images. Featuring a wide viewing angle and optimized optical design, this panel ensures consistent clarity across the entire surface—perfect for industrial control screens, medical monitoring equipment, intelligent retail terminals, automotive displays, marine navigation systems, and other high-demand environments.
The integrated touch sensor enhances interactivity, enabling precise and responsive input for user interfaces from simple menus to complex touch operations. With rugged build quality and wide operating temperature tolerance, this tft touch display is tailored to thrive in extreme conditions and continuous industrial operation.
Key Features
（1）Large Size & Superior Display
- LCD Big Size – 10.1-inch diagonal display area for richer content presentation and expansive visuals.
- Resolution: 800 × 1280 pixels ensures sharp, detailed imagery and excellent reading clarity.
- Wide Viewing Angle: IPS technology for consistent colors and contrast from multiple viewing positions.
- Brightness: High-brightness panel optimized for vibrant color and visibility, even under strong ambient lighting.
（2）Responsive Touch Interface
- GT Touch (GTP) Technology: Accurate and smooth touch control, enabling precise user interaction and quick response time.
- Multi-Touch Support: Seamless integration with modern touch applications and interactive UIs.
- Ease of integration into industrial HMI systems and touchscreen product designs.
（3）Robust Industrial Design
- MIPI Interface: High-speed data transmission for smooth visual updates and responsive touch performance.
- Operating Temperature Range: Designed to withstand a wide operating temperature spectrum for industrial and outdoor conditions.
- Reliable craftsmanship and strong components ensure durability in extended-use scenarios.
Technical Specifications (Core Highlights)
Parameter | Specification |
Display Size | 10.1 inches |
Resolution | 800 × 1280 |
Display Type | TFT LCD Panel |
Touch Type | GTP Touch Panel |
| Interface | MIPI |
| Brightness | High Brightness (optimized for readability) |
| Viewing Angle | Full IPS viewing angle |
Active Area | Large, optimized for wide content display |
Operating Temp. | –20°C to 60°C (typical) |
| Storage Temp. | –30°C to 70°C (typical) |
Application Scenarios — Where This LCD Big Size Display Excels
The 10.1inch led tft touch display is designed to support demanding applications across various industries, including but not limited to:
（1）Industrial Control Systems
Integrate this tft touch display into machine interfaces, PLC panels, factory automation consoles, and industrial IoT dashboards for reliable performance in real-time operations.
（2）Medical & Healthcare Instruments
Use in diagnostic devices, patient monitoring screens, and smart healthcare terminals that benefit from large, readable displays and intuitive touch controls.
（3）Professional Navigation & Transportation
Ideal for marine navigation panels, vehicle dashboards, and intelligent transportation terminals where clarity and responsiveness are crucial.
（4）Retail Self-Service Terminals
Deploy in self-checkout kiosks, information booths, and interactive advertising units where users interact frequently with the tft touch display.
Conclusion
In summary, our 10.1inch LED tft touch display is a standout lcd big size display solution that balances visual excellence, intuitive touch interaction, and industrial-grade robustness. Whether you’re upgrading an existing system or designing a new interactive display product, this tft touch display is engineered to meet your performance expectations and environmental challenges. With its expansive display size and dependable response, this 10.1inch led tft touch display is an ideal choice for high-performance applications across multiple industries.
| Item | Specifications | Unit |
| Part No. | EQTA01BKI020P | – |
| Size | 10.1 | inch |
| Resolution | 800*1280 | – |
| Viewing Angle | Full | – |
| Active Area | 135.36(H)×216.58(V) | mm |

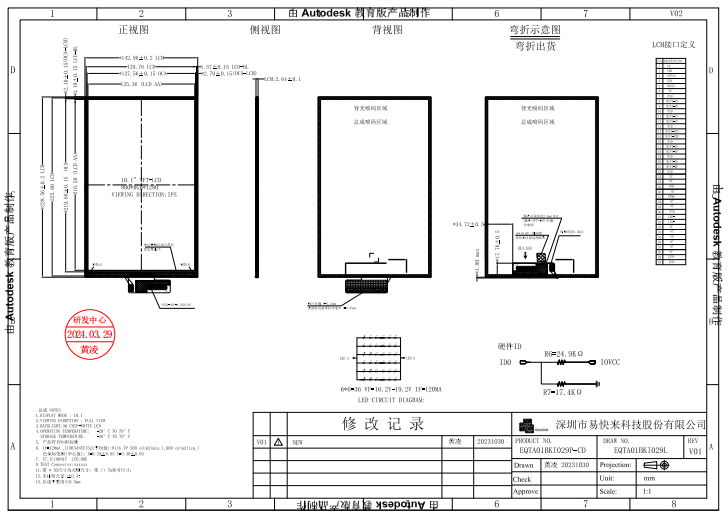

| Outline Dimension(mm) | 158.8(W)×243.3(H)×4.82(D) | mm |
| Driver IC | ILI9881C（TFT） GT928（CTP） | – |
| Touch Function | GTP | – |
| Brightness(Cd/m2) | 650 | Cd/m2 |
| Interface | MIPI | – |
| Storage Temp. | －30 TO 70 | ℃ |
| Operation Temp. | －20 TO 60 | ℃ |
Why Choose This 10.1-inch LED TFT Touch Display?
- Large panoramic display surface: The lcd big size provides enough real estate for rich interface layouts and immersive visuals.
- Multi-industry versatility: Built for industrial, commercial, and consumer applications alike.
- Reliable performance under harsh conditions: High brightness and rugged design for long-term reliability.
- Enhanced user interaction: Smooth multi-touch response empowers modern interactive applications.
Integration & Support
Designed for easy integration into embedded systems and industrial platforms, this 10.1inch led tft touch display supports standard MIPI interface connections. Our engineering team can assist with technical documentation, driver support, and tailor-made solutions for specific hardware projects.
