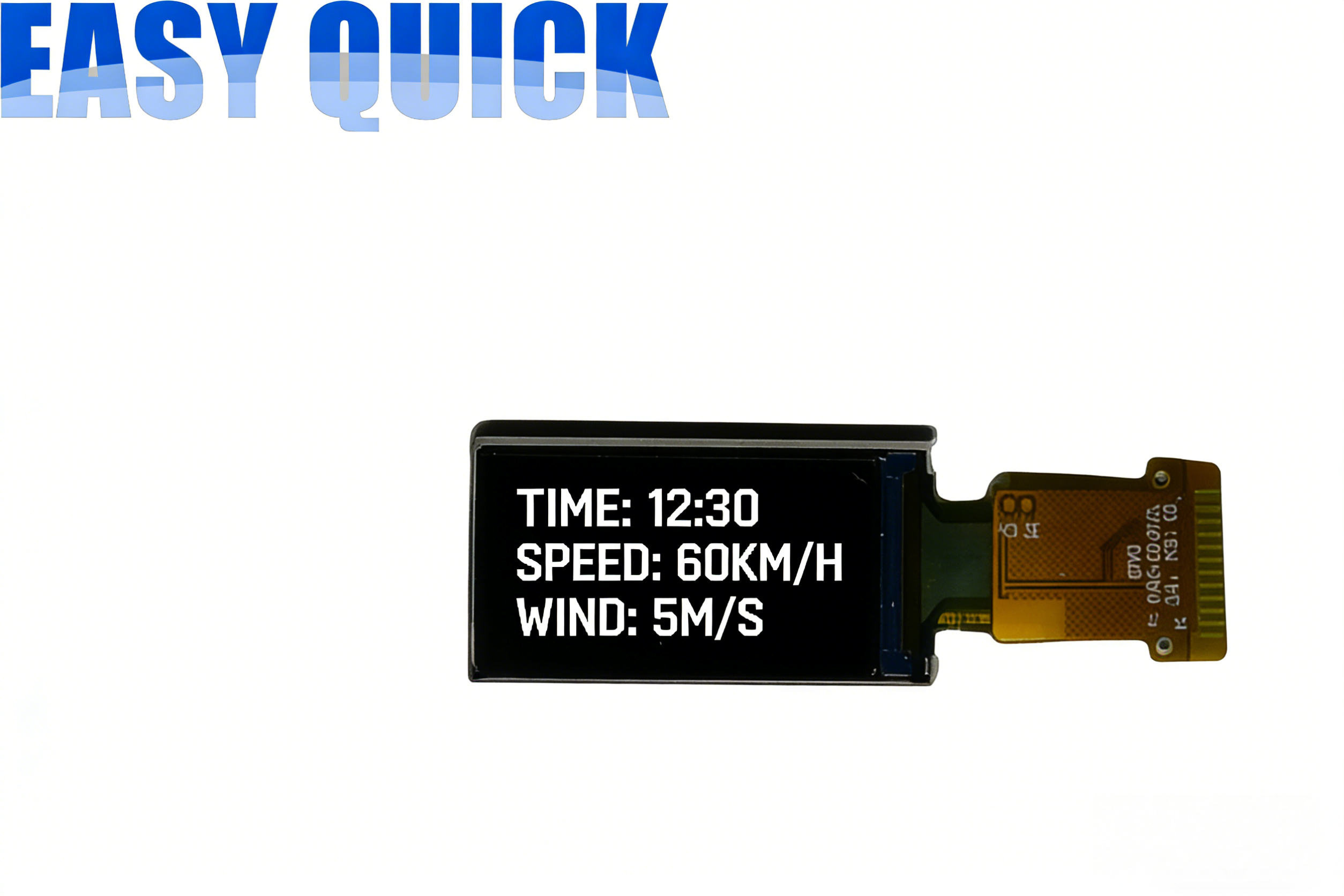

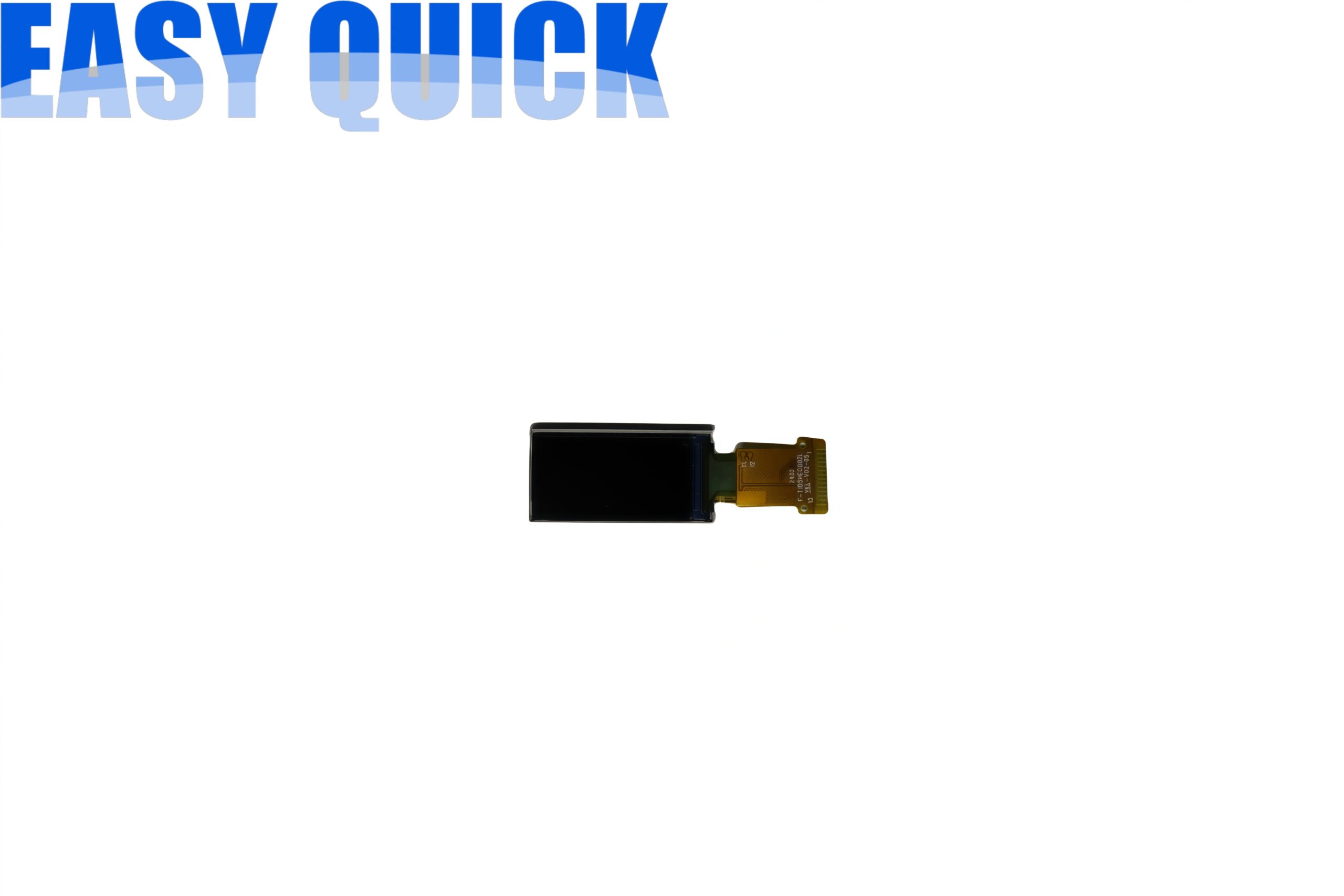

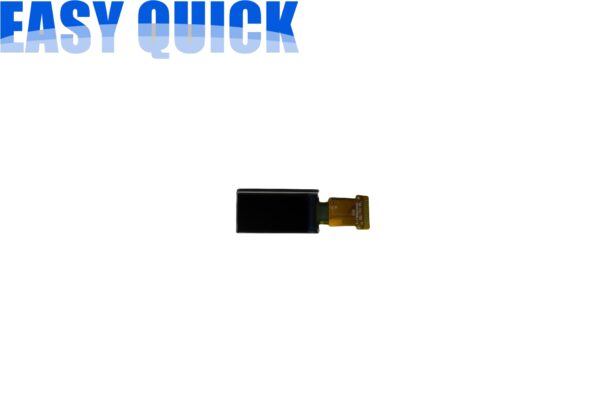

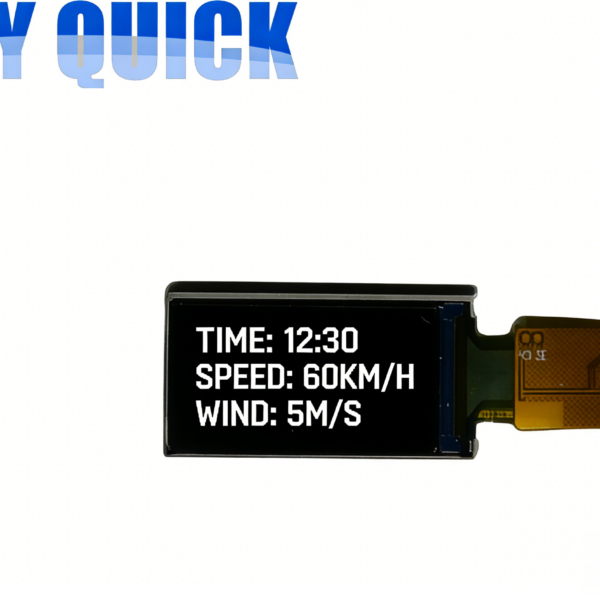

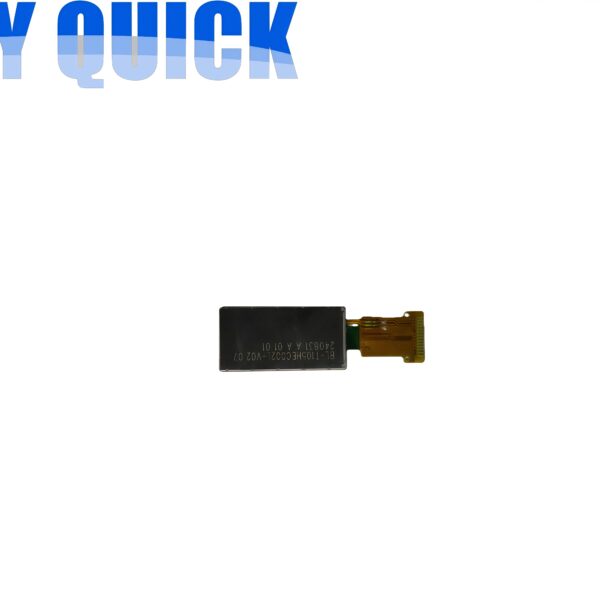

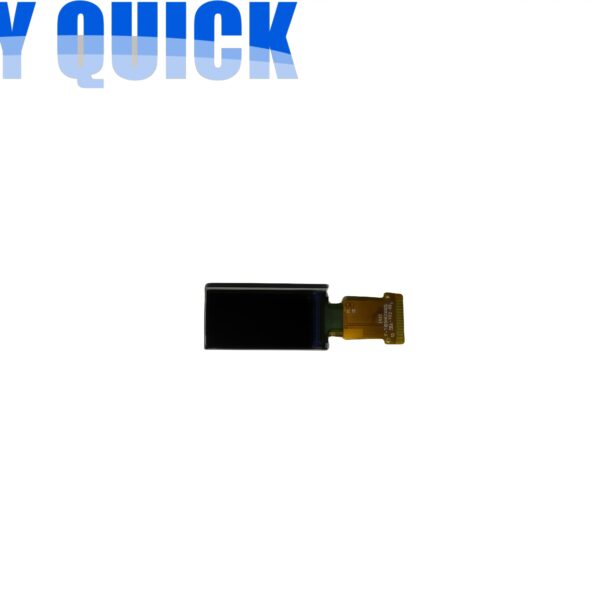

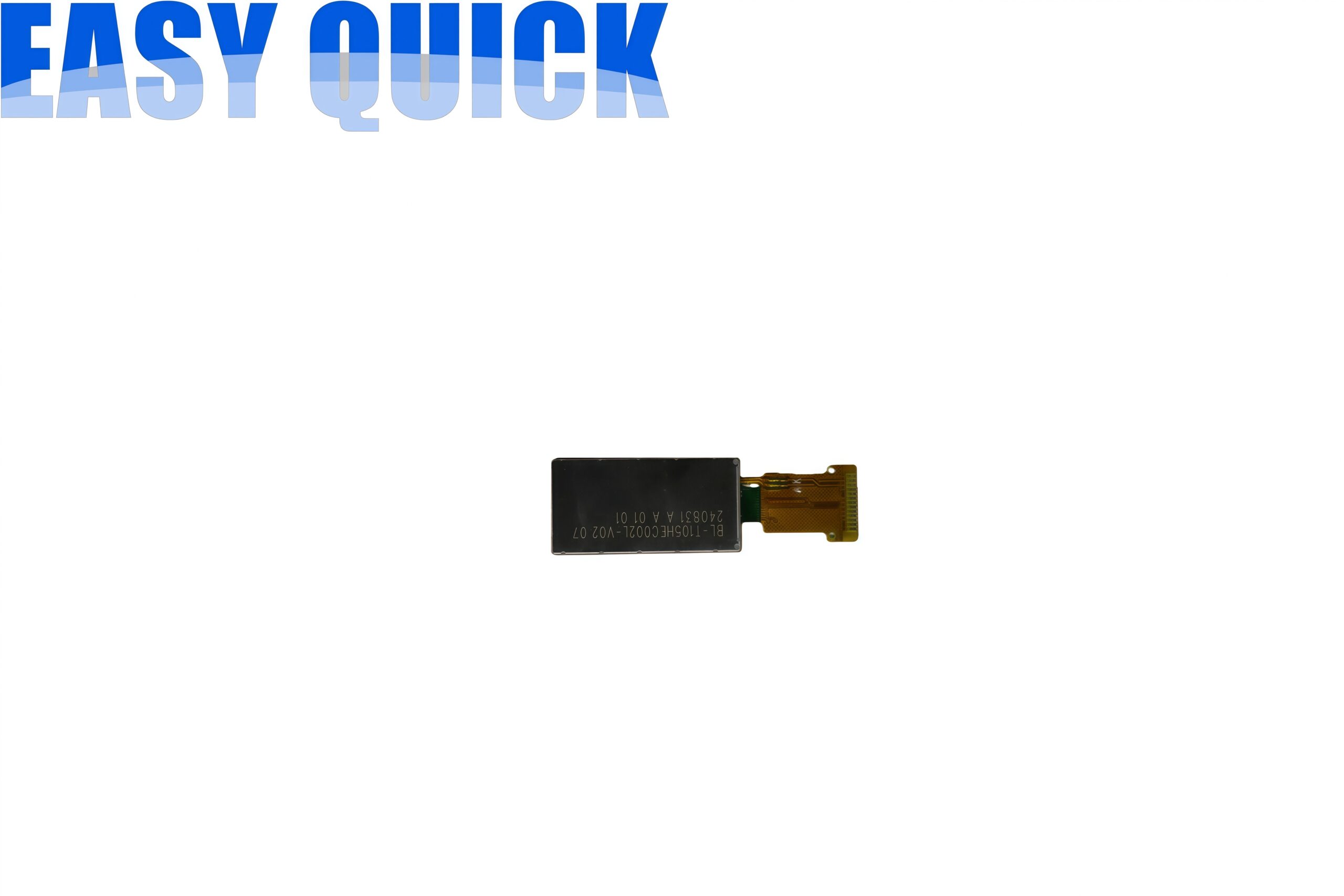

1.05-Inch 120×240 65K Color SPI Interface TFT LCD Module
Share：
1.05-Inch LCD Module | Easyquick Compact TFT Display Solution
Easyquick’s 1.05-inch LCD module has been specifically designed for ultra-compact electronic products that require not only optimal visualization but also optimal performance and power consumption in extremely limited space. The module itself has been based upon a 120×240 resolution TFT display with optimal levels of brightness, contrast, and speed.
Visual Performance
The 1.05-inch LCD Module is small in size but provides consistent performance for day-to-day use.
- Resolution: 120×240, optimized for vertical UI layout
- Color Depth: 65k colors for clear icons, text, and graphics
- Brightness: 1800 cd/m², which is standard, to ensure maximum readability in high ambient conditions
- Contrast Ratio: 1000:1 – Enhanced Text Resolution and UI Separation
- Response Time: Approximately 30 ms. The response time is appropriate and within the expected limit for the display of information and simple animations.
The TFT arrangement guarantees the stability of the color output for a range of viewing angles, while the 1.05-inch LCD module is a handheld type.
Compact Design of Mechanisms
One of the important benefits provided by the 1.05-inch LCD Module is its space efficiency. Its dimensions are 15.25(W) × 30.1(H) × 3(D) mm. It would make a good fit in a small enclosure. Design highlights:
- Edge Light White LED Backlight (2 LEDs, 1S2P)
- Balance Brightness with Balanced Power Consumption
- It is designed to run for a long period of hours in devices that use batteries
This enables the 1.05-Inch LCD Module to display itself without drawing too much power from a battery, which makes this module useful in wearable electronics.
Operating Stability & Environmental Adaptability
The 1.05-inch LCD module is designed to work effectively in real-world applications and supports:
- Operating Temperature Range: -20 to +70 degrees Celsius
- Stable optical output for temperature changes
- Reliable performance in indoor as well as light outdoor use
This enables the module to operate effectively in consumer electronics, industrial handheld devices, and portable monitoring applications.
Typical Application Scenarios
This 1.05″ LCD Module is particularly suitable for use in those applications in which space is limited, yet at the same time, information needs to be displayed in a very clear manner, such as in the following:
- Wearable electronics and smart accessories
- Compact IoT control panels
- Portable medical/fitness equipment
- Miniature meters, testers, and indicators
- Battery-powered hand tools
- Smart wearables, smart glasses, VR glasses, and ski goggles.
Its ability to offer high luminance, compact size, and communication via the SPI protocol makes the device a viable option in applications that are not only cost-constrained but also size-constrained.
| Spec | Item | Specifications | Unit |
| Part No. | EQT105HEC002L | Unit | |
| Size | 1.05 | inch | |
| Resolution | 120×240 | – | |
| Viewing Angle | Full | – | |
| Active Area | 11.88(H)×23.76(V) | mm | |
| Outline Dimension(mm) | 15.25(W)×30.1(H)×3(D) | mm | |
| Driver IC | GC9A01 | – | |
| Touch Function | without | – | |
| Brightness(Cd/m2) | 1900 | Cd/m2 | |
| Interface | SPI | – | |
| Storage Temp. | －30 TO 80 | ℃ | |
| Operation Temp. | －20 TO 70 | ℃ | |
| Drawing | download | ||
Interface & System Integration
The 1.05-inch LCD Module utilizes the SPI interface, which is popularly used in compact embedded devices. Integration benefits comprise:
- Basic Pin Definition and Wiring
- Compatibility of the device with commonly used MCUs and control boards
- Stability in data transmission for static
Technical support for interface matching and initialization information is also provided by EasyQuick, enabling customers to reduce development time when working with the 1.05-inch LCD Module.
Easyquick Manufacturing & Quality Assurance
Easyquick maintains the same quality standards on every single 1.05-inch LCD Module, from the validation phase to the production phase. Manufacturing and quality advantages:
- Automated production process
- Optical inspection process
- Strict incoming material verification
- Electrical and visual performance testing
- Aging and Reliability Check Before Shipment
This ensures that each 1.05-inch LCD Module has consistent performance, which reduces integration risks in long-term projects.
FAQs
Q1: Is this 1.05-Inch LCD Module appropriate for wearable electronics?
Yes. Its small size, low power requirements, and SPI interface make it appropriate for wearables and body-borne electronics.
Q2: Is the brightness of this 1.05-inch LCD module adjustable?
Yes. Brightness control is possible through backlight driving parameter control, dependent on the specific design and power requirements.
Q3: Is the SPI interface supported in common microcontrollers?
The interface is generally compatible with most mainstream MCUs used in compact embedded applications. EasyQuick can help with the interface match.
Why Choose EasyQuick
This is the philosophy behind the easyquick approach: combining the practicalities of engineering, the reliability of manufacturing capacity, and the support of technical assistance to provide robust and reliable small-sized display solutions. The 1.05-Inch LCD Module is a prime example of a display device that eschews unnecessary complexity.
If you need customization discussion, technical specifications, or project evaluation on how our 1.05-inch LCD Module can help on your next project, contact Easyquick.
