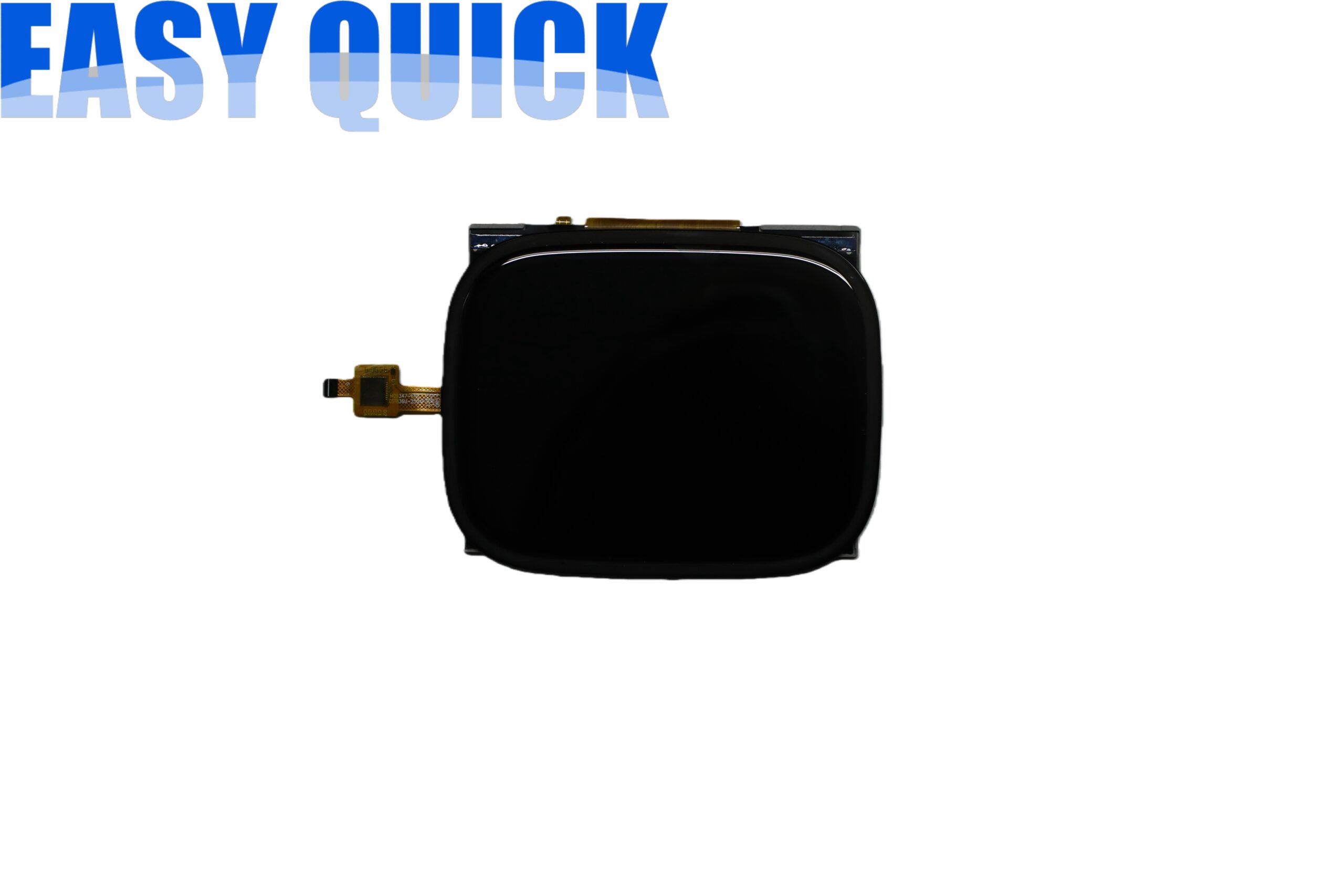

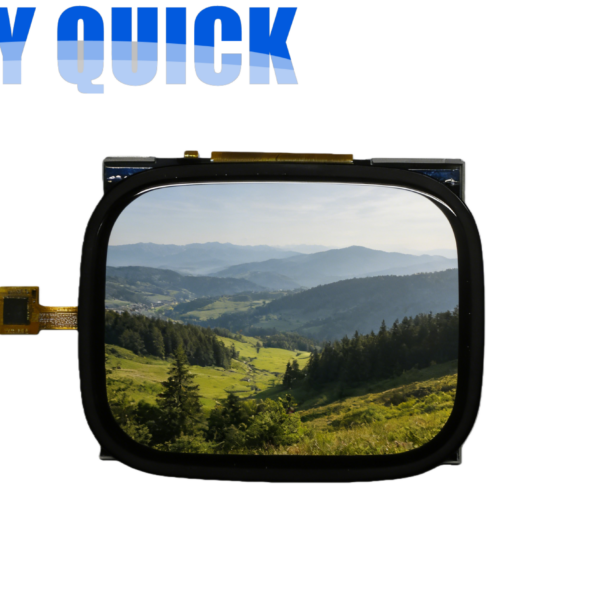

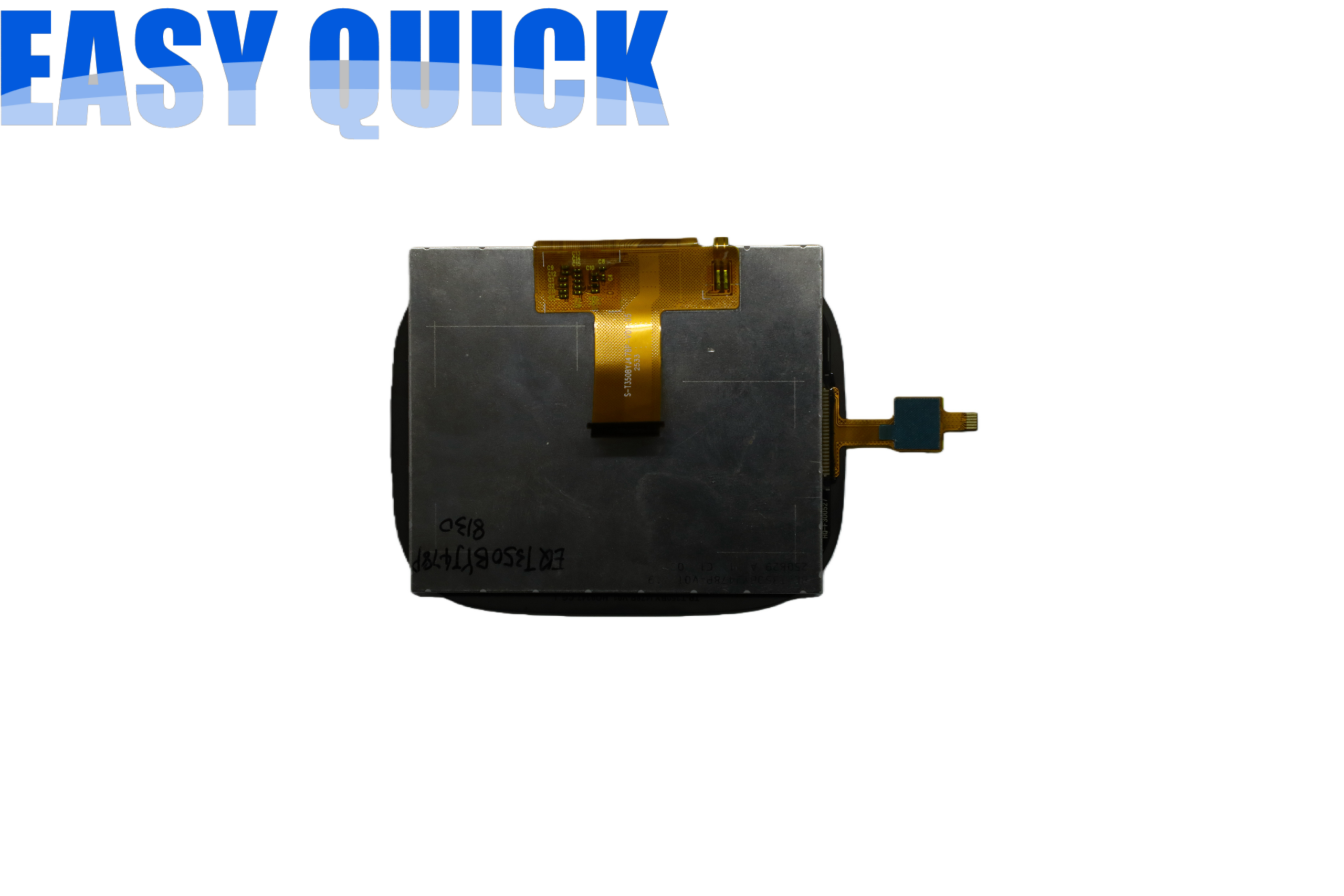

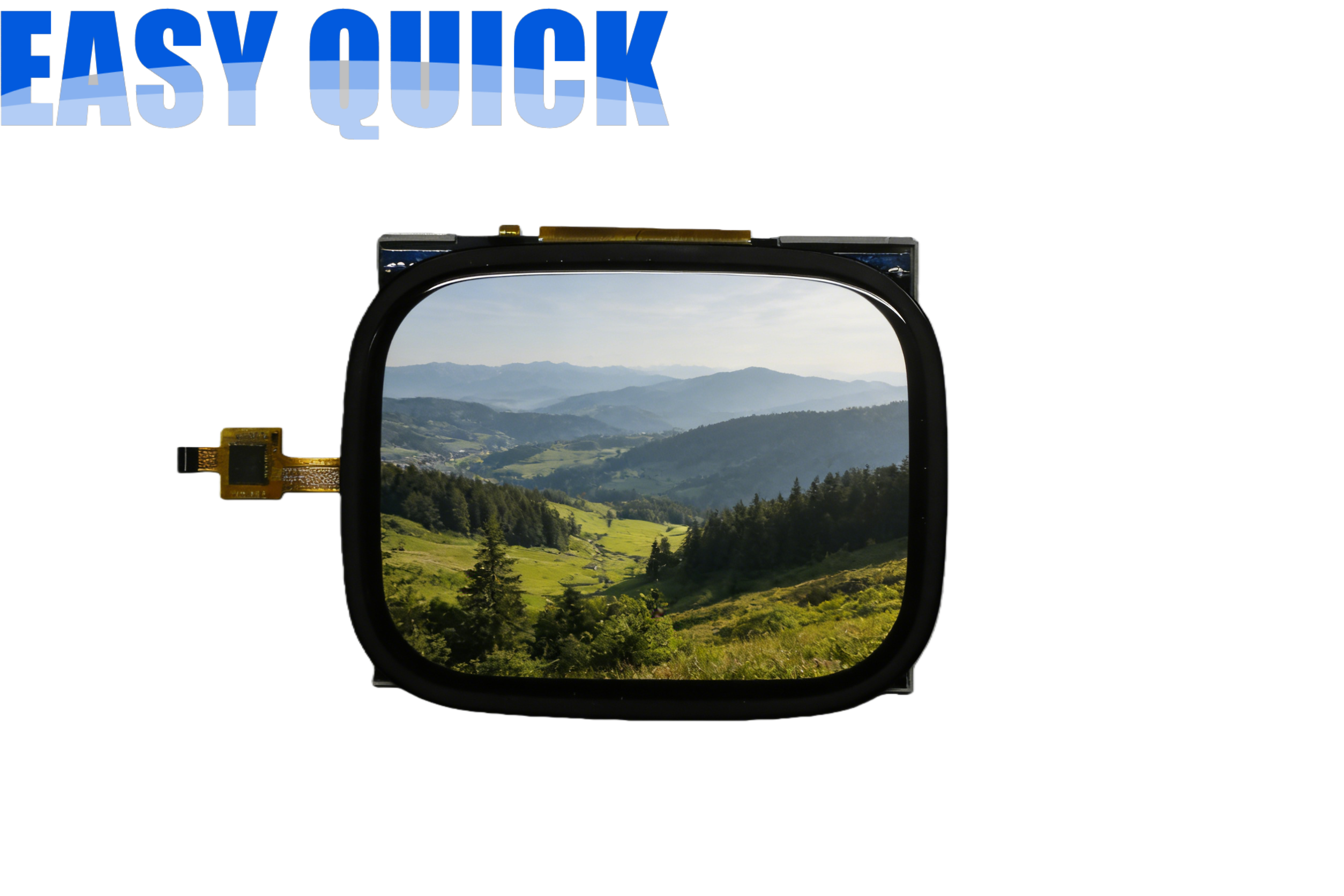

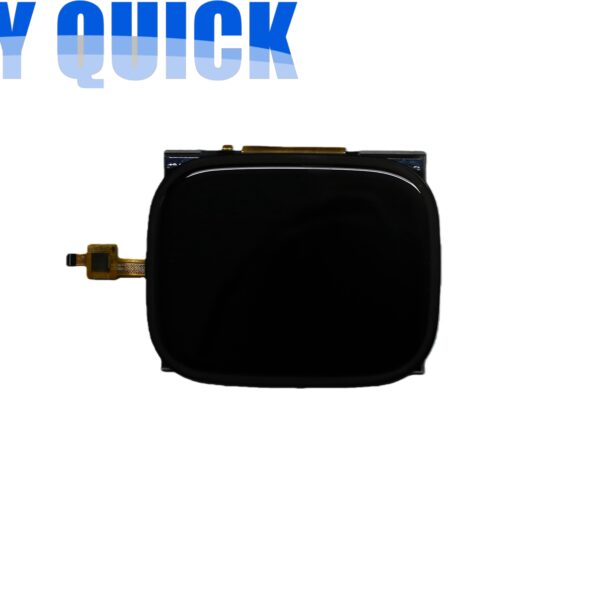

3.5-Inch 640×480 RGB TFT LCD Module for Smart Devices
Mid-range smart devices with 3.5-inch displays
Portable IoT terminal equipment
Entry-level handheld electronic devices
Consumer electronics requiring MIPI interface
Share：
This 3.5-inch 640×RGB×480 TFT LCD module delivers vibrant 16.7M color display, wide full-view angles, and reliable LED backlight performance. Ideal for mass-produced smart devices, it supports customizations including various interface adaptations, brightness adjustments, and cover glass specifications, while featuring stable MIPI communication and robust operating performance in extreme temperatures.
| Spec | Item | Specifications | Unit |
| Part No. | EQT350BYJ529Z | Unit | |
| Size | 3.5 | inch | |
| Resolution | 640×RGB×480 | – | |
| Viewing Angle | Full | – | |
| Active Area | 70.08(H)×52.56(V) | mm | |
| Outline Dimension(mm) | 82.93(W)×65.37(H)×4.59(D) | mm | |
| Driver IC | JD9365DA | – | |
| Touch Function | without | – | |
| Brightness(Cd/m2) | 400 | Cd/m2 | |
| Interface | MIPI | – | |
| Storage Temp. | －30 TO 80 | ℃ | |
| Operation Temp. | －20 TO 70 | ℃ | |
| Drawing | download | ||
