When selecting a 10.1 inch IPS display module, many engineers ask the same question: is IPS really better than a standard TFT panel, or is it just a marketing term?
The answer depends on your application, environment, and budget. While both IPS and standard TFT (typically TN-based) belong to the TFT LCD family, their performance characteristics can differ significantly. Understanding those differences helps avoid over-specifying — or worse, under-specifying — your display.

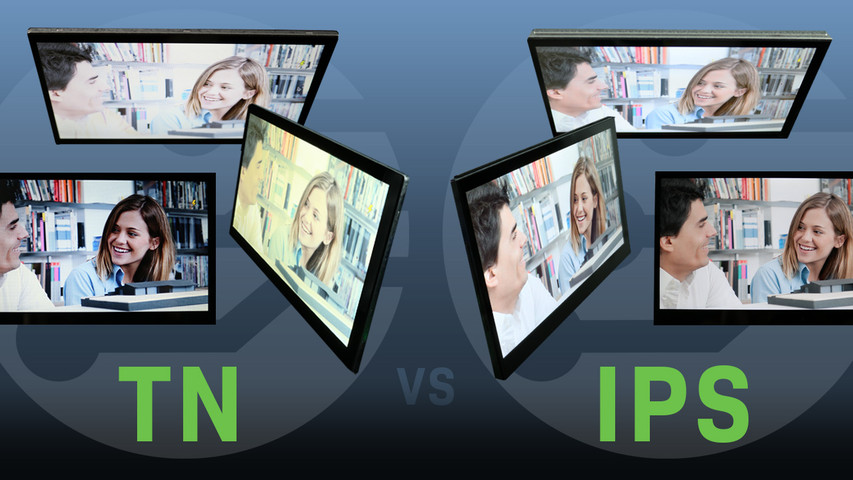

What Is the Difference Between IPS and Standard TFT?
Technically, IPS is a type of TFT LCD technology. The key difference lies in how liquid crystals are aligned and how they control light.
Standard TFT (TN technology):
Faster response time
Lower cost
Narrower viewing angles
Color shift when viewed from the side
IPS (In-Plane Switching):
Wide viewing angles (up to 178°)
Better color consistency
More stable contrast from different directions
Slightly higher cost
So when comparing a 10.1 inch IPS display module with a standard 10.1 inch TFT module, the core difference is visual performance and viewing stability.
Viewing Angle: When It Really Matters
For devices mounted at eye level and viewed straight-on — such as certain embedded control panels — a standard TFT panel may be sufficient.
However, if your device:
Is mounted vertically
Is viewed by multiple users from different positions
Is installed in kiosks or POS terminals
Requires accurate color presentation
Then a 10.1 inch IPS display module becomes the safer and more professional choice.
In industrial and medical environments, wider viewing angles can significantly improve usability.
Brightness and Outdoor Performance
Both IPS and standard TFT panels can be manufactured in different brightness levels. The panel type itself does not determine brightness — the backlight system does.
For indoor use:
300–400 nits is common
For bright indoor or semi-outdoor:
500–800 nits is recommended
For outdoor readability:
1000+ nits with optical bonding
When evaluating a 10.1 inch IPS display module, focus not only on panel type but also on brightness specifications and surface treatment.
Power Consumption and Cost
IPS panels typically consume slightly more power due to their structure, although the difference is not dramatic in modern designs.
Cost-wise, IPS modules are generally higher priced than standard TN-based TFT modules. If your product is cost-sensitive and does not require wide viewing angles, a standard TFT may be a practical solution.
But for mid-to-high-end equipment, IPS has increasingly become the default choice.
Typical Applications
Standard TFT (TN):
Basic industrial controllers
Entry-level embedded systems
Cost-driven projects
Industrial HMI systems
Medical diagnostic equipment
POS and self-service terminals
Smart home control panels
Android-based embedded devices
In recent years, many OEM manufacturers prefer IPS for new product designs due to improved user experience and market expectations.
Which One Should You Choose?
Choose a standard TFT panel if:
Budget is highly constrained
Viewing angle is not critical
Device is fixed in a front-facing position
Choose a 10.1 inch IPS display module if:
Wide viewing angles are required
Product positioning is mid-to-high end
Visual quality affects user experience
Multiple users interact with the device
For most modern industrial and commercial applications, IPS is becoming the more future-proof option.
Need a Reliable 10.1 Inch IPS Display Module for Your Project?

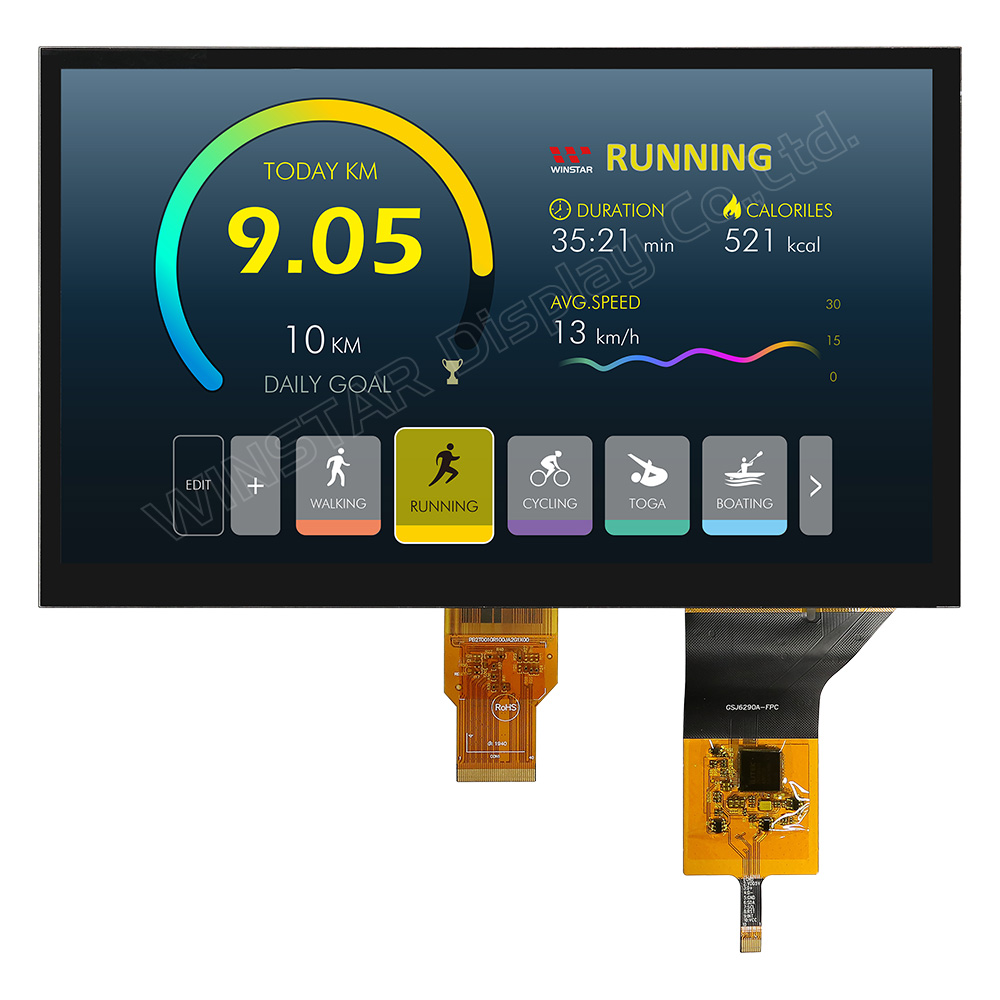

At Shenzhen Easy Quick Technology Co., Ltd., we supply high-quality TFT LCD modules tailored for industrial and OEM applications. Our 10.1 inch IPS display module solutions support multiple interface options (LVDS, RGB, MIPI), capacitive touch integration, high-brightness customization, and wide operating temperature ranges.
Whether you require a standard configuration or a fully customized design, our engineering team can assist with:
Interface matching
FPC customization
High-brightness enhancement
Optical bonding
Long-term supply programs
If you are evaluating a 10.1 inch IPS display module for your next product, feel free to contact us for detailed specifications, samples, or technical support.
We are ready to support your project from development to mass production.
