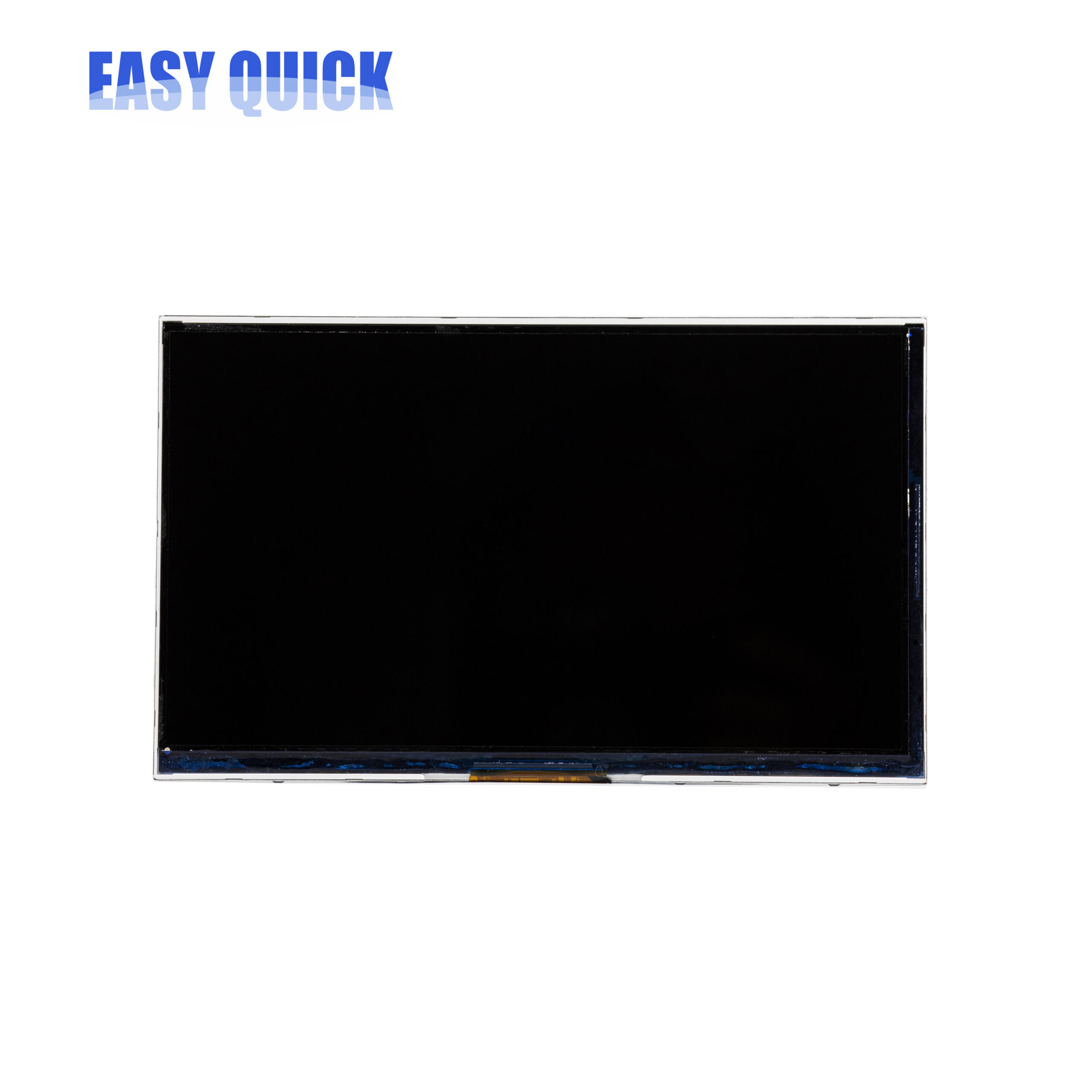

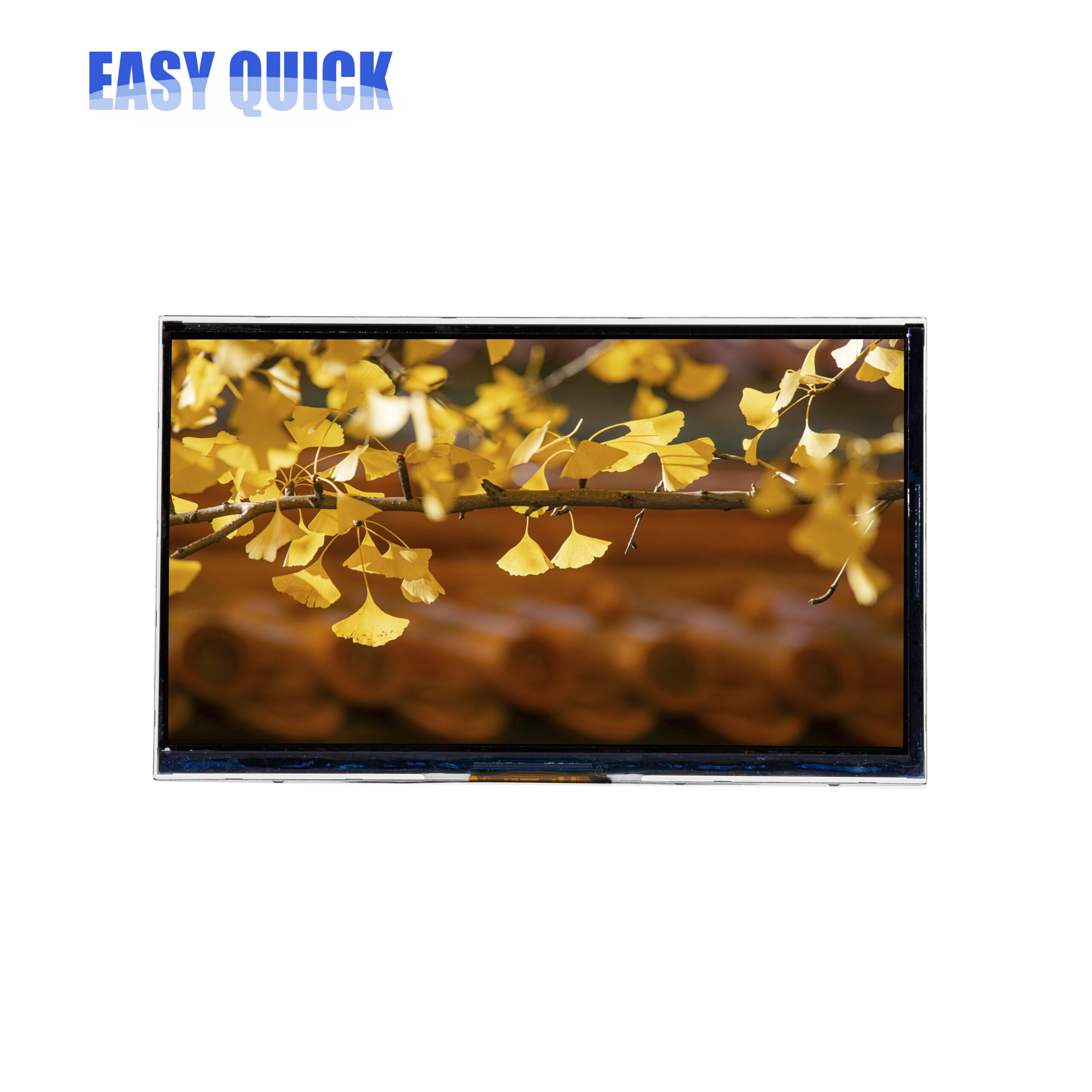

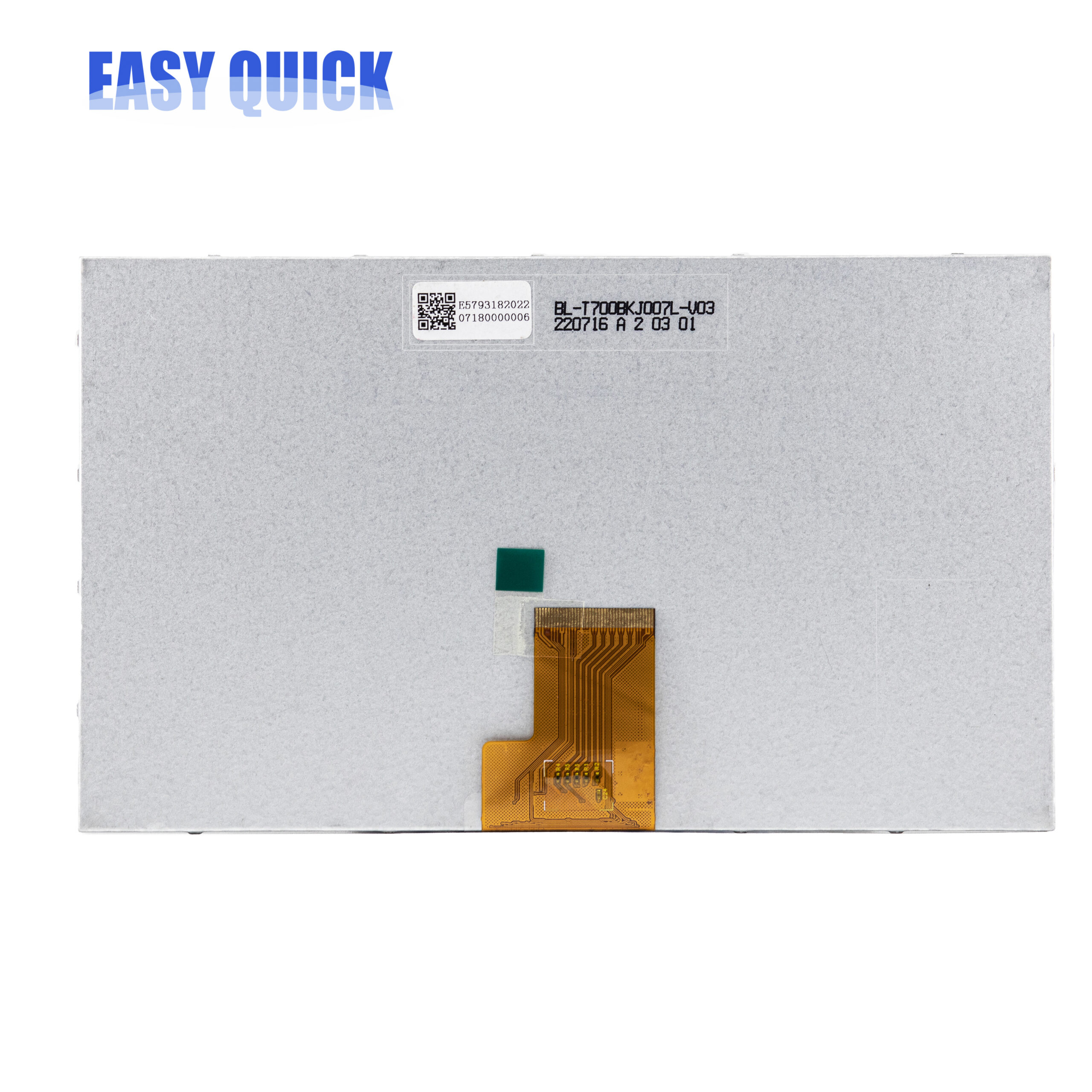

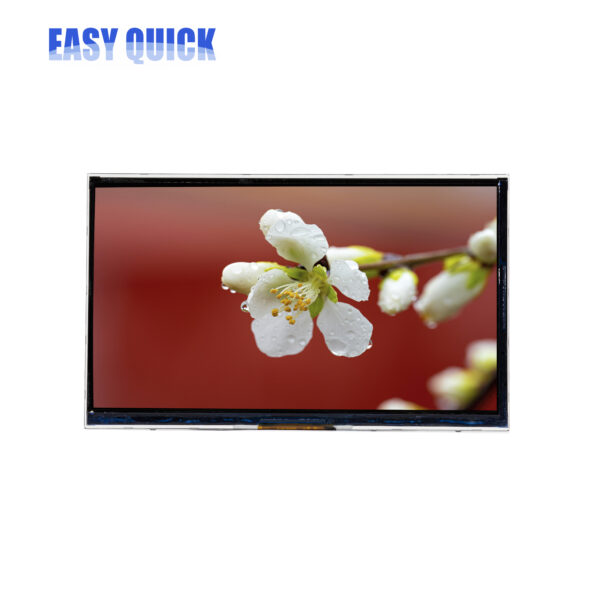

7 Inch TFT LCD Display 800×480 Horizontal Screen Module
The 7 inch TFT LCD display offers an 800×480 WVGA resolution with a wide horizontal layout, providing clear visuals and stable brightness. Its larger viewing area makes it ideal for applications that require intuitive interfaces and reliable performance. With strong durability and flexible integration options, this module is widely used in both consumer electronics and industrial solutions.
Share：
Industrial control panels and HMI systems
Automotive displays (dashboard, rear-view, navigation)
Smart home appliances
POS terminals and vending machines
Educational and training equipment
Medical instruments with larger screens
| Spec | Item | Specifications | Unit |
| Part No. | EQT700CYJ012L | – | |
| Size | 7 | inch | |
| Resolution | 800×480 | – | |
| Viewing Angle | 6 o’clock | – | |
| Active Area | 154.08(H)×85.92(V) | mm | |
| Outline Dimension(mm) | 165(W)×100(H)×7.25(D) | ||
| Driver IC | EK79713CA+EK73202AB2 | – | |
| Touch Function | WITHOUT | – | |
| Brightness(Cd/m2) | 400 | Cd/m2 | |
| Interface | RGB | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
