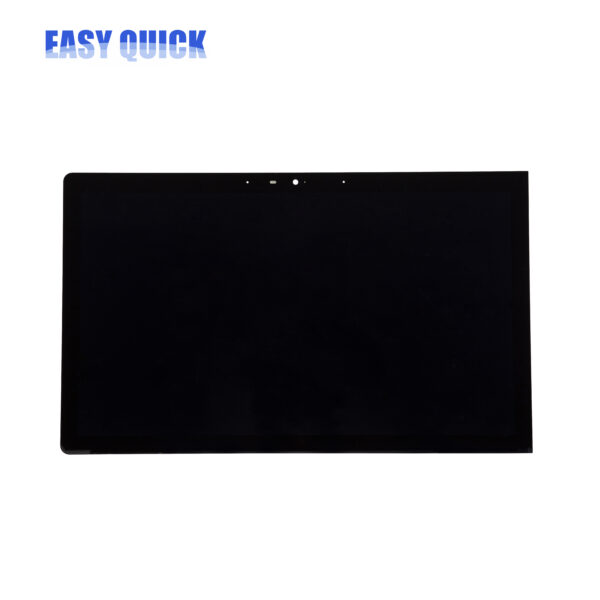

15.6” Full HD LCD Display Panel | 1920×1080 Resolution
The 15.6-inch Full HD LCD display panel delivers a crisp 1920×1080 resolution with wide viewing angles, high brightness, and excellent color reproduction. Designed for versatility, it ensures stable performance in both consumer and industrial environments. Its slim design, low power consumption, and robust reliability make it ideal for integration into devices requiring immersive visuals and responsive user interaction. This panel is well-suited for industrial monitoring systems, medical instruments, smart home interfaces, and next-generation learning and entertainment platforms.
Share：
Industrial control terminals
Smart home appliances
Medical monitoring equipment
Gaming devices and entertainment systems
Educational tablets and e-learning tools
| Spec | Item | Specifications | Unit |
| Part No. | EQT156BRH401P | – | |
| Size | 15.6 | inch | |
| Resolution | 1920*1080 | – | |
| Viewing Angle | FULL VIEW | – | |
| Active Area | 344.16(H)×193.59(V) | mm | |
| Outline Dimension(mm) | 376.64(W)×242.64(H)×5.77(D) | ||
| Driver IC | GT9110H(CTP) | – | |
| Touch Function | CTP | – | |
| Brightness(Cd/m2) | 290 | Cd/m2 | |
| Interface | eDP | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
