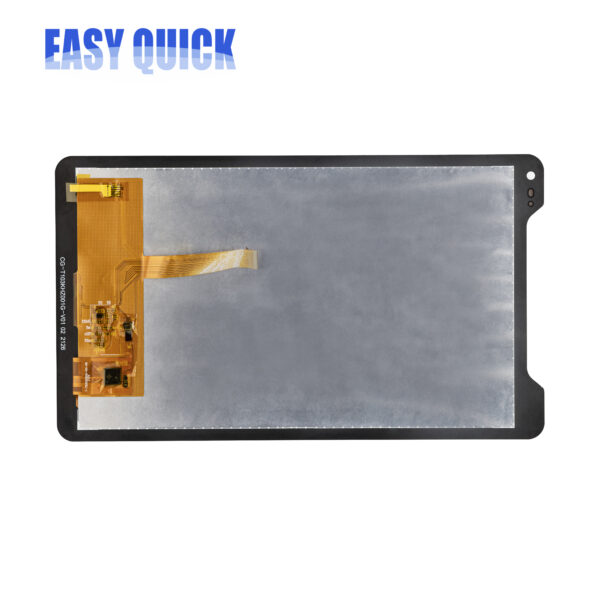

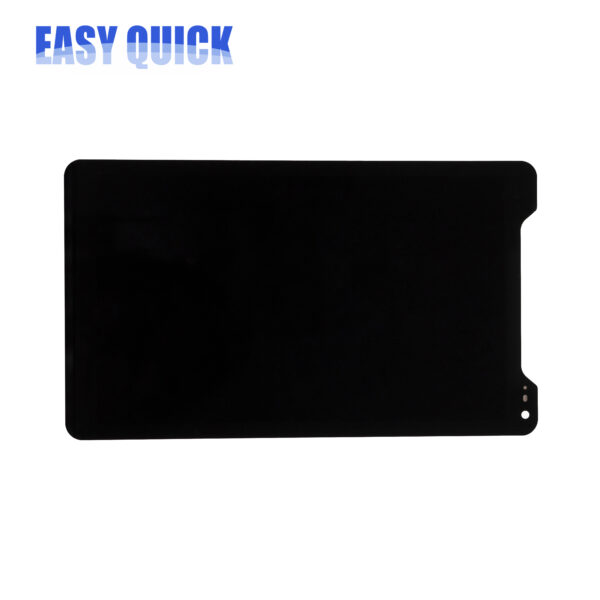

13.3” Portable Full HD LCD Module | 1920×1080 Resolution
The 13.3-inch Full HD LCD module combines compact size with outstanding 1920×1080 resolution, delivering sharp images and smooth video playback. Engineered with lightweight materials and a slim profile, this display is optimized for portable and battery-powered devices. With wide viewing angles, high contrast, and reliable performance, it provides an excellent balance of mobility and visual quality, making it a preferred choice for next-generation smart and mobile applications.
Share：
Ultra-thin laptops and convertible notebooks
Portable medical instruments and health monitoring devices
Lightweight industrial tablets and field equipment
Smart retail terminals and interactive kiosks
Wearable or mobile computing devices
| Spec | Item | Specifications | Unit |
| Part No. | EQT133BRI448P | – | |
| Size | 13.3 | inch | |
| Resolution | 1920*1080 | – | |
| Viewing Angle | FULL VIEW | – | |
| Active Area | 293.76(H)×165.24(V) | mm | |
| Outline Dimension(mm) | 320.95(W)×199.65(H)×4.83(D) | ||
| Driver IC | TBD(TFT) CHS5472 (CTP) | – | |
| Touch Function | CTP | – | |
| Brightness(Cd/m2) | 280 | Cd/m2 | |
| Interface | EDP | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
