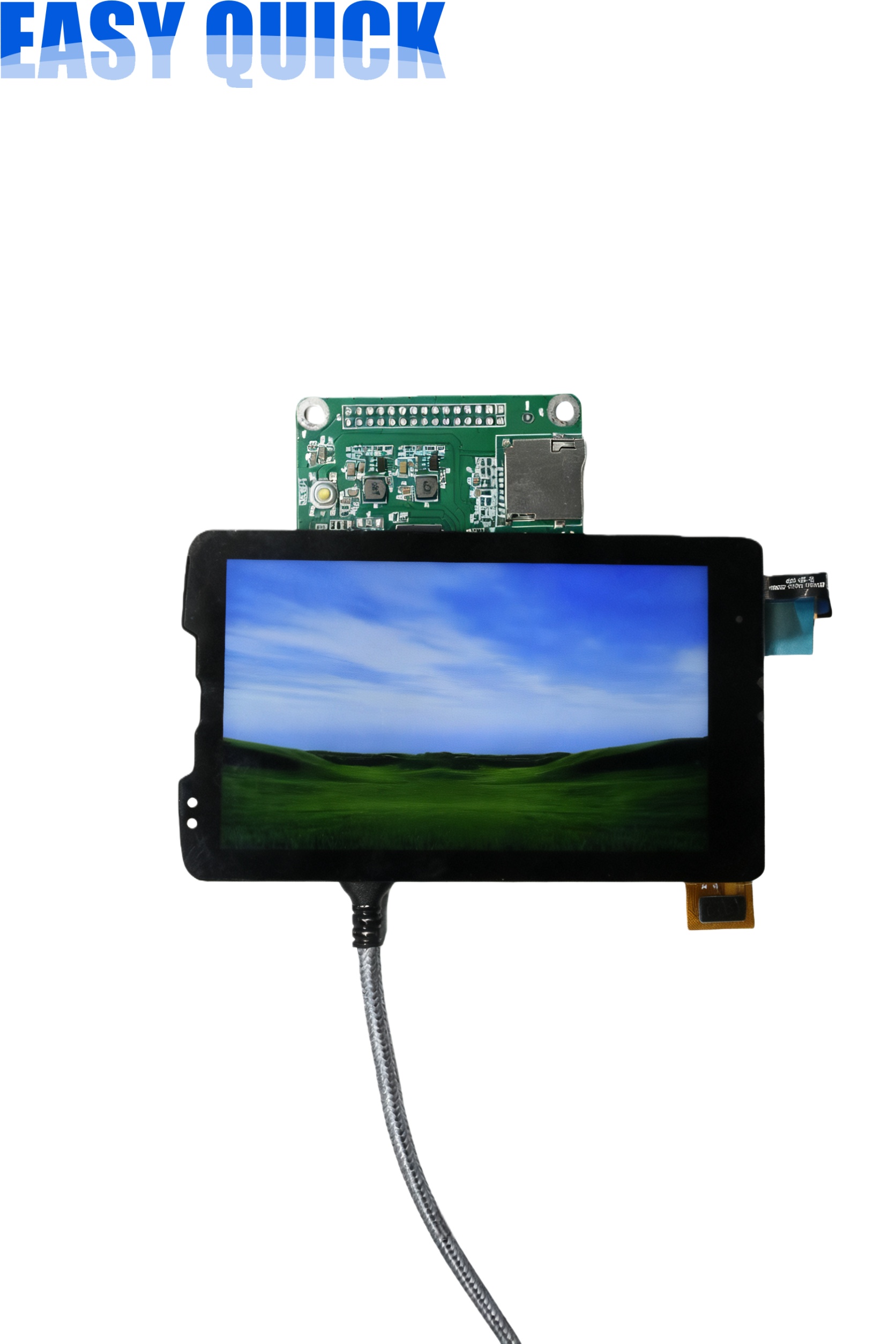

4.0-Inch 480×800 TFT LCD Module with Controller Board | High-Brightness IPS Display
This 4.0-inch 480×800 TFT LCD module features IPS wide viewing angles, excellent color reproduction, and superior outdoor visibility. Integrated with a controller board, it supports rapid development for industrial-grade devices and smart terminals requiring robust and stable display performance.
Share：
Industrial handheld devices
Smart home control panels
POS terminals
Medical equipment
E-bike and scooter dashboards
| Item | Specifications | Unit |

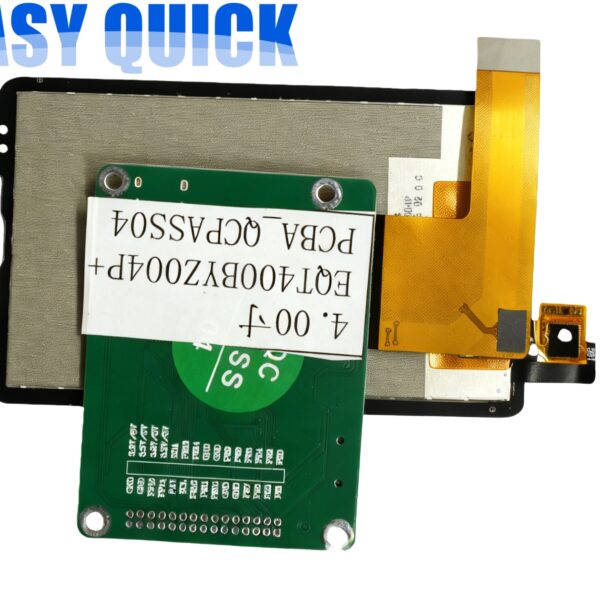

| Part No. | EQT400BYZ004B – PCBAmonitor | Unit |
| PCBA input module | XBT009-V01 | |
| Size | 4.0 | inch |
| Resolution | 480*800 | – |
| Viewing Angle | Full | – |
| Active Area | 51.84(H)×86.40(V) | mm |
| Outline Dimension(mm) | 63.10(W)×104.18(H)×3.77(D) | mm |
| Driver IC | ST7789V2-G4 | – |
| Touch Function | WITHOUT | – |
| Brightness(Cd/m2) | 440 | Cd/m2 |
| Storage Temp. | －30 TO 70 | ℃ |
| Operation Temp. | －20 TO 60 | ℃ |
| InputVoltage | +5V(MicroUSB) | |
| GreenStandards | RoHSCompliant | |
| DisplayCommandSet | MIPI-2LANE、SPI、MCU8080 |
