Introduction
Outdoor and industrial display applications demand display modules that go beyond ordinary performance. Whether used in factory automation systems, outdoor kiosks, vehicle dashboards, or smart farming equipment, LCD modules in these environments must withstand harsh conditions—strong sunlight, temperature variations, dust, and vibration. This article explores key display technologies and enhancement methods to help you determine which LCD module is best suited for outdoor and industrial use.
1. Understanding the Challenges of Outdoor and Industrial Displays
Compared to consumer devices, outdoor and industrial displays face much tougher conditions. The primary challenges include:
- High ambient light: Direct sunlight can easily wash out the display.
- Temperature extremes: Industrial settings may range from -30°C to +80°C.
- Environmental exposure: Dust, moisture, and vibration can reduce performance and lifespan.
- Long operation cycles: Devices often run continuously, requiring stable performance and durability.
To meet these challenges, manufacturers must select display modules with enhanced brightness, durability, and readability.
2. Choosing the Right Outdoor / Industrial Display
High‑Brightness TFT with Optical Enhancements
Modern TFT LCD modules equipped with ultra‑bright backlights (typically 1000 nits or higher) are the most practical solution for outdoor and industrial use. To further enhance visibility, technologies such as anti‑reflective (AR) coatings, anti‑glare surfaces, and optical bonding are commonly applied. These treatments improve contrast, reduce reflection, and maintain clear visibility even under direct sunlight.
Advantages:
- Excellent color performance and image sharpness
- High brightness for strong sunlight readability
- Compatible with touch panels and various interface types
Best for: Outdoor kiosks, industrial control panels, vehicle dashboards, and public information systems
Reflective LCD (Optional Use Case)
Reflective LCDs utilize ambient light rather than a backlight, reflecting external light to make images visible. While these are less common in EasyQuick’s current product range, they can be ideal for ultra‑low‑power or sunlight‑dominant applications.
Advantages:
- Extremely low power consumption
- Excellent visibility under bright sunlight
Best for: Portable or solar‑powered devices
3. Essential Features for Outdoor and Industrial Modules
When selecting a display for harsh environments, consider the following key specifications:
- High brightness (≥1000 nits): Ensures readability in sunlight.
- Wide temperature range: Typically from -30°C to +80°C.
- Rugged construction: Shock and vibration resistance enhances reliability.
- Wide viewing angles: Important for visibility from different positions.
- Optical bonding: Eliminates internal reflections and improves contrast.
- Anti‑reflective / anti‑glare coatings: Reduce sunlight glare for better clarity.

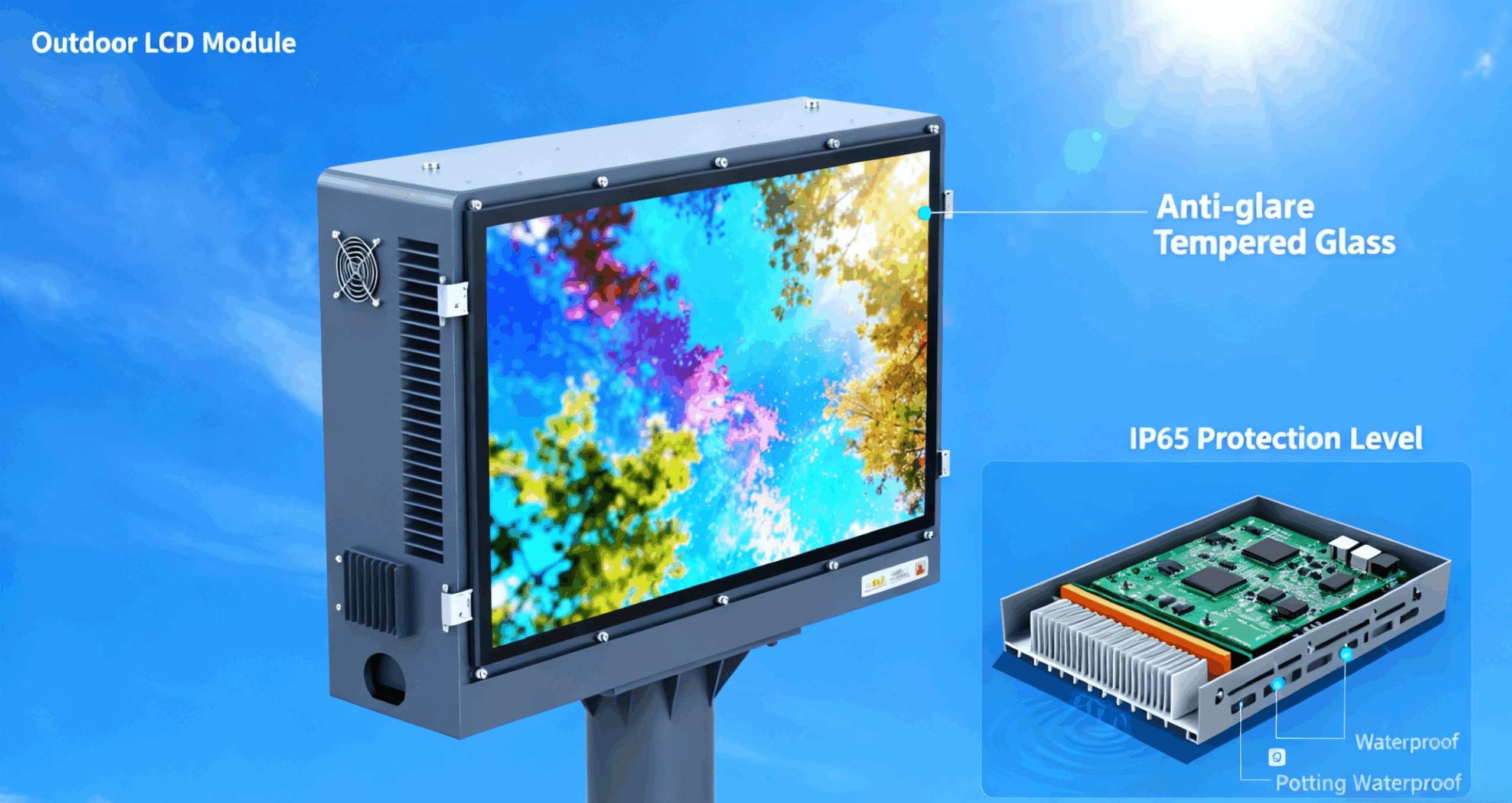

4. EasyQuick’s Outdoor and Industrial LCD Solutions
At Shenzhen Easy Quick Technology Co., Ltd., we focus on developing high‑performance TFT LCD modules designed for outdoor and industrial environments. Our displays feature high brightness, wide temperature tolerance, and optical enhancement options to ensure long‑term stability and readability.
Key Product Highlights:
- High‑brightness TFT LCDs: Up to 1500 nits for outdoor visibility
- Anti‑reflection and anti‑glare surface treatment
- Optical bonding and laminated structures for enhanced contrast
- Industrial‑grade materials ensuring durability and longevity
- Custom options: Touch integration, interface design, and housing support
Applications:
- Industrial HMI panels
- Vehicle and motorcycle displays
- Outdoor kiosks and vending machines
- Smart agriculture and logistics equipment
5. Conclusion
For outdoor and industrial environments, high‑brightness TFT LCD modules with optical enhancements provide the best combination of clarity, durability, and efficiency. By applying anti‑reflective coatings, optical bonding, and wide‑temperature design, these displays can maintain clear performance even in harsh conditions.
At EasyQuick, we specialize in designing rugged, high‑quality display modules that perform reliably where others fail. Whether you need a sunlight‑readable TFT screen or a customized industrial display, our team can deliver the ideal solution for your project.
