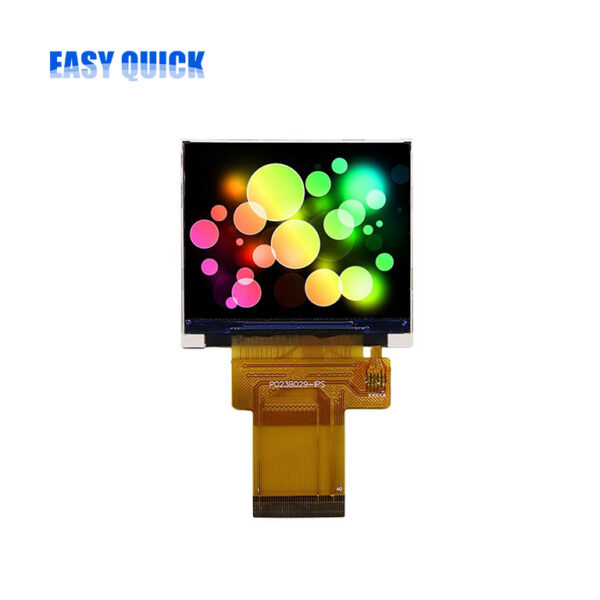

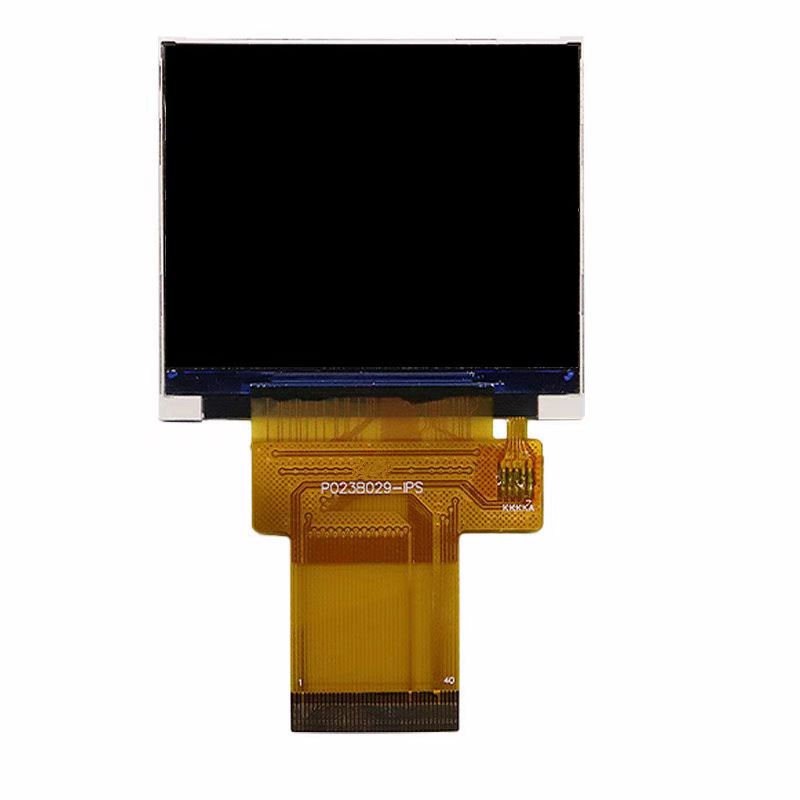

2.0 Inch TFT LCD Display 480×360 | High-Resolution Compact Display for Smart & Industrial Devices
The 2.0-inch TFT LCD display features a high-resolution 480×360 screen, delivering vivid and detailed visuals in a compact footprint. With excellent brightness, color saturation, and wide viewing angles, this display is well-suited for advanced user interfaces in space-limited environments. It supports multiple interface options and offers flexible customization including touch integration, backlight brightness, and FPC shape—ideal for both consumer and industrial-grade products.
Share：
- Smart home interface screens
- Wearable electronics and portable devices
- Industrial handheld terminals
- Automotive secondary displays
- Medical diagnostics and monitoring devices
- IoT and sensor data displays
- Security and access control panels
- Testing and measurement instruments
- Smart POS and payment terminals
| Spec | Item | Specifications | Unit |
| Part No. | EQT200HJZ001L | – | |
| Size | 2 | inch | |
| Resolution | 480*360 | – | |
| Viewing Angle | Full | – | |

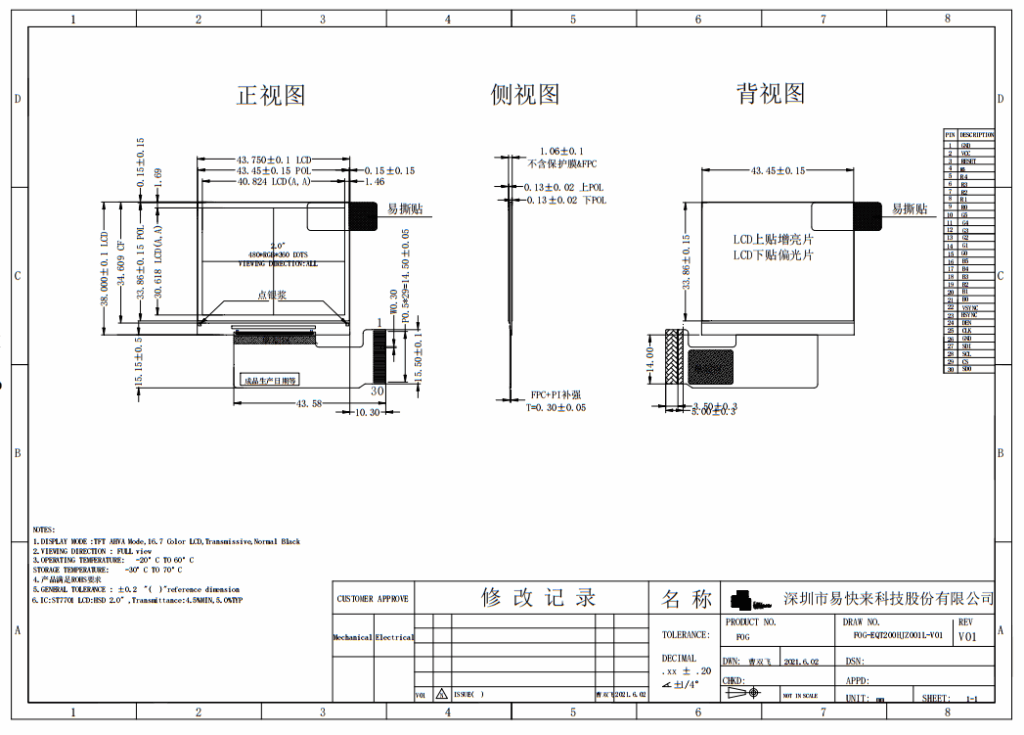

| Active Area | 40.824(H)×30.618(V) | mm | |
| Outline Dimension(mm) | 40.75(W)×38.00(H)×1.06(D） | mm | |
| Driver IC | ST7701 | – | |
| Touch Function | Without | – | |
| Brightness(Cd/m2) | 350 | Cd/m2 | |
| Interface | SPI/RGB/MIPI | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
