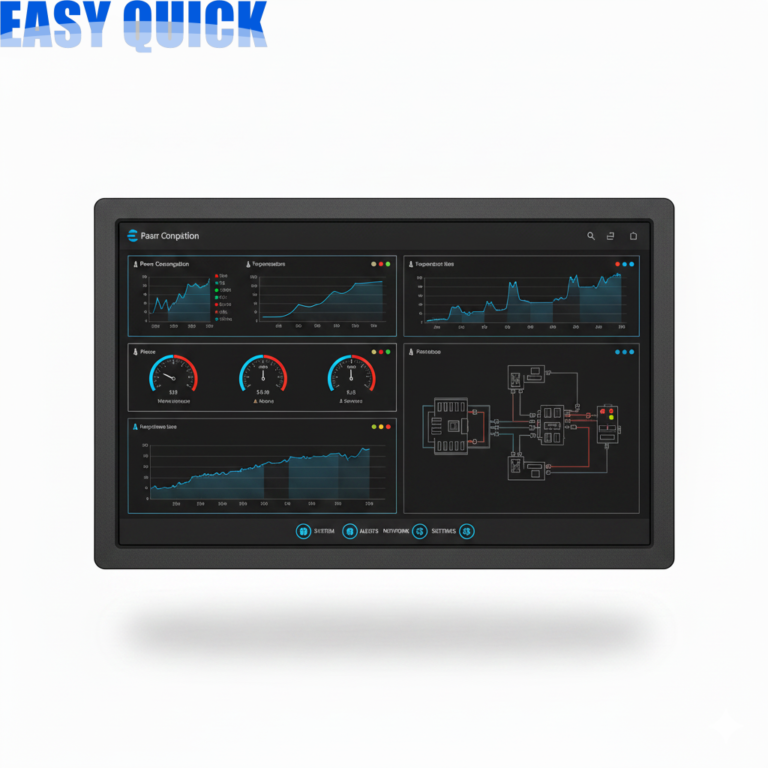

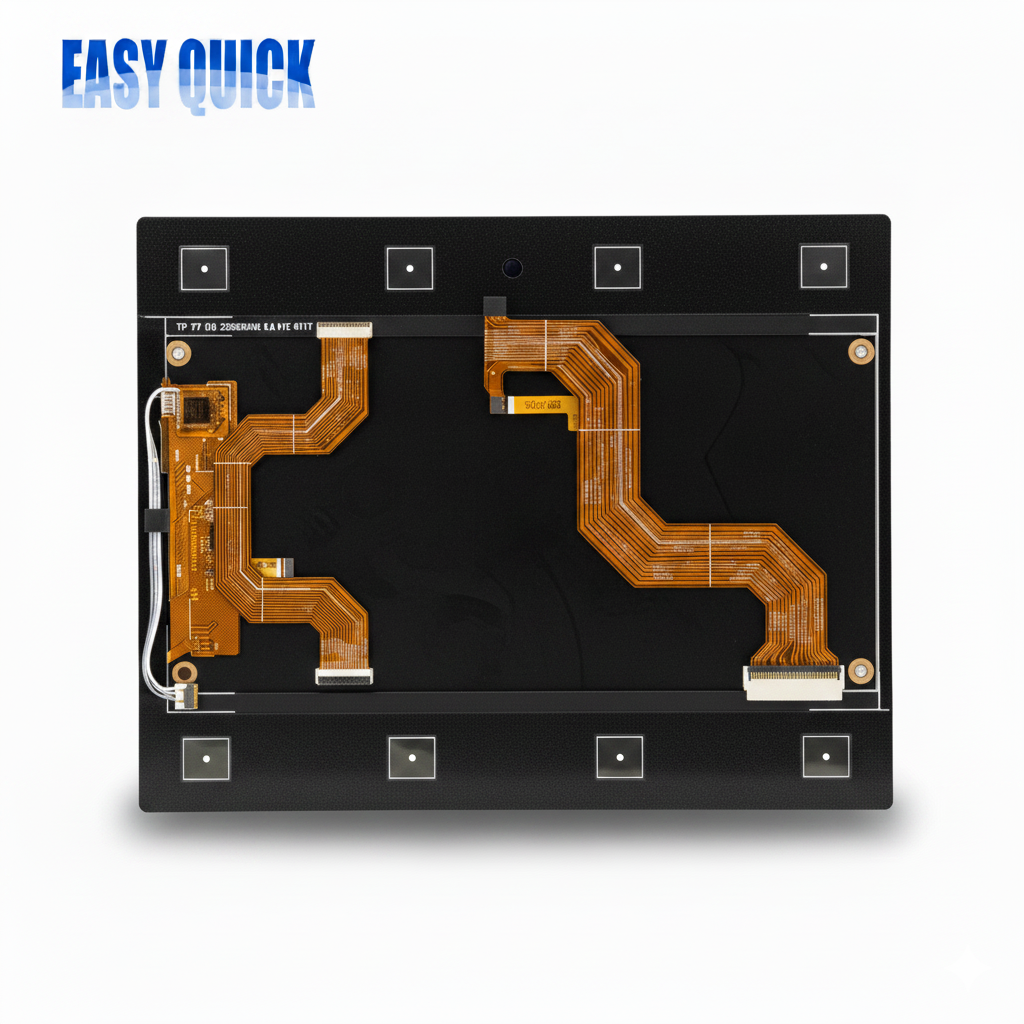

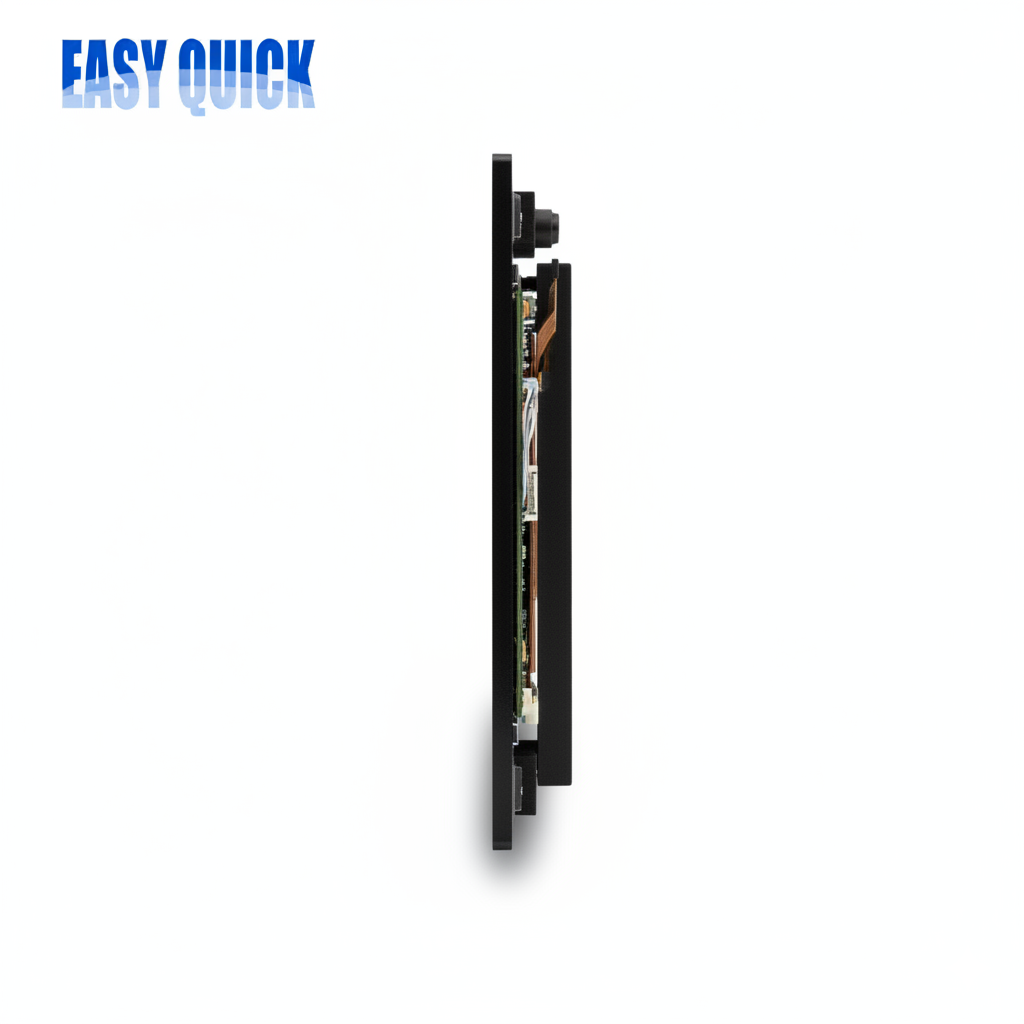

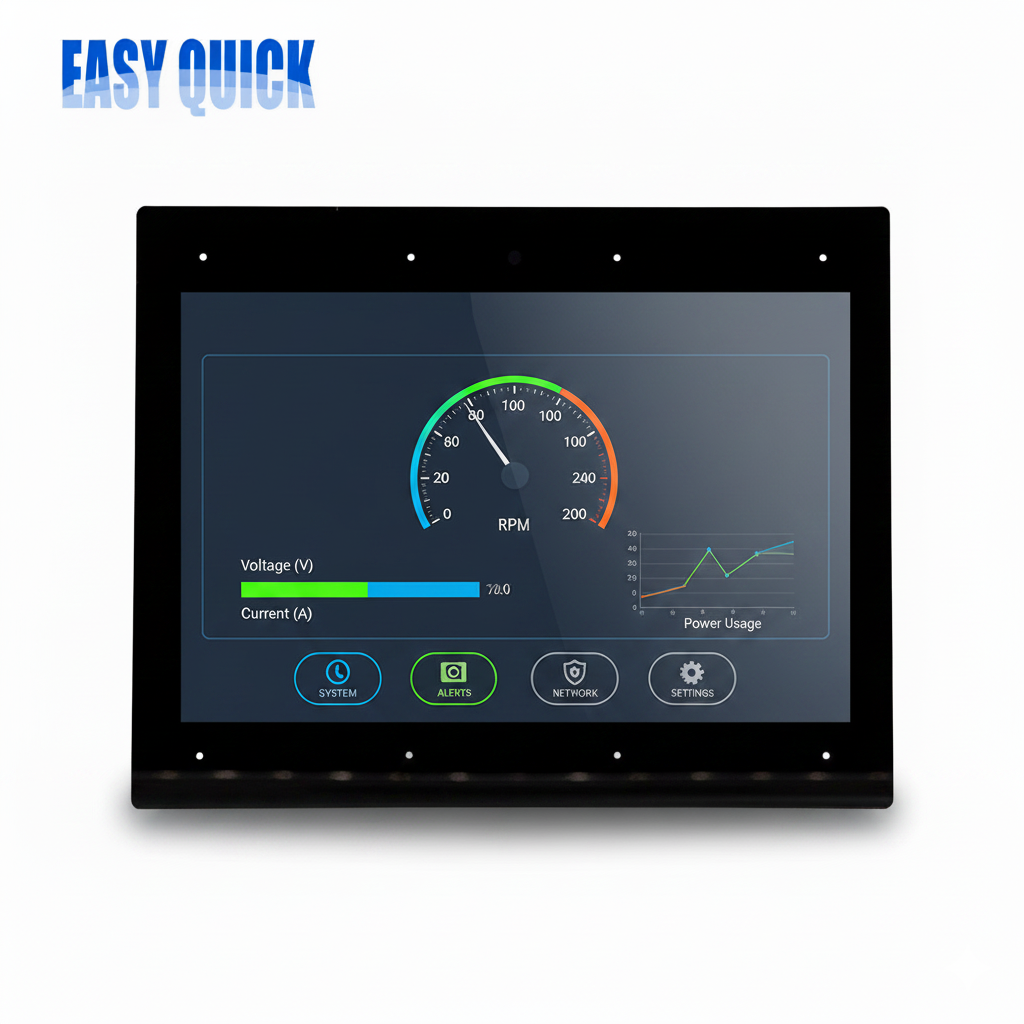

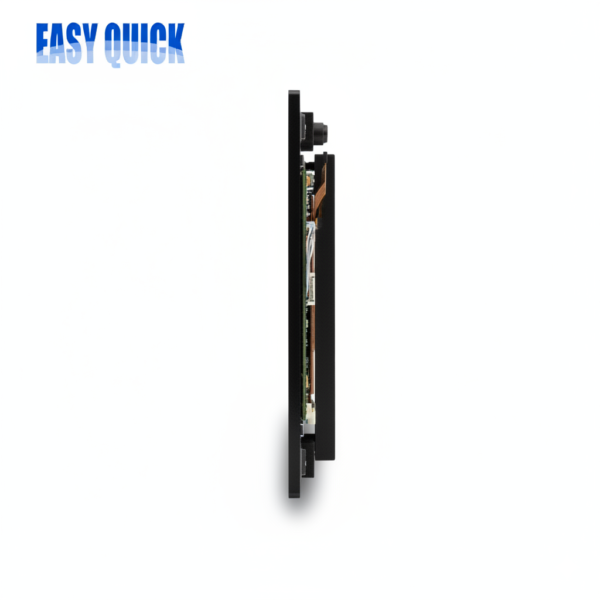

10.1 Inch 800×1280 Capacitive Touch Screen (CTP) LCD Display
This 10.1-inch LCD display comes with a resolution of 800×1280 and a capacitive touch panel (CTP), delivering responsive and smooth touch interaction. It provides excellent viewing performance with wide viewing angles and high sensitivity touch control. The module is ideal for modern smart devices and industrial applications requiring intuitive user interfaces and reliable performance.
Share：
Smart home systems
Industrial HMI terminals
Self-service kiosks
POS systems
Medical and healthcare devices
| Item | Specifications | Unit |
| Part No. | EQTA01BKI322P | Unit |
| Size | 10.1 | inch |
| Resolution | 800*1280 | – |
| Viewing Angle | Full | – |
| Active Area | 135.36 (H)x 216.58 (V) | mm |
| Outline Dimension(mm) | 162.50(W)×242.0(H)×4.74(D) | mm |
| Driver IC | ILI9881C | – |
| Touch Function | CTP | – |
| Brightness(Cd/m2) | 450 | Cd/m2 |
| Interface | MIPI | – |
| Storage Temp. | －20 TO 60 | ℃ |
| Operation Temp. | －10 TO 50 | ℃ |
