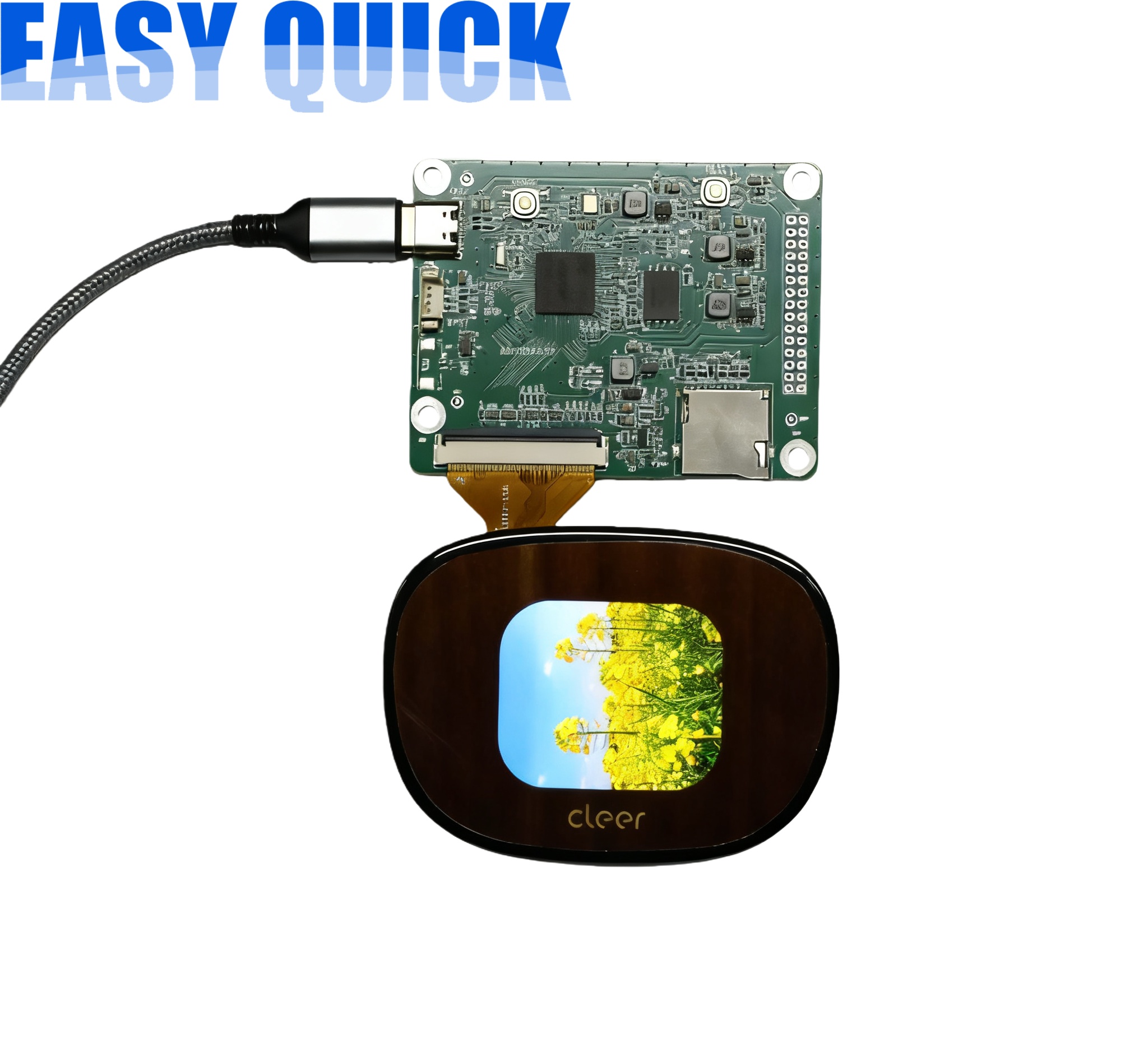

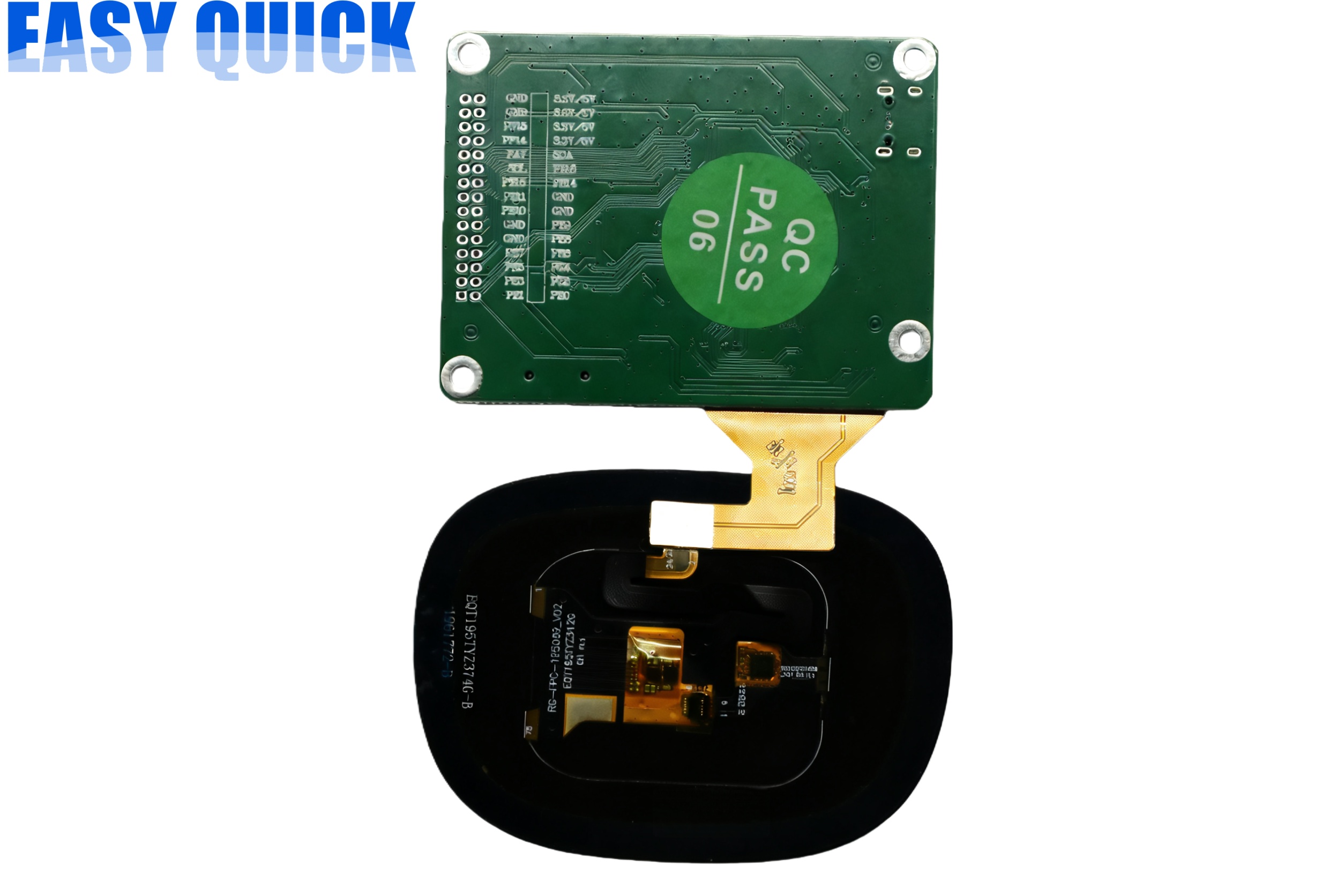

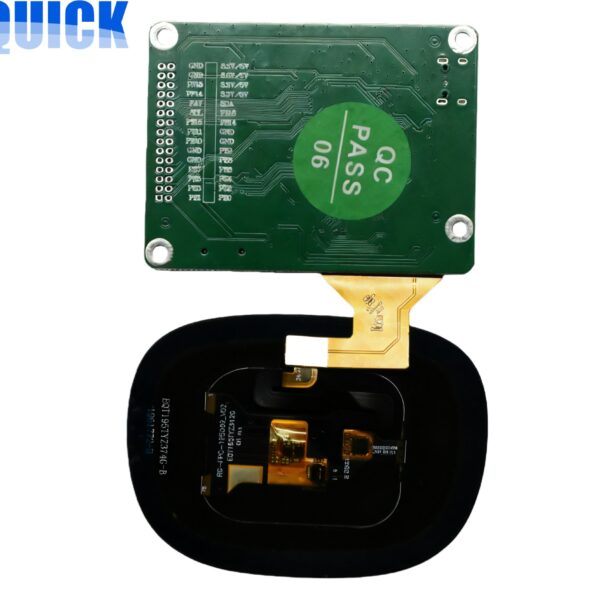

1.95-Inch High-Resolution OLED Display Module with Controller Board | 410×502 Panel
This 1.95-inch OLED display module delivers ultra-high contrast, vivid colors, and low power consumption. With a built-in controller board, it provides smooth refresh performance and is ideal for battery-powered applications. Designed for modern wearable tech and consumer electronics that require premium visual clarity.
Share：
Smartwatches and fitness trackers
Health monitoring devices
Smart accessories
Premium consumer electronics
Compact UI display modules
| Item | Specifications | Unit |
| Part No. | EQT195TYZ312B – PCBA monitor | Unit |

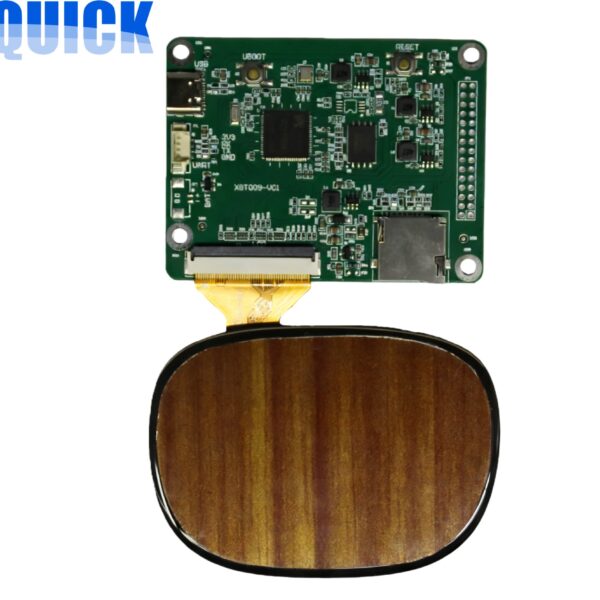

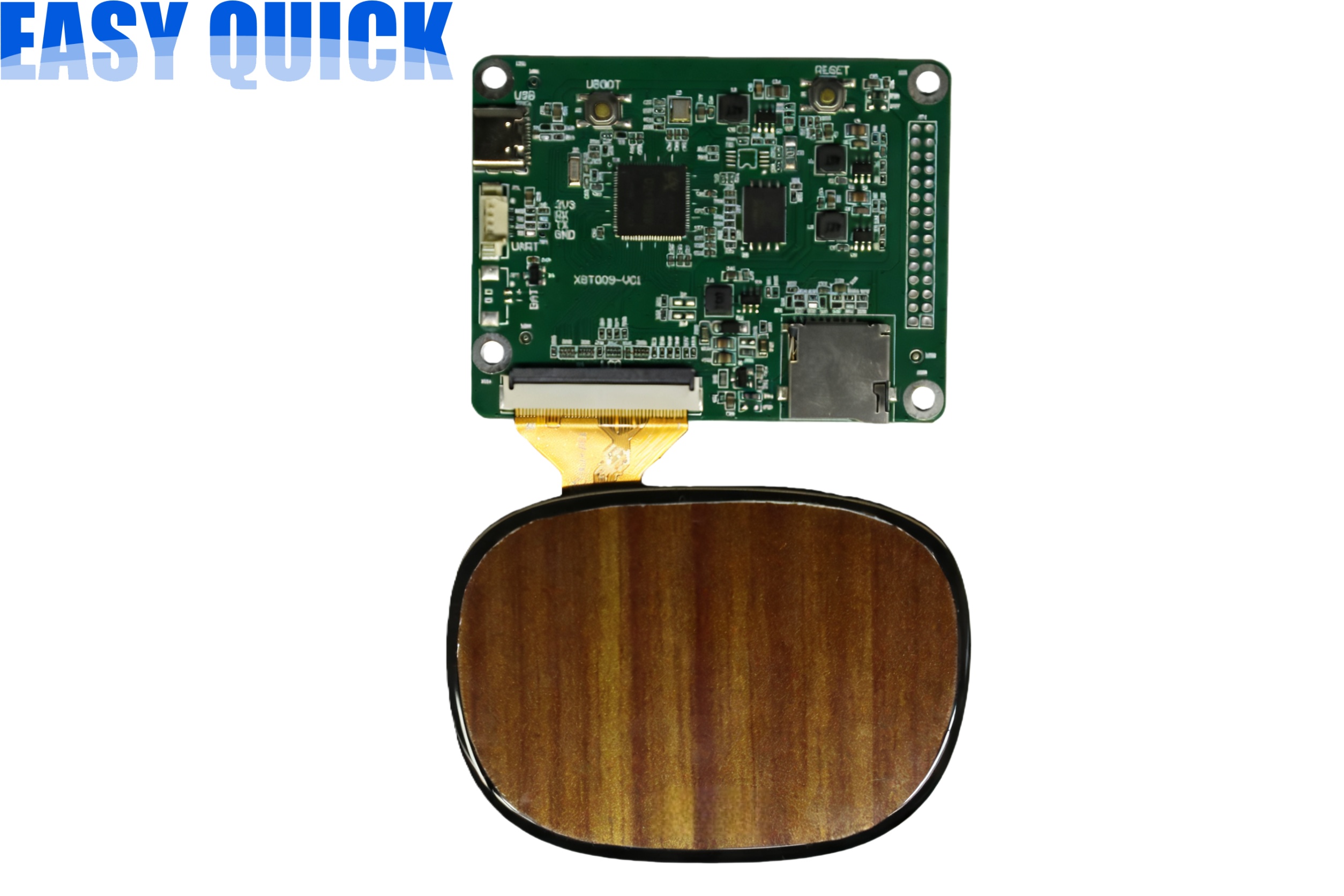

| PCBA input module | XBT009-V01 | |
| Size | 1.95 | inch |
| Resolution | 410×RGB×502 | – |
| Viewing Angle | Full | – |
| Active Area | 31.37(H)×38.40(V) | mm |
| Outline Dimension(mm) | 58.94(W)×86.14(H)×2.05(D) | mm |
| Driver IC | ST7789V2-G4 | – |
| Touch Function | WITHOUT | – |
| Brightness(Cd/m2) | 300 | Cd/m2 |
| Storage Temp. | －30 TO 70 | ℃ |
| Operation Temp. | －20 TO 60 | ℃ |
| InputVoltage | +5V(MicroUSB) | |
| GreenStandards | RoHSCompliant | |
| DisplayCommandSet | MIPI-2LANE、SPI、MCU8080 |
