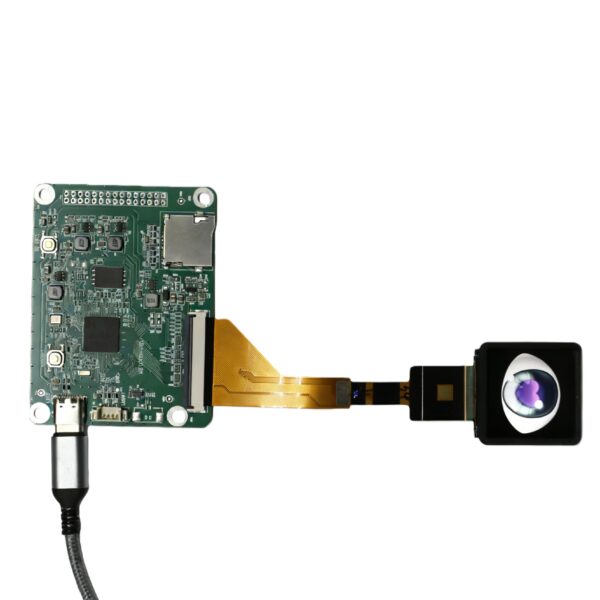

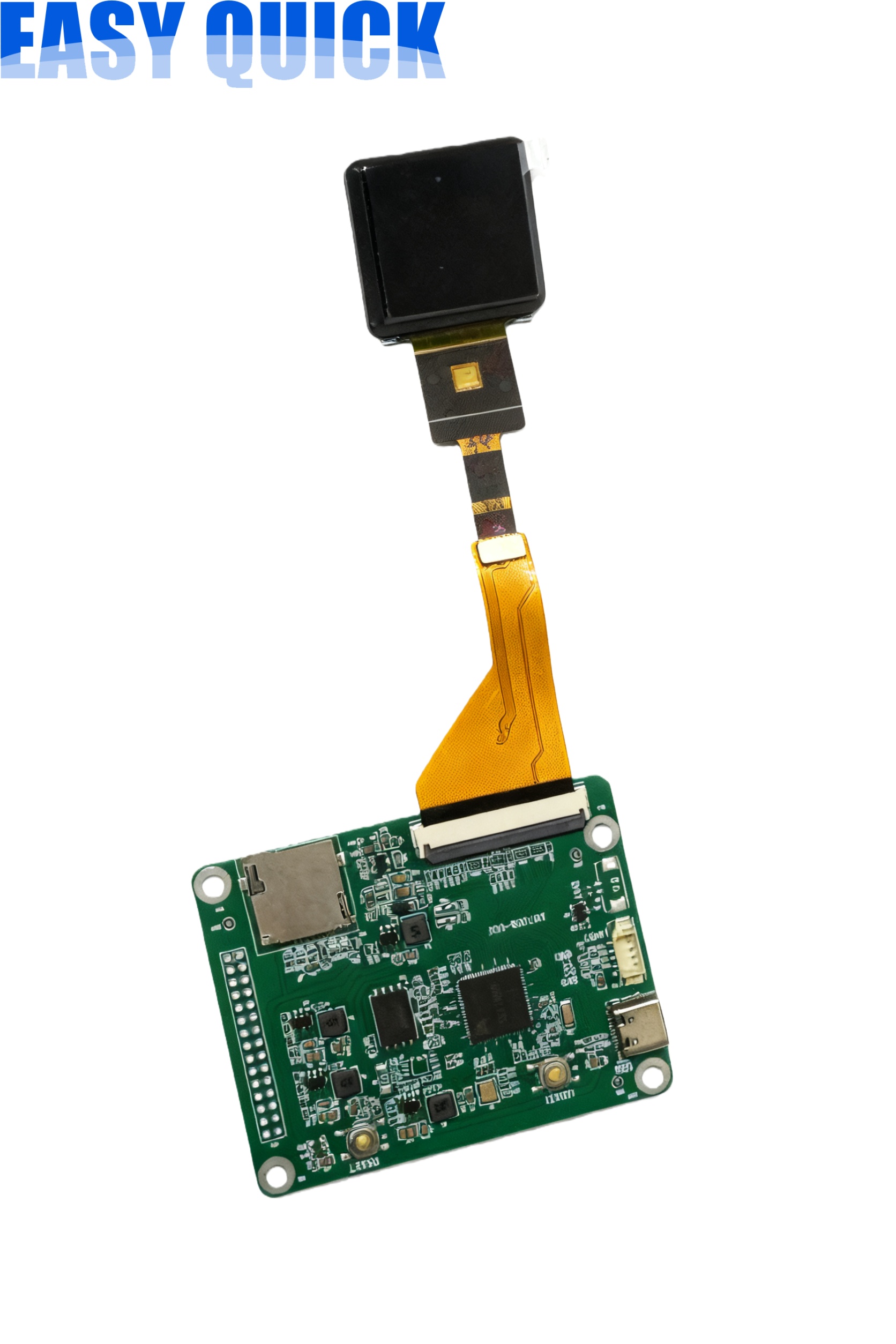

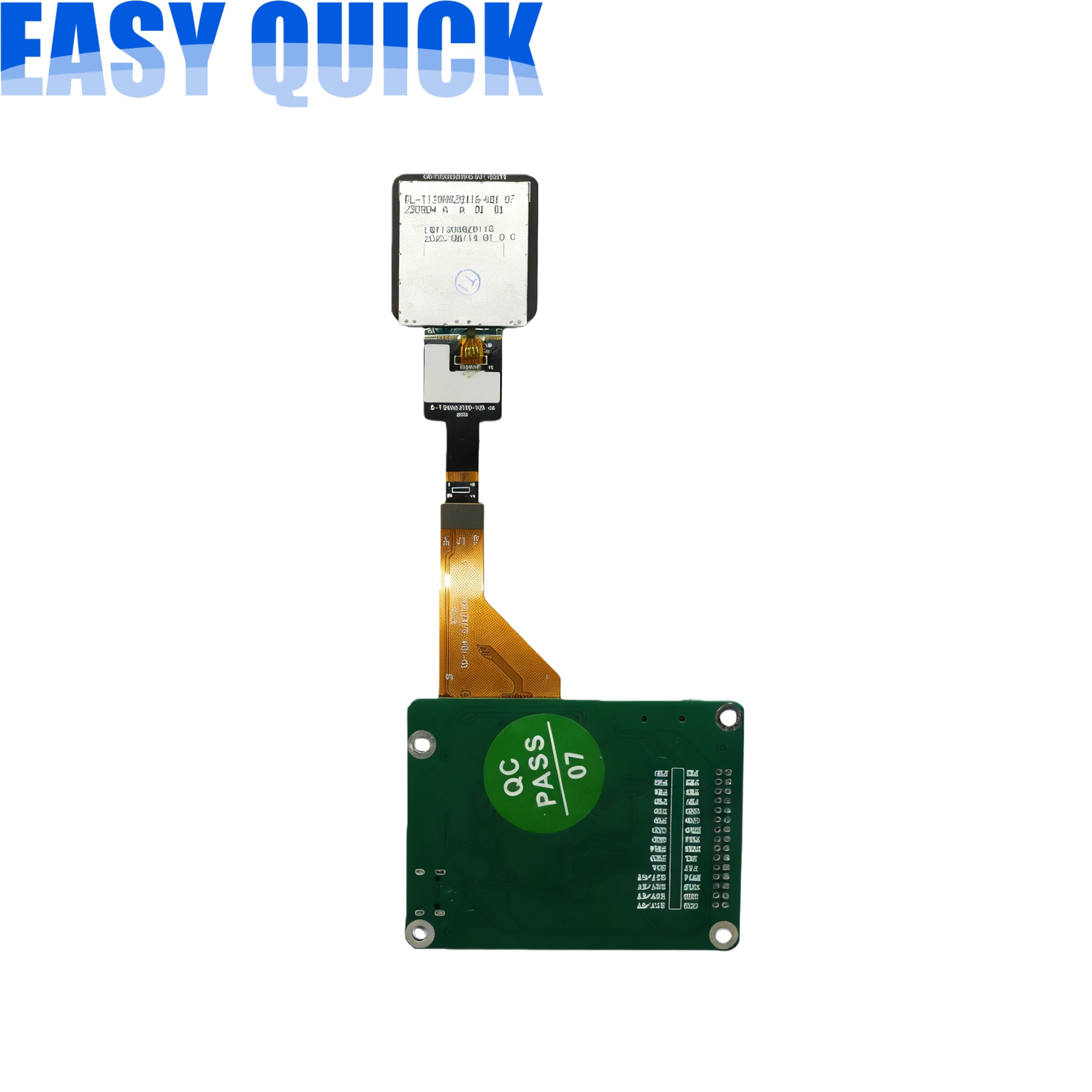

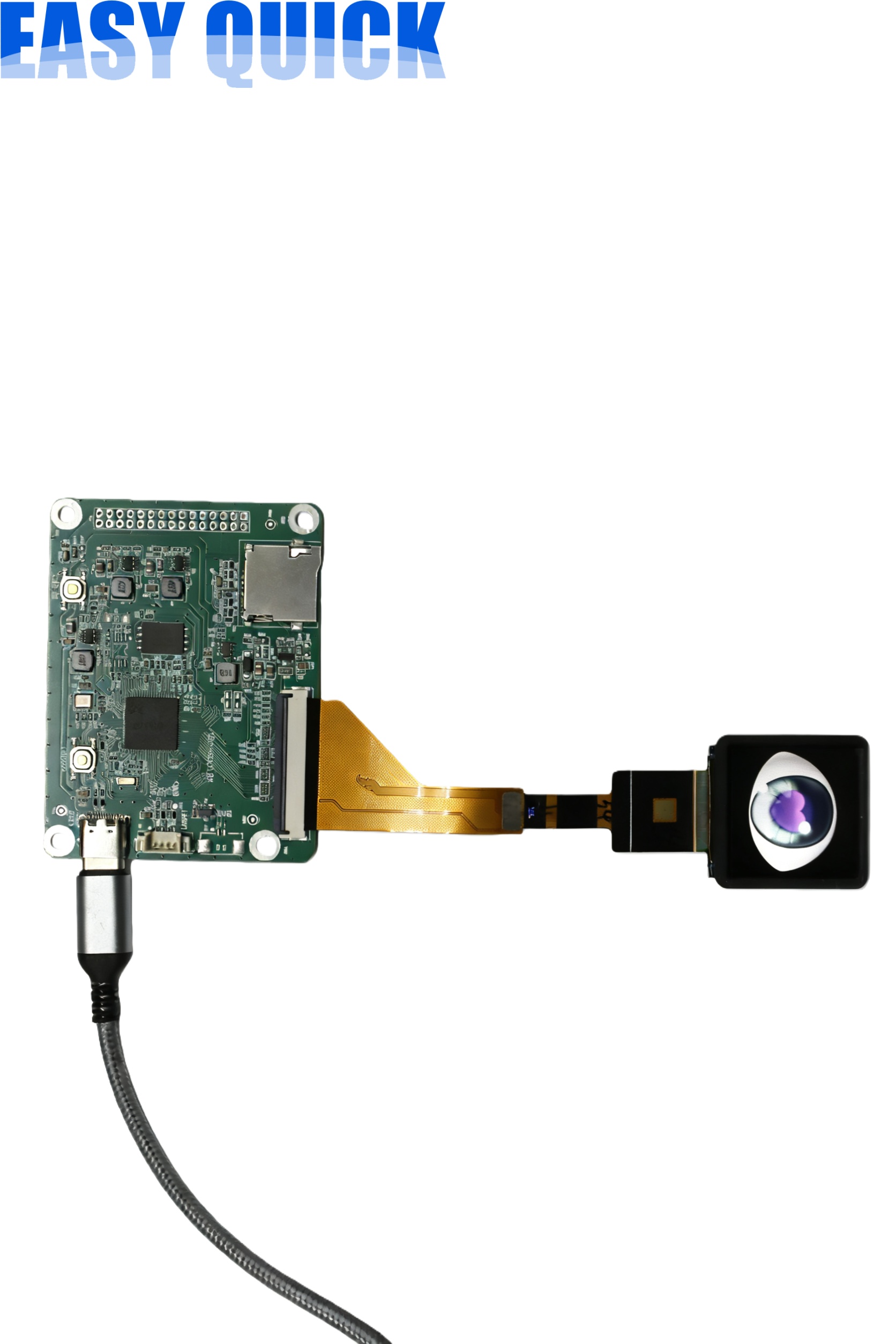

1.3-Inch 240×240 TFT LCD Module with Controller Board
This 1.3-inch 240×240 TFT LCD module features a compact square design, high brightness, and stable performance. Integrated with a controller board, it supports fast development and easy system integration. Ideal for wearable devices, handheld instruments, and compact smart terminals requiring clear and vibrant visual output.
Share：
Smart wearable devices
Portable medical instruments
Handheld controllers
Smart home panels
Industrial mini displays
| Part No. | EQT130HQZ011B – PCBA monitor | Unit |
| PCBA input module | XBT009-V01 | |
| Size | 1.3 | inch |
| Resolution | 240*240 | – |
| Viewing Angle | Full | – |
| Active Area | 23.4(H)×23.4(V) | mm |
| Outline Dimension(mm) | 30.00(W)×30.00(H)×4.09(D) | mm |
| Driver IC | ST7789V2-G4 | – |
| Touch Function | WITHOUT | – |
| Brightness(Cd/m2) | 500 | Cd/m2 |
| Storage Temp. | －30 TO 70 | ℃ |
| Operation Temp. | －20 TO 60 | ℃ |
| InputVoltage | +5V(MicroUSB) | |
| GreenStandards | RoHSCompliant | |
| DisplayCommandSet | MIPI-2LANE、SPI、MCU8080 |
