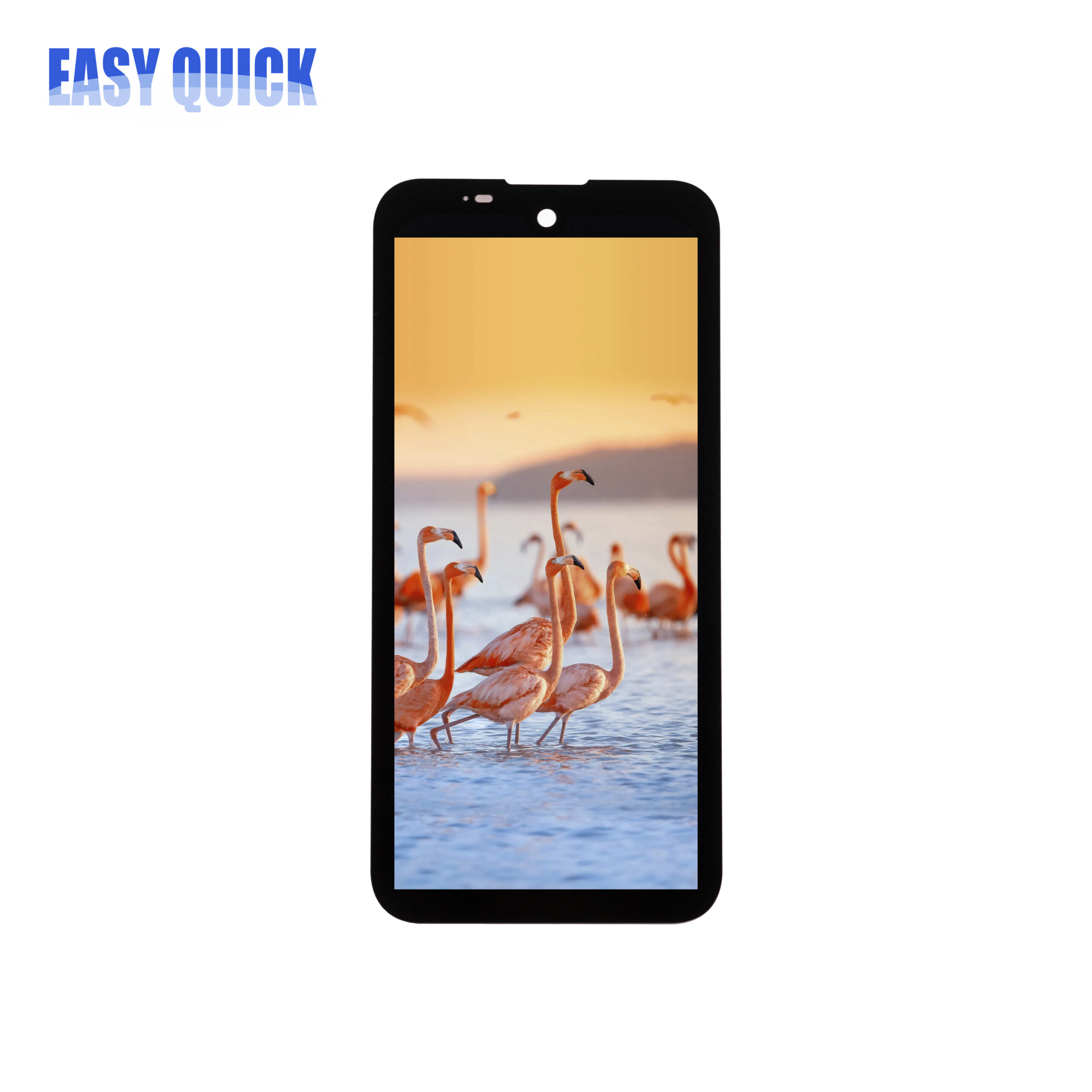

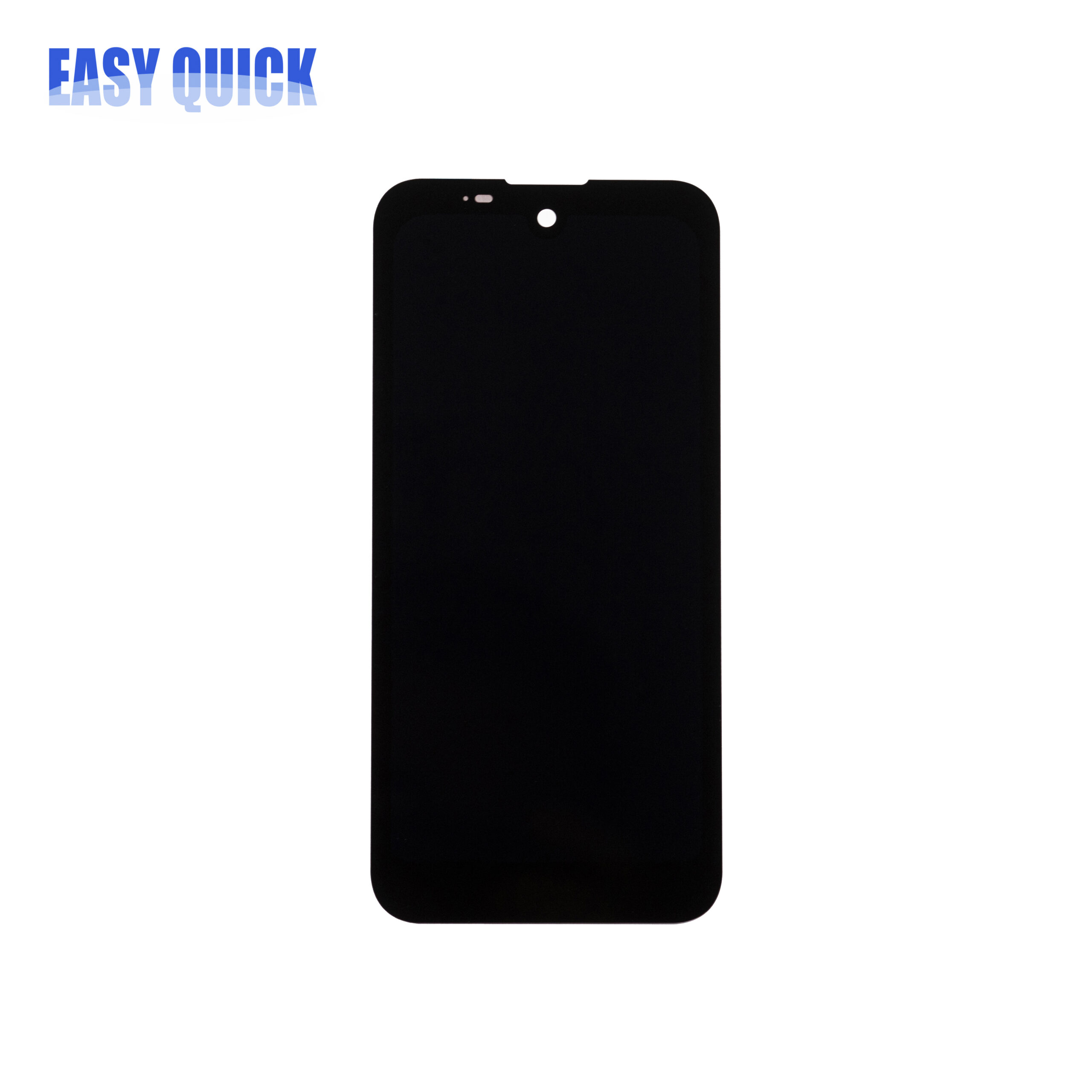

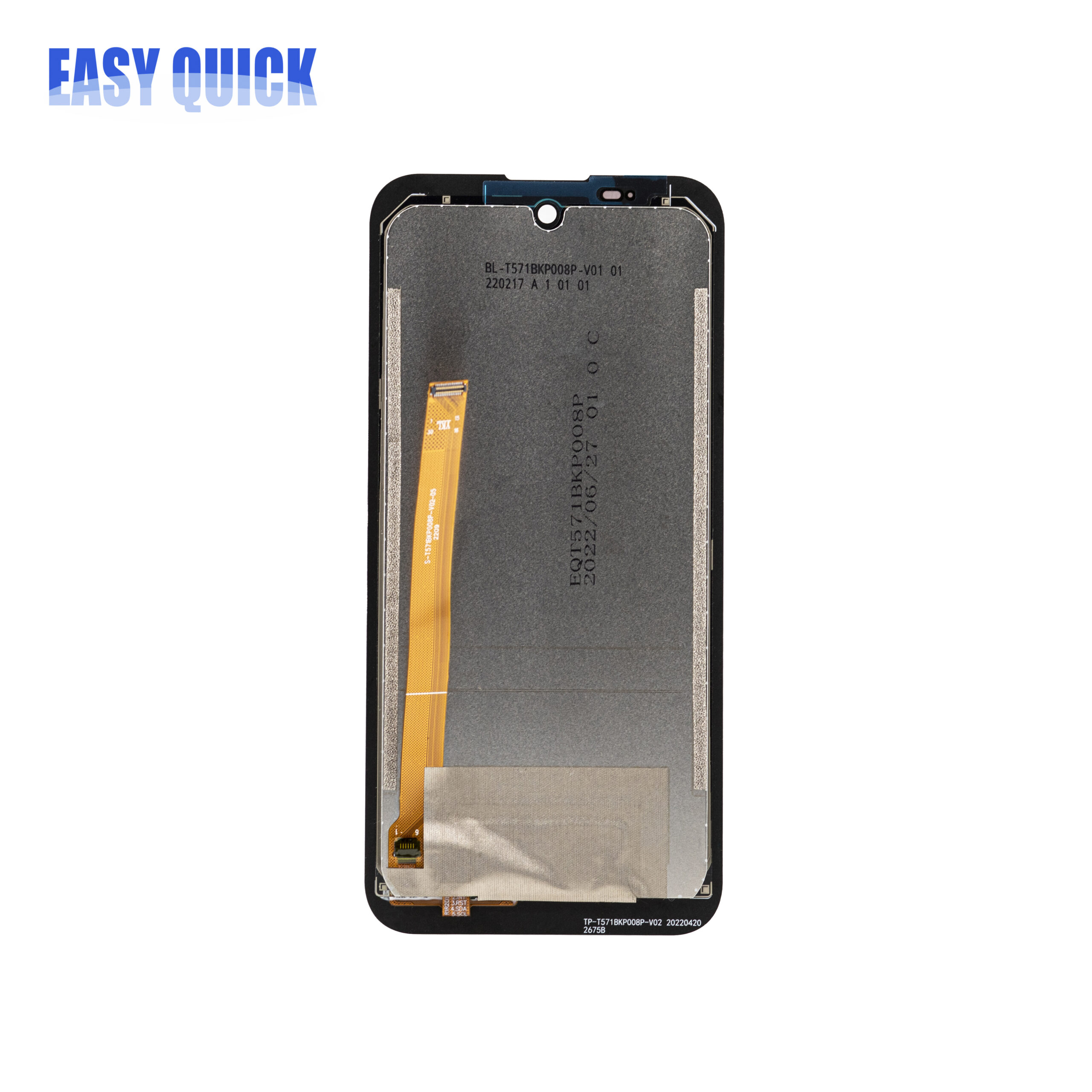

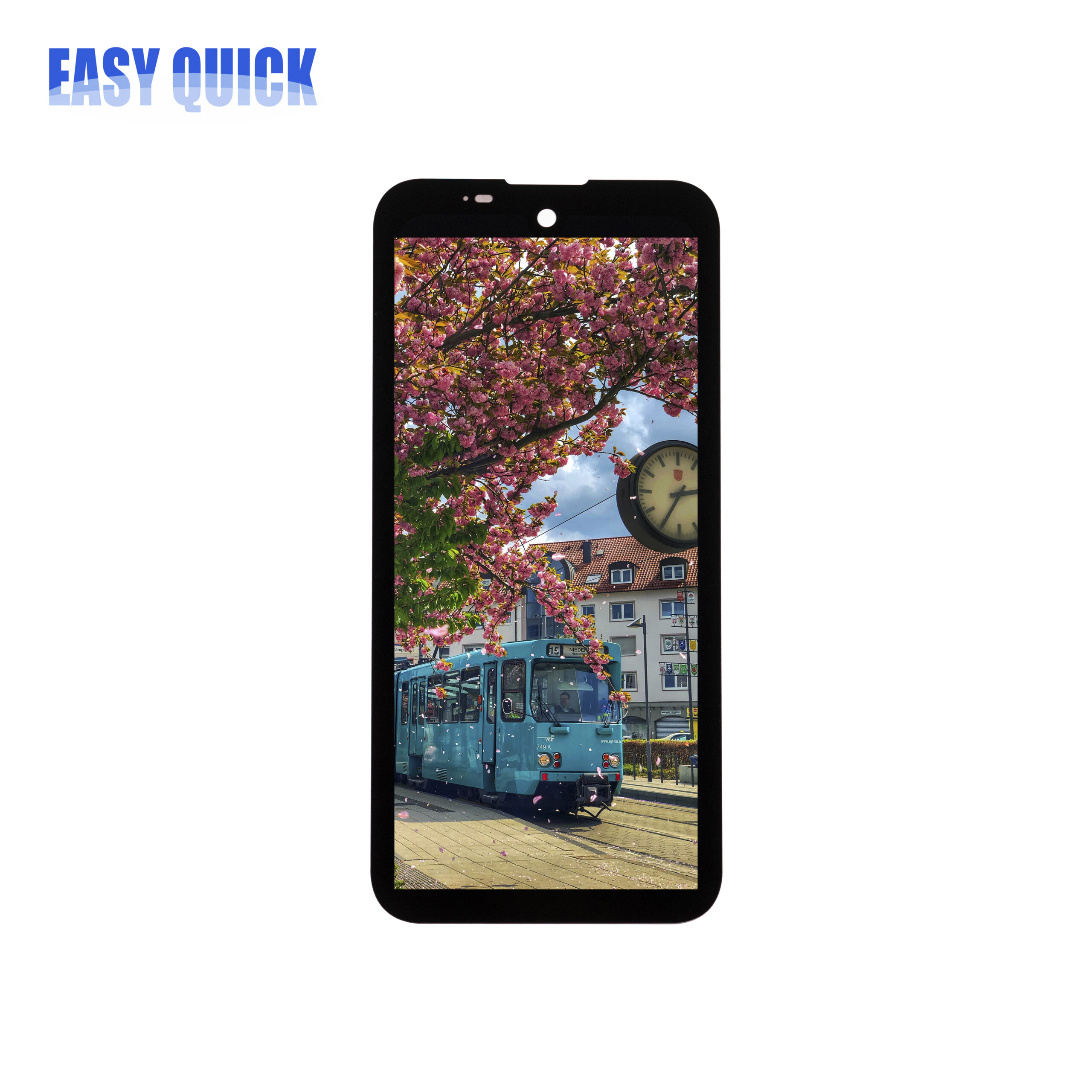

5.71 Inch TFT LCD Display 720×1520 HD Screen Module
The 5.71 inch TFT LCD display offers a 720×1520 high-resolution screen with excellent clarity, vivid colors, and wide viewing angles. This compact and slim LCD module is optimized for portable devices, providing smooth image rendering, low power consumption, and long-term reliability. Designed for flexible integration, it is suitable for a wide range of consumer electronics and customized applications.
Share：
Smartphones and feature phones
Smart wearable devices (larger screens)
Portable medical equipment
Handheld terminals and PDA devices
Smart home control panels
Consumer electronics requiring mid-size displays
| Spec | Item | Specifications | Unit |
| Part No. | EQT571BKP007P | – | |
| Size | 5.71 | inch | |
| Resolution | 720×1520 | – | |
| Viewing Angle | Full | – | |
| Active Area | 62.10(H)×131.10(V) | mm | |
| Outline Dimension(mm) | 70.86(H)×151.06(W)×3.06(D) | mm | |
| Driver IC | XM92160(TFT) CHSC5448A(CTP) |
– | |
| Touch Function | CTP | – | |
| Brightness(Cd/m2) | 530 | Cd/m2 | |
| Interface | MIPI | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
