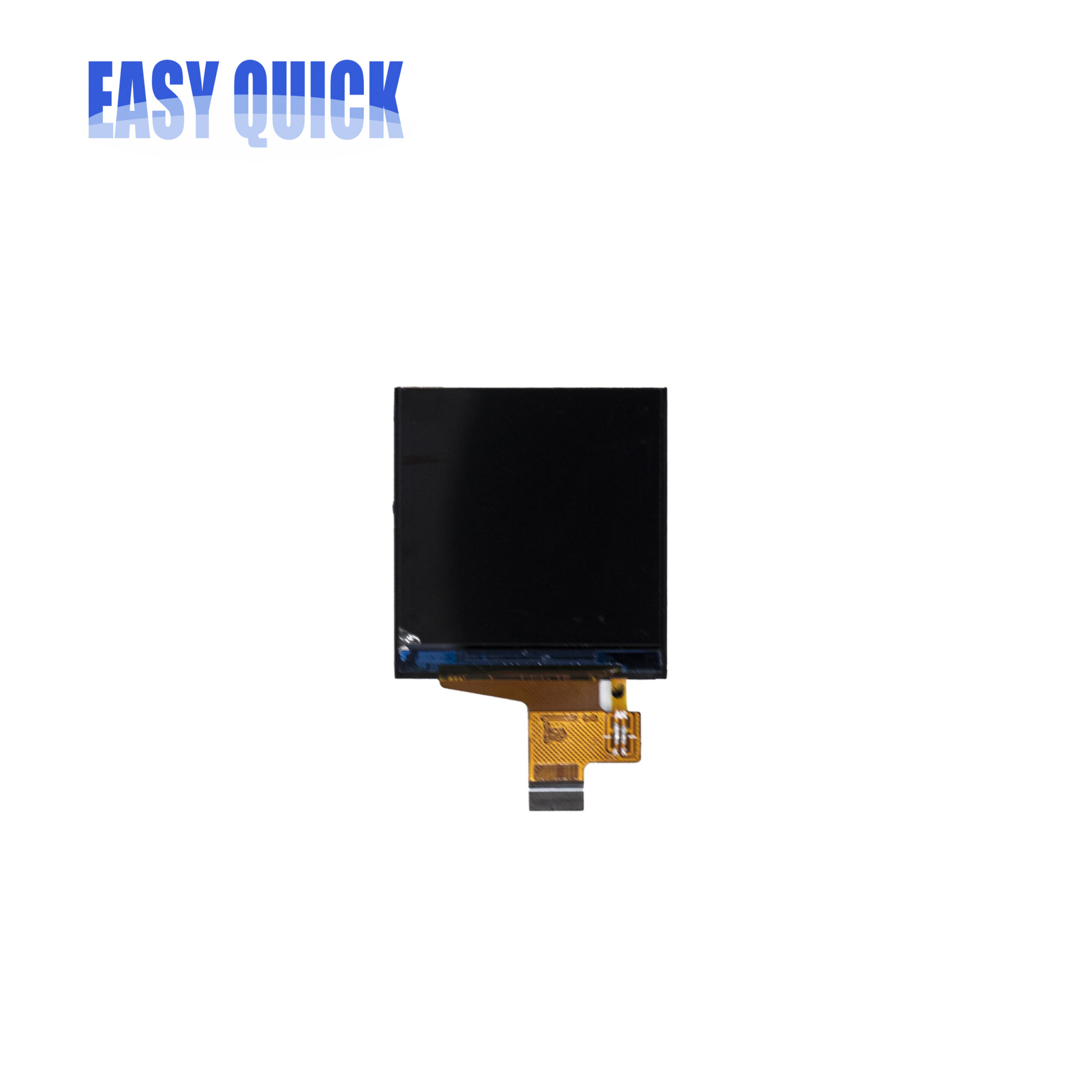

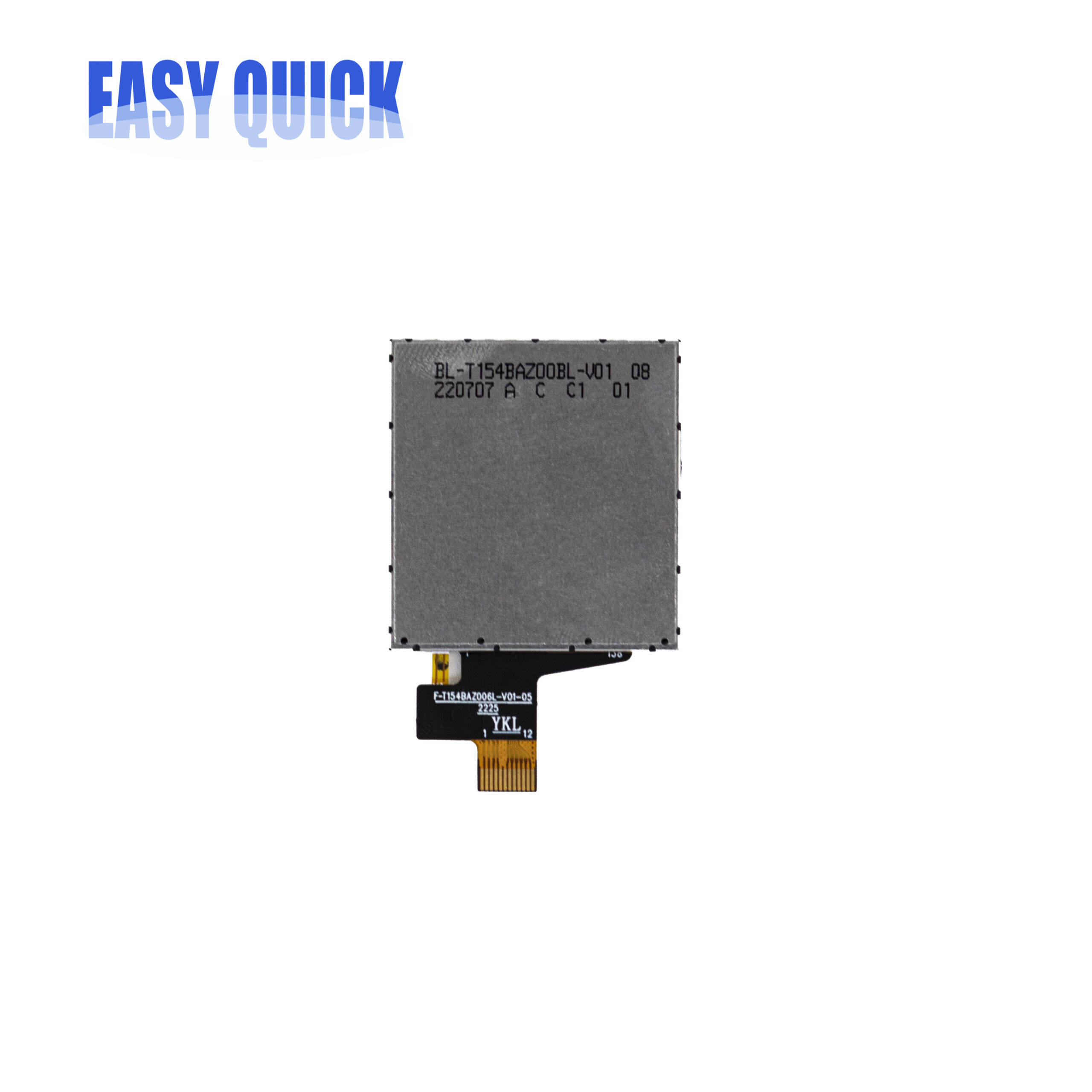

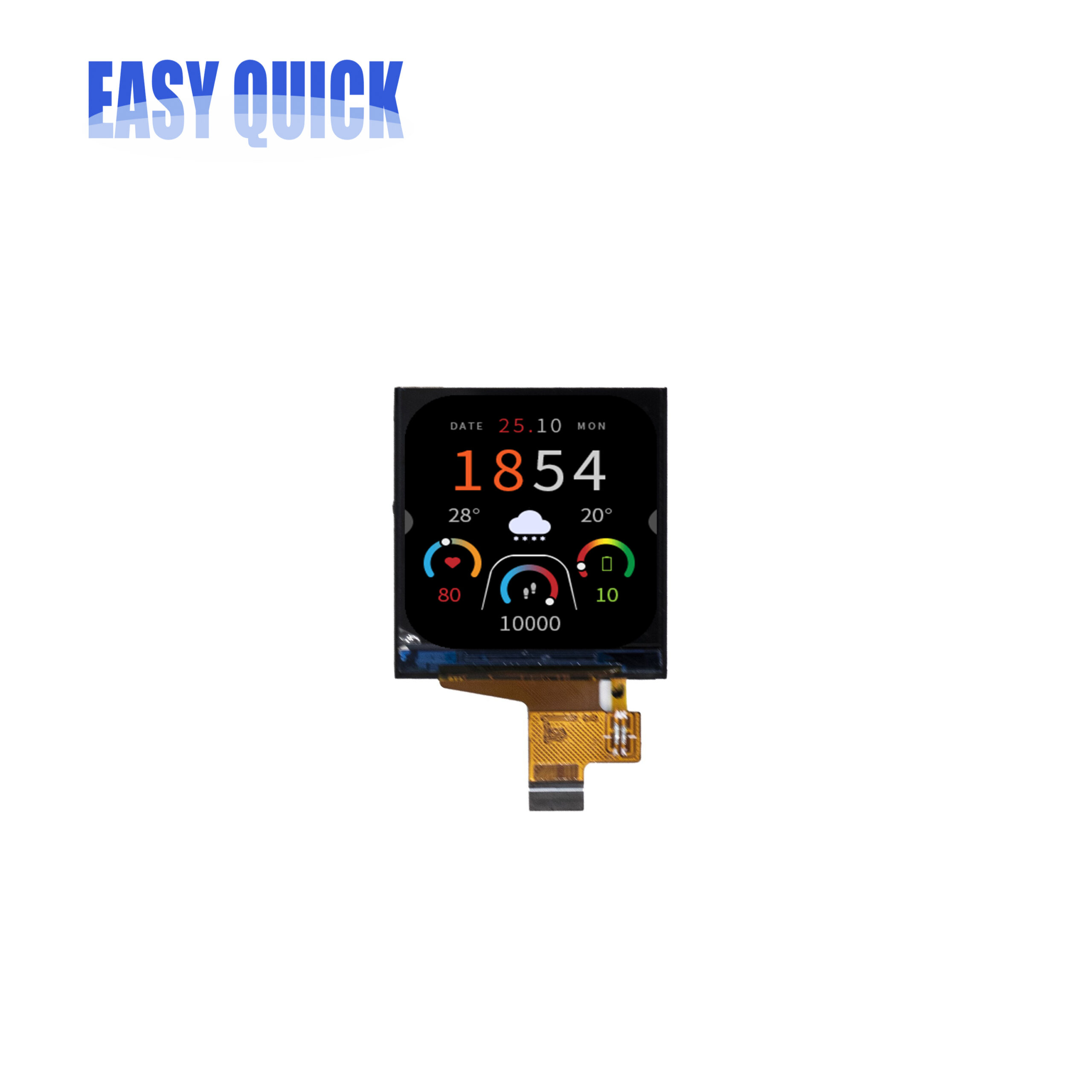

1.4-Inch TFT LCD Display 240×240|TFT Small/Tiny LCD Display
The 1.4-inch TFT LCD display features a sharp 240×240 resolution in a space-efficient square format, offering excellent color reproduction and wide viewing angles for enhanced user experience. Its slightly larger display area compared to standard compact screens makes it ideal for smart and portable devices requiring improved readability without sacrificing size efficiency. The module supports various interface configurations and can be customized to meet specific functional and structural requirements, including integration of touch panels, flexible FPC design, and adjustable brightness levels.
Share：
Smartwatches and wearable devices
Compact smart home controllers
Handheld diagnostic and testing tools
Industrial control systems
Smart meters and utility terminals
Health monitoring and medical equipment
IoT edge devices and data loggers
Mini consumer electronics
Fitness trackers and personal health devices

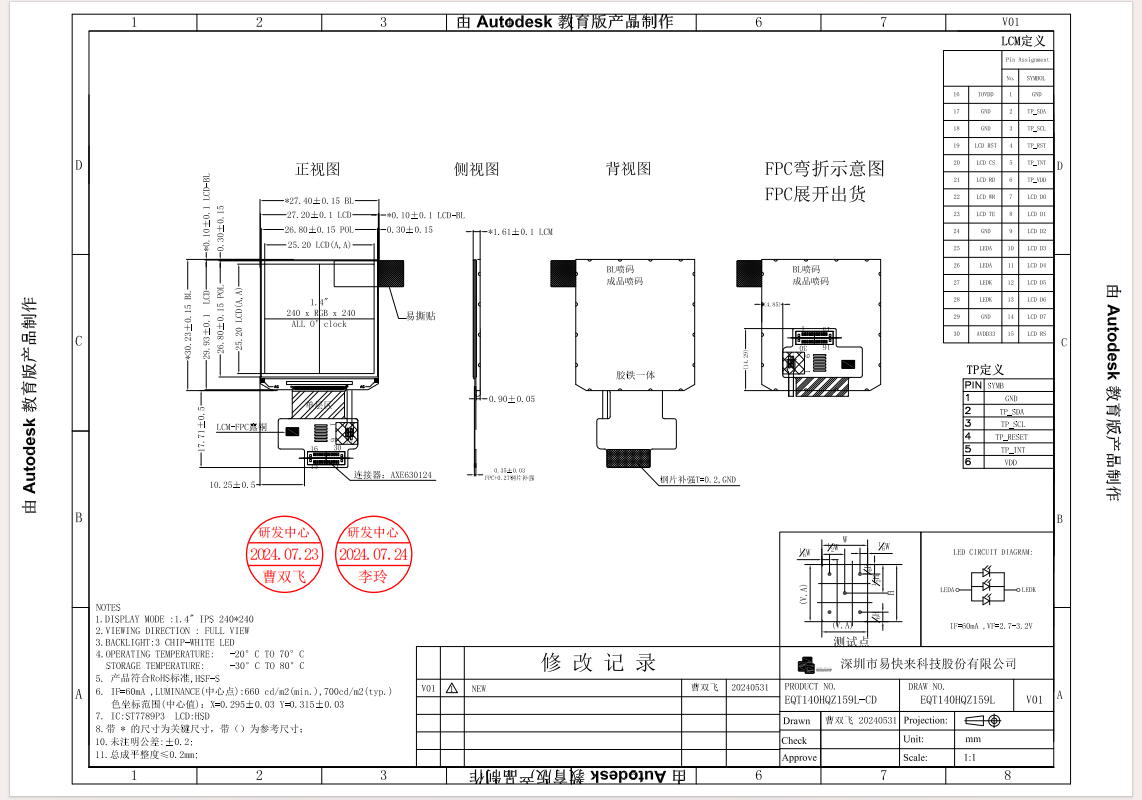

| Spec | Item | Specifications | Unit |
| Part No. | EQT140HQZ159L | – | |
| Size | 1.4 | inch | |
| Resolution | 240*240 | – | |
| Viewing Angle | Full | – | |
| Active Area | 25.2(H)×25.2(V) | mm | |
| Outline Dimension(mm) | 27.4(W)×30.23(H)×1.61(D) | mm | |
| Driver IC | ST7789P3 | – | |
| Touch Function | TP | – | |
| Brightness(Cd/m2) | 700 | Cd/m2 | |
| Interface | SPI | – | |
| Storage Temp. | －30 TO 70 | ℃ | |
| Operation Temp. | －20 TO 60 | ℃ |
